SPECIFICATIONS

Brand Name: SHUAICHI

Certification: CE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: for RC Vehicle Model Airplane

Origin: Mainland China

RC Parts & Accs: ESC

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: Length 25*Width 14*Height 6MM

Technical parameters: KV1100

Tool Supplies: Assembled class

Upgrade Parts/Accessories: 3S Brushed ESC

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

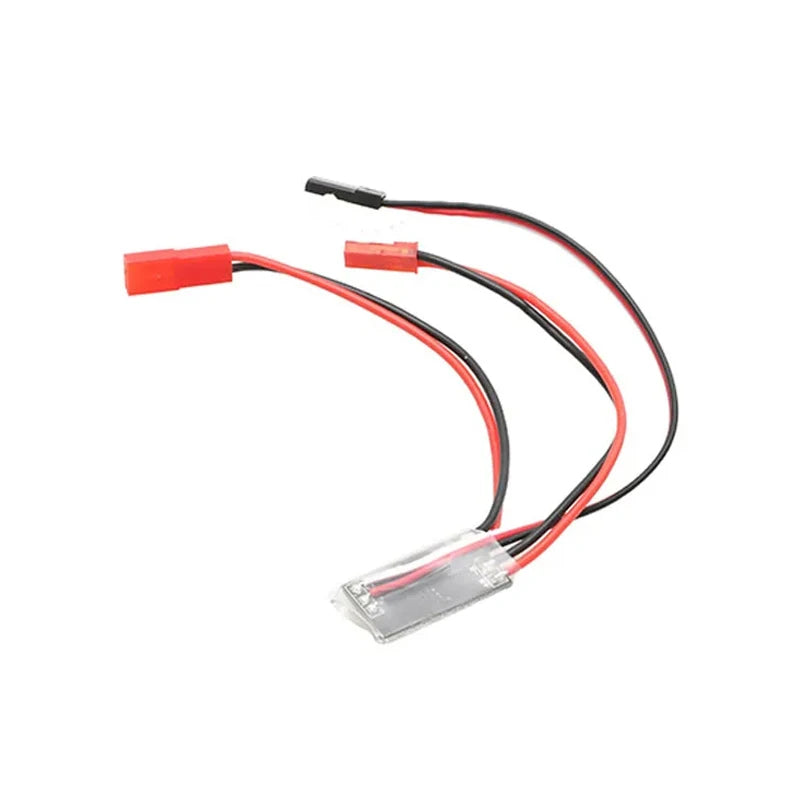

2PCS 3.2V-12.6V 1S-3S Brushed ESC 10A Dual-way with/without Brake 5V 1A BEC Motor Speed Controller for RC Vehicle Model Airplane

Specification:

-Voltage: 3.2V-12.6V 1S-3S lithium battery 3-9 cell NiMH battery

-Size: Length 25*Width 14*Height 6MM

-BEC is 5V 1A (2-3S lithium battery or 5-9 cell NiMH batteries)

-With indication, LED, etc. change with throttle size

Description:

1. Dual-way ESC with brake, the handle is up, the motor is rotating forward, if the car wants to brake, turn the handle to the reverse position, then the motor does not move and is in the braking state. If you want to move forward or backward, after the handle return to the middle, operating forward or backward.

2. Dual-way ESC without brake, the handle is up, the motor is rotating forward, the handle is back to the middle, stop at the natural speed. The handle is down, the motor reverses, the handle returns to the middle, stop at the natural speed. When the vehicle or ship is in the forward state, turn the handle down and ESC reverse. If want to stop, when the motor is just to be reversed,handle back to the middle, the vehicle and ship stop.

3. Unidirectional version for aircraft: generally used for fixed wings or multi axis airplane, it can control the rotation speed of the motor in one direction, but cannot be reversed. The joystick is in the low position, and the motor stops rotating. In the high position, the motor speed is the highest.

Note: size is manual measurement, there are exist errors.

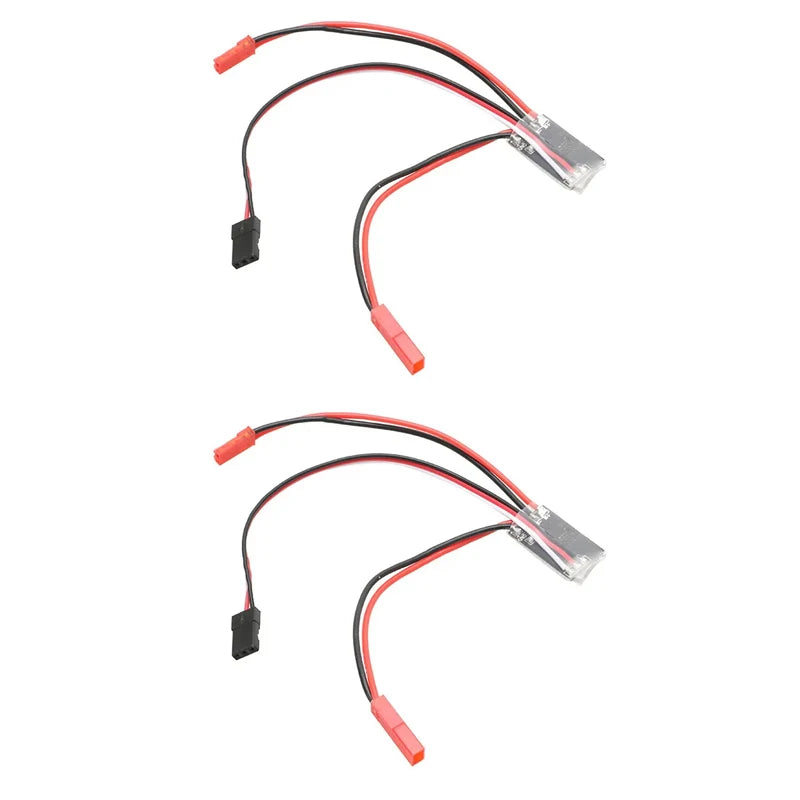

Package include:

2pcs x ESC
