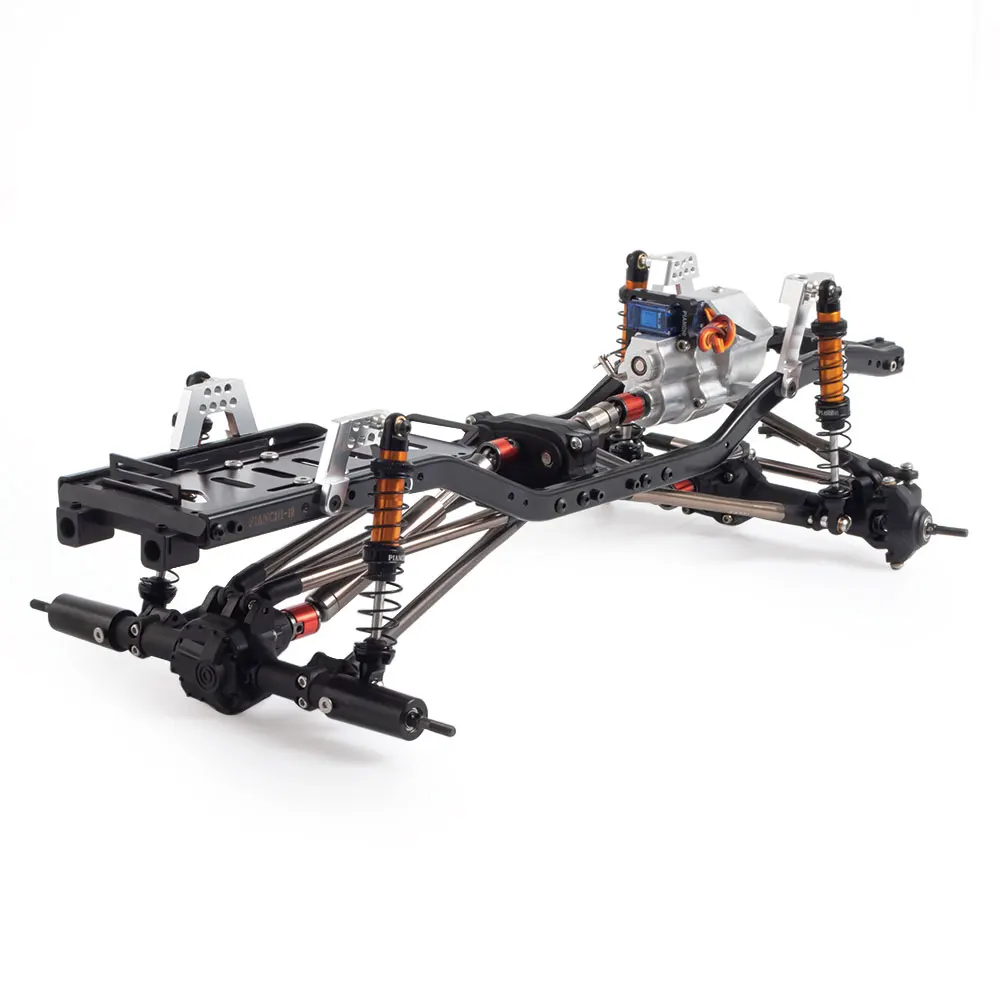

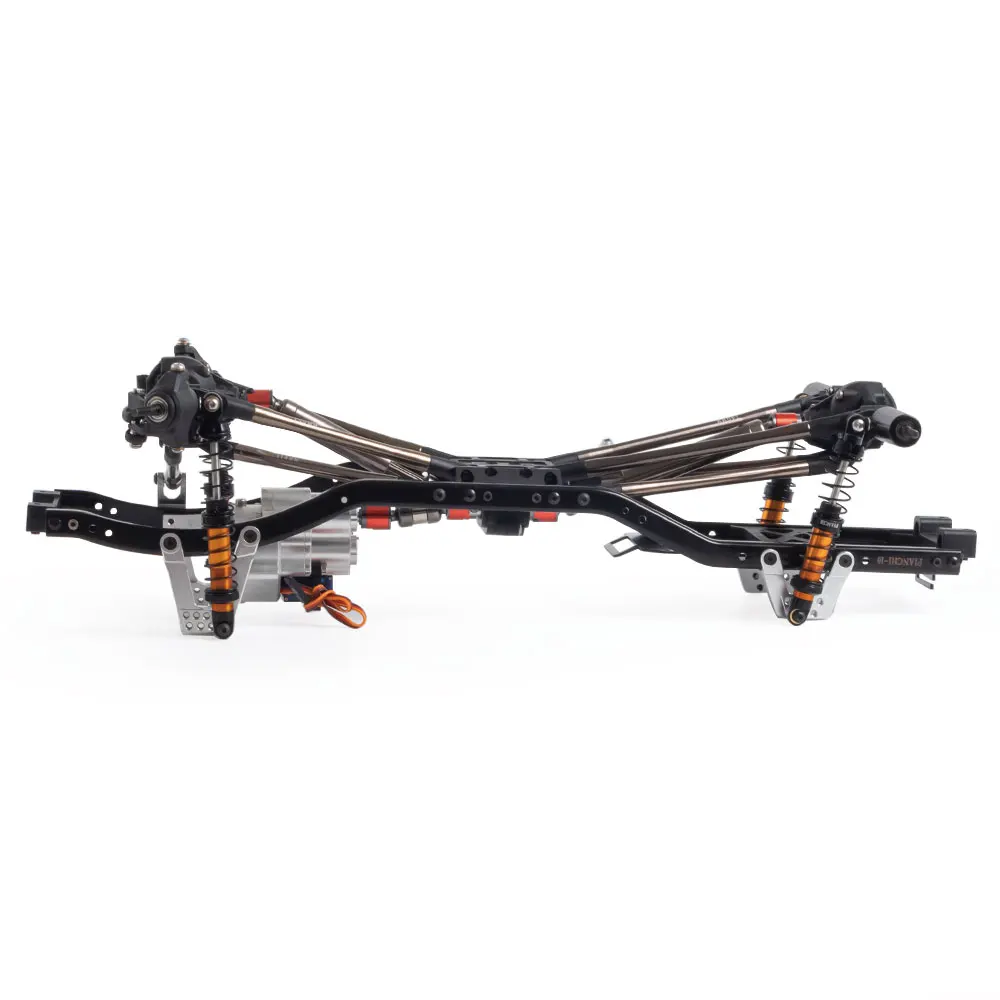

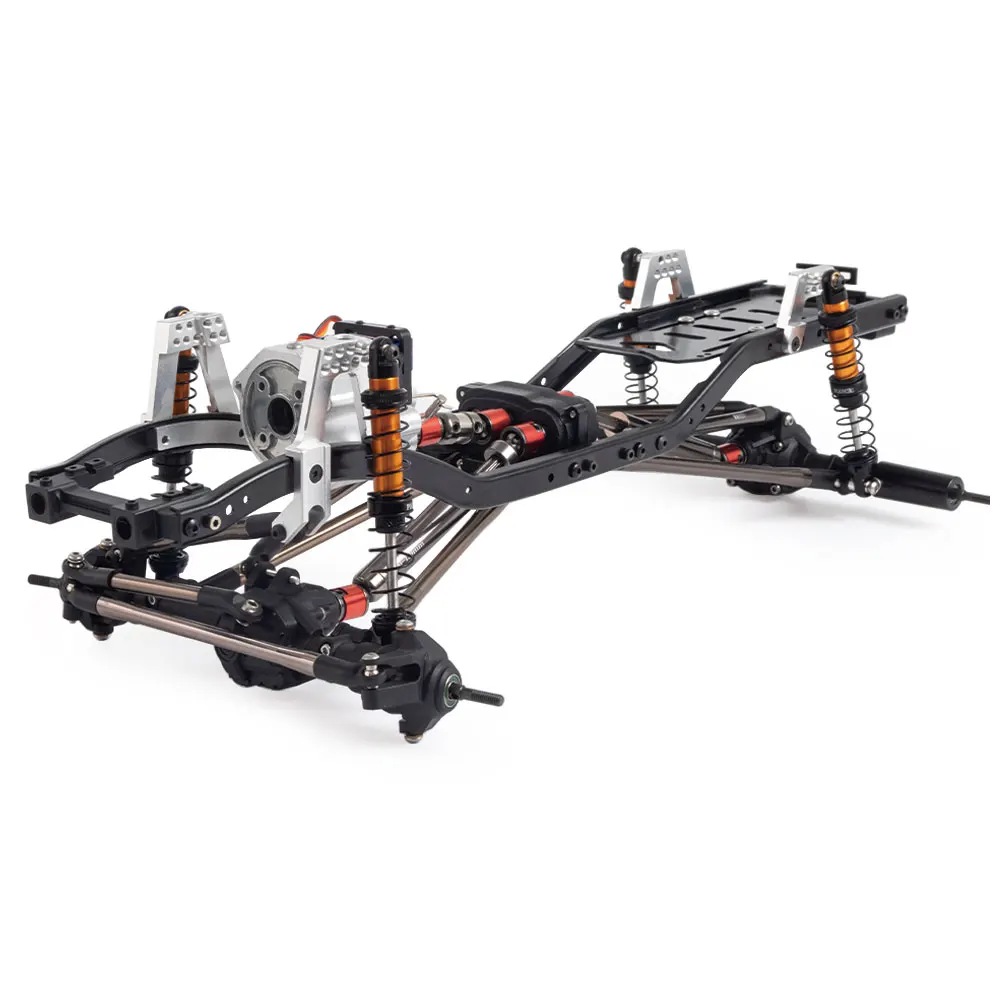

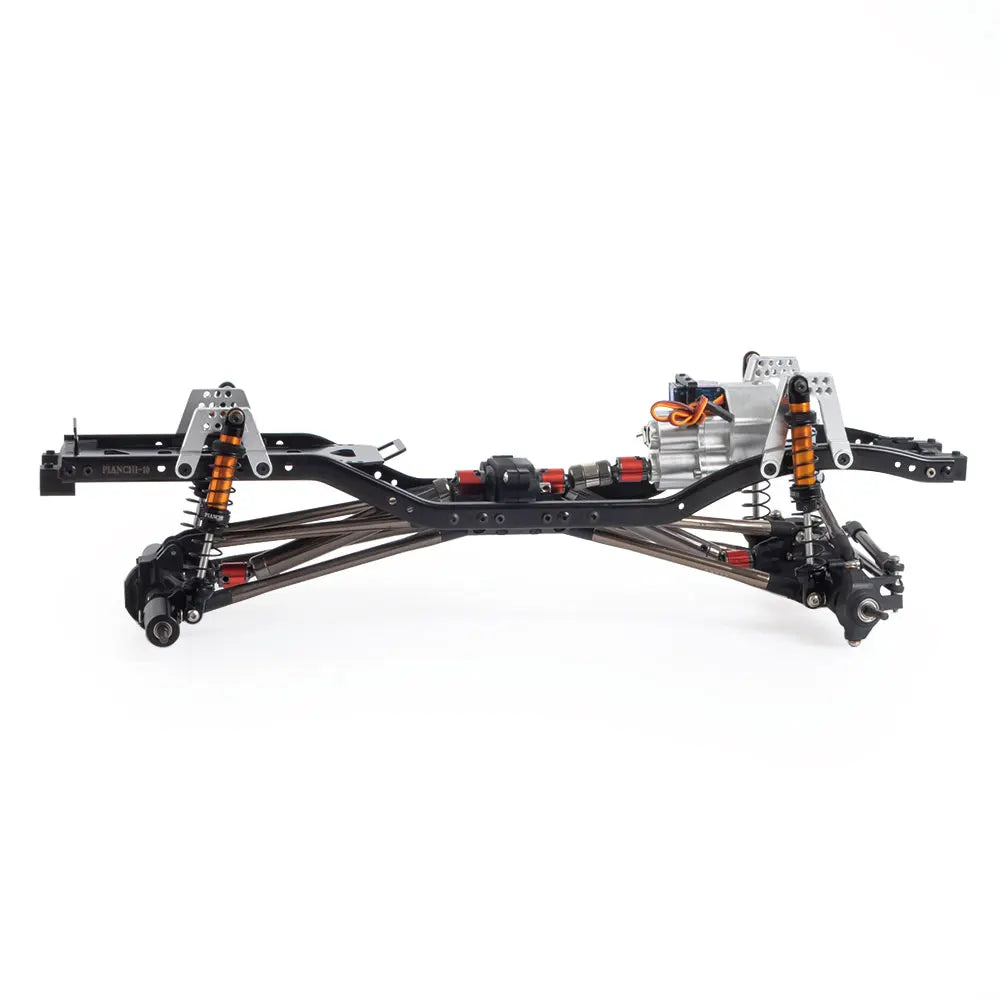

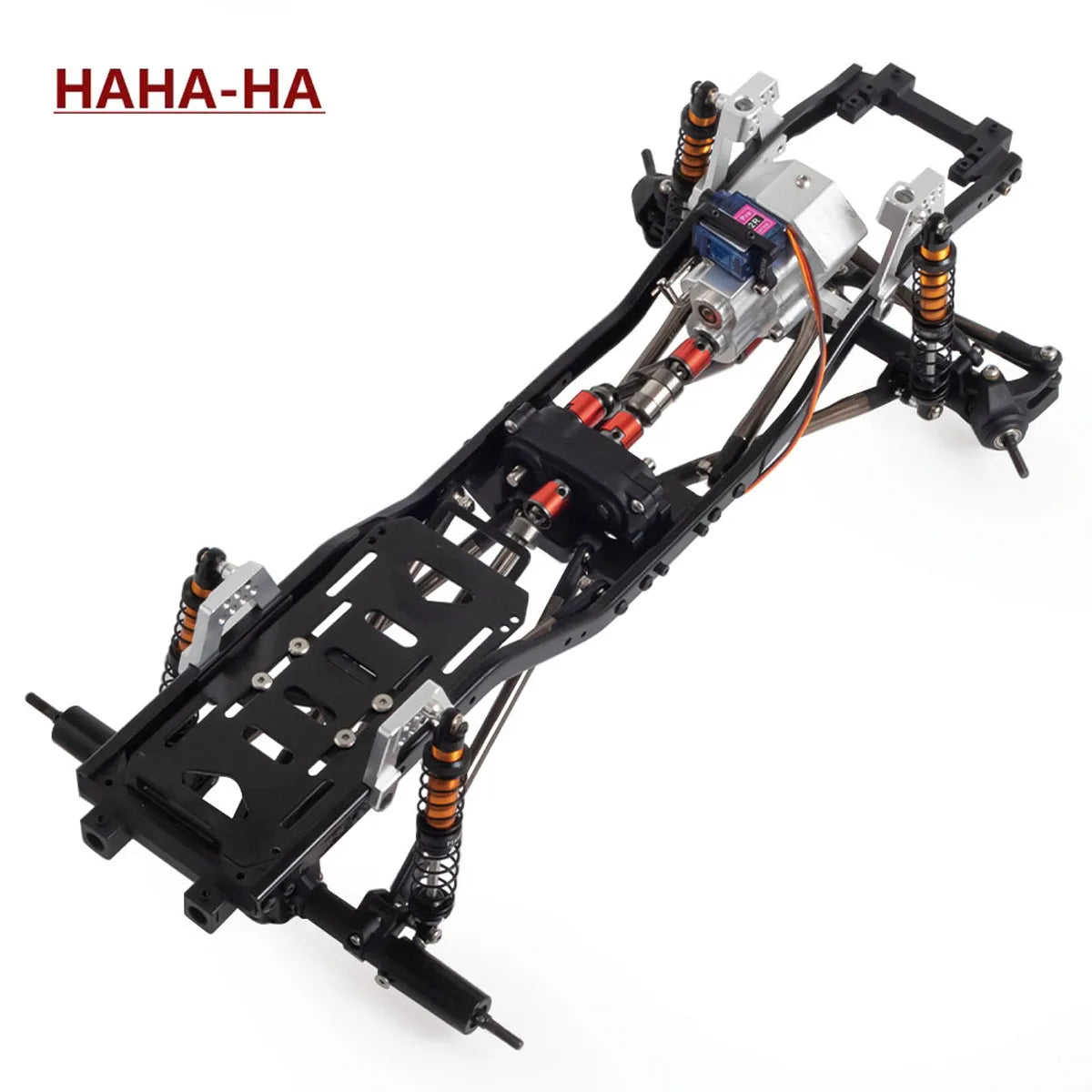

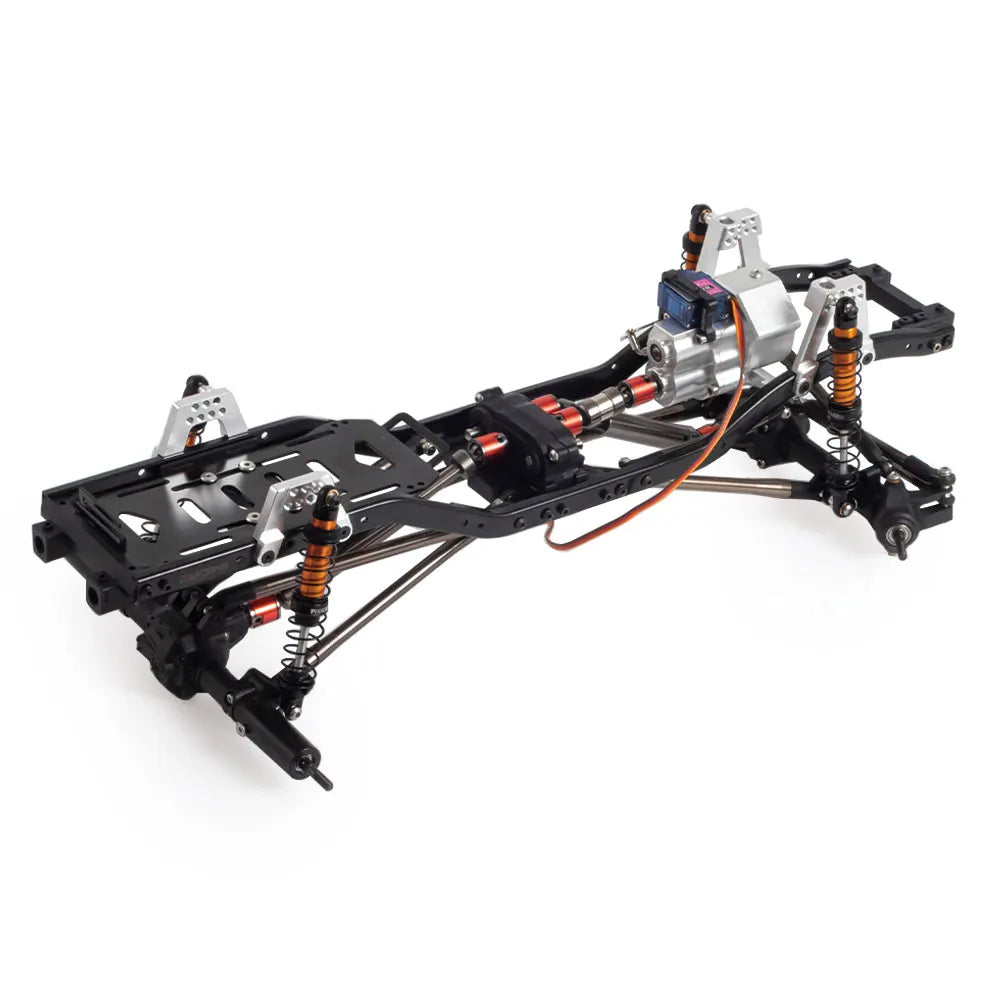

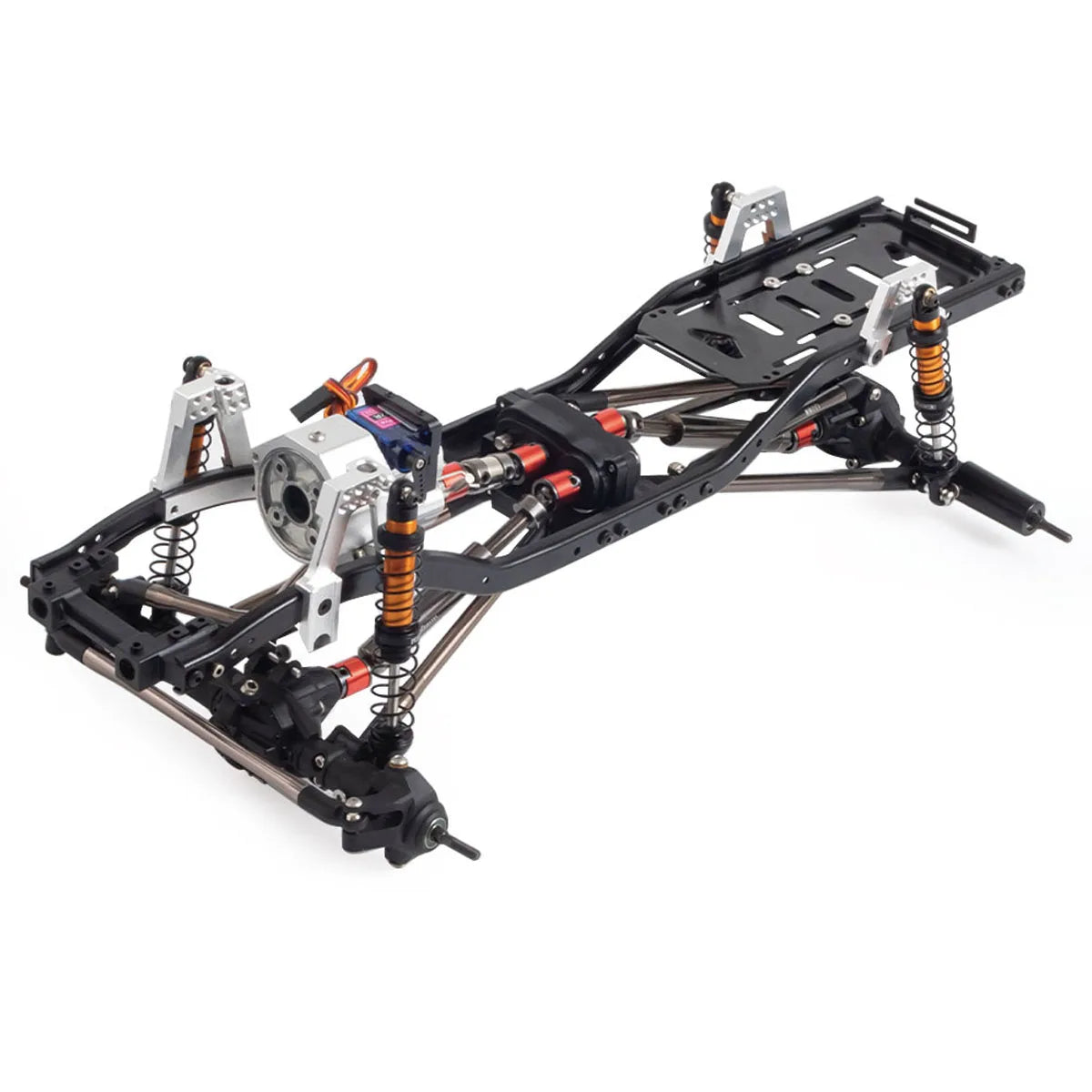

313mm Wheelbase Metal Chassis Frame with Prefixal Single / 2-Speed Transmission for 1/10 RC Crawler Axial SCX10 II 90046 EX86100

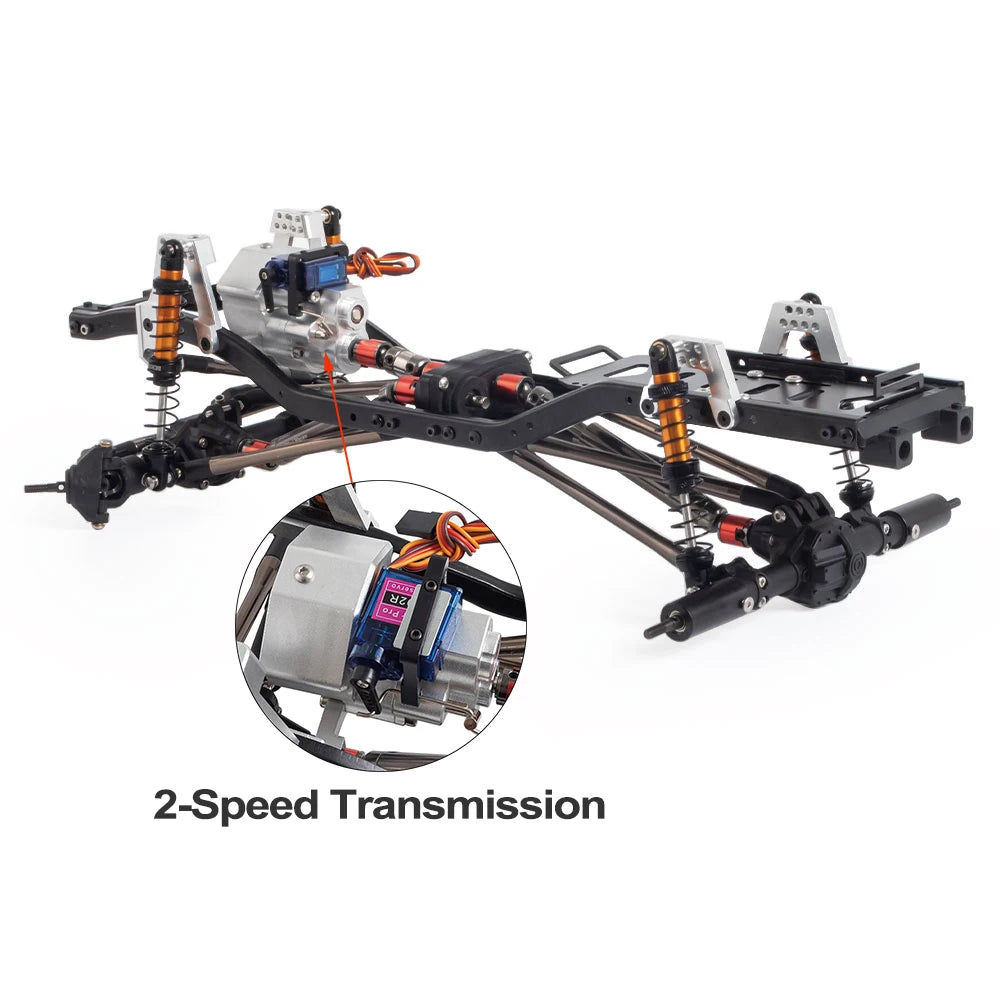

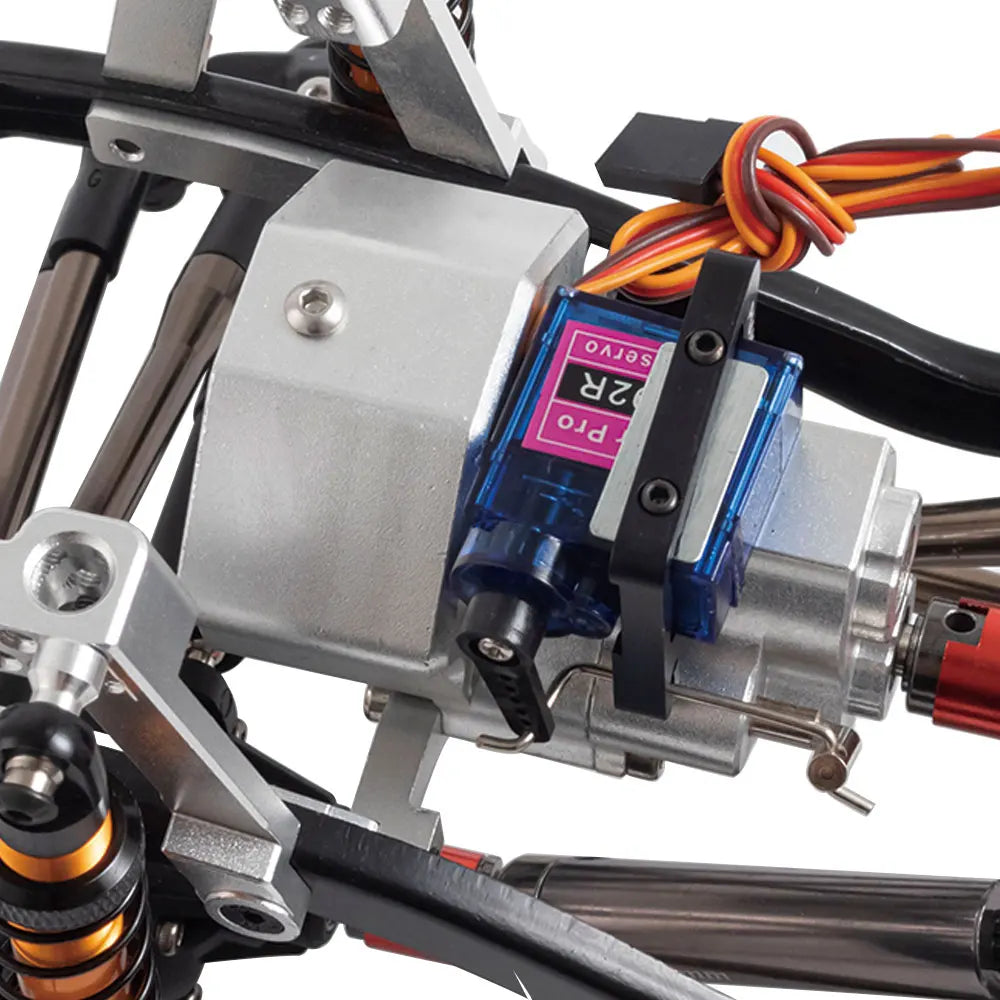

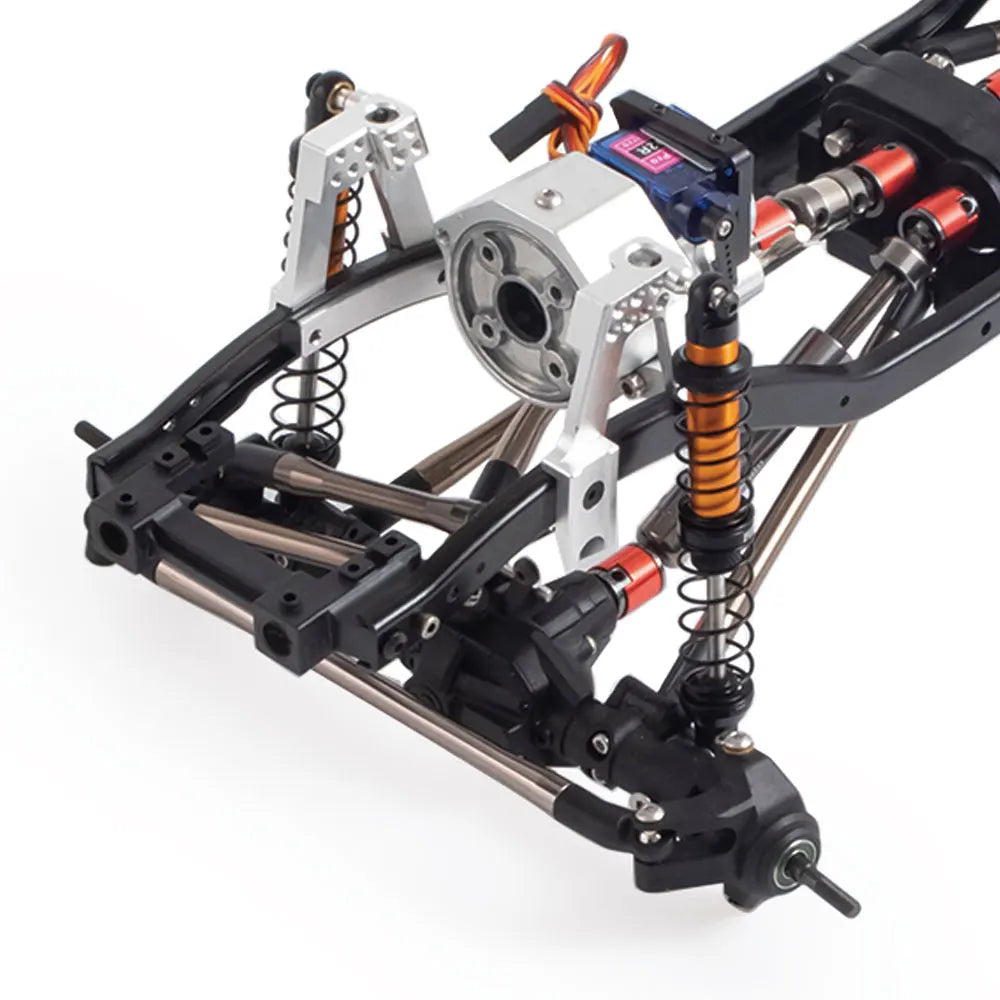

Front Mounted 2-Speed Transmission

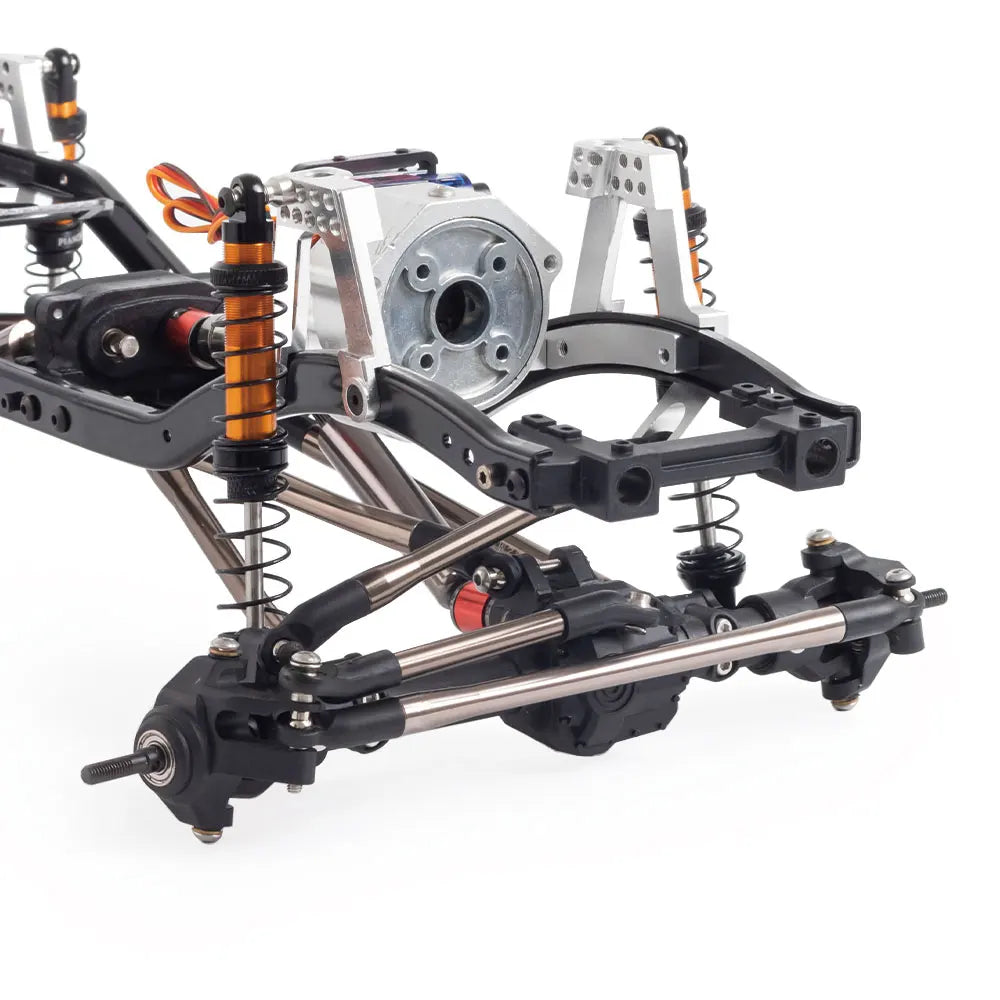

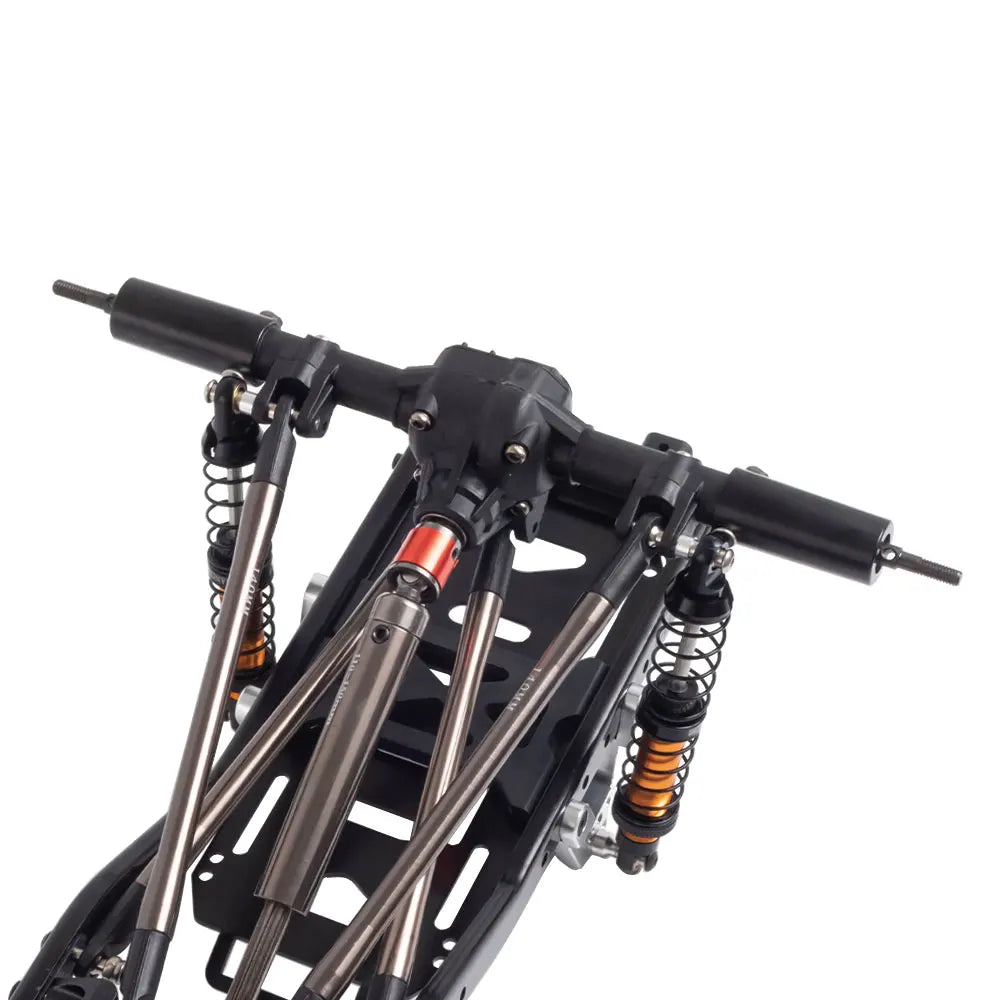

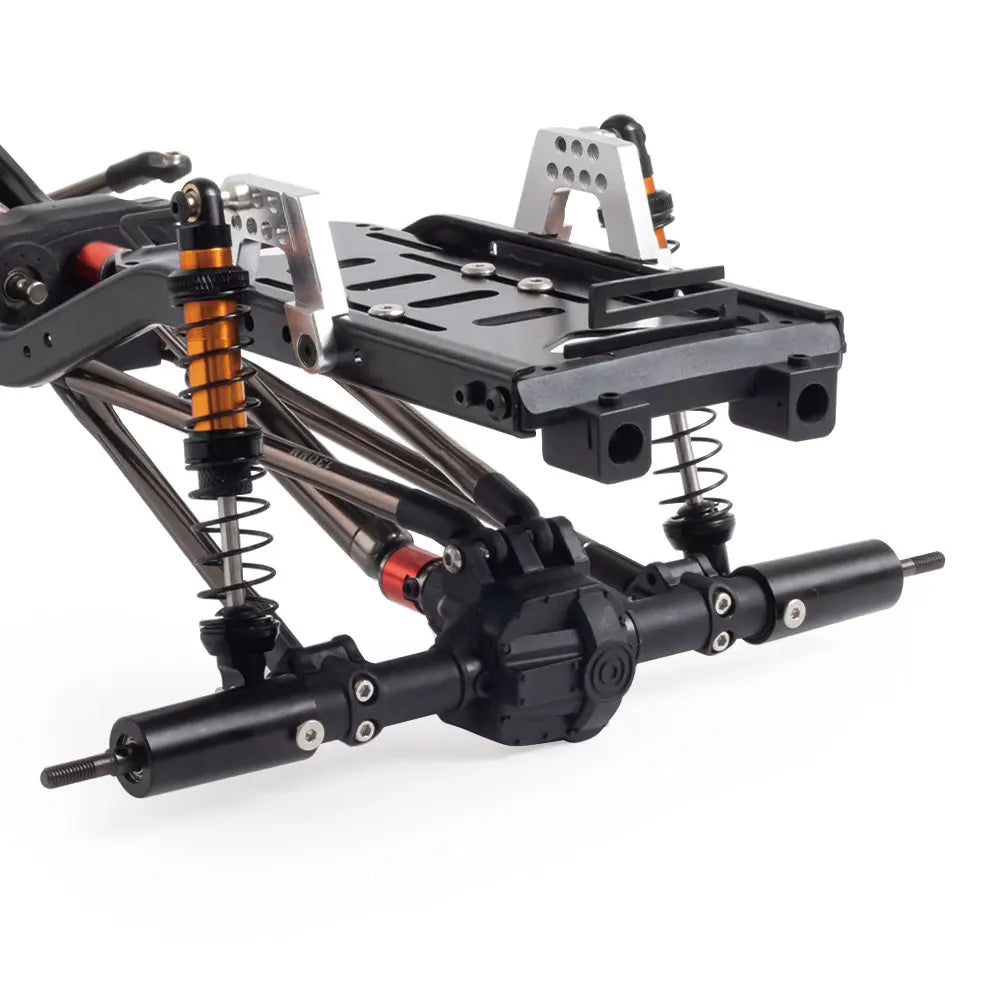

Reversed Front Axle(reduce "shaft-induced effect")
Injection Molded Nylon Axle Housing
Steel Internal Gears and Shaft
4-link Suspension(with panhard bar)

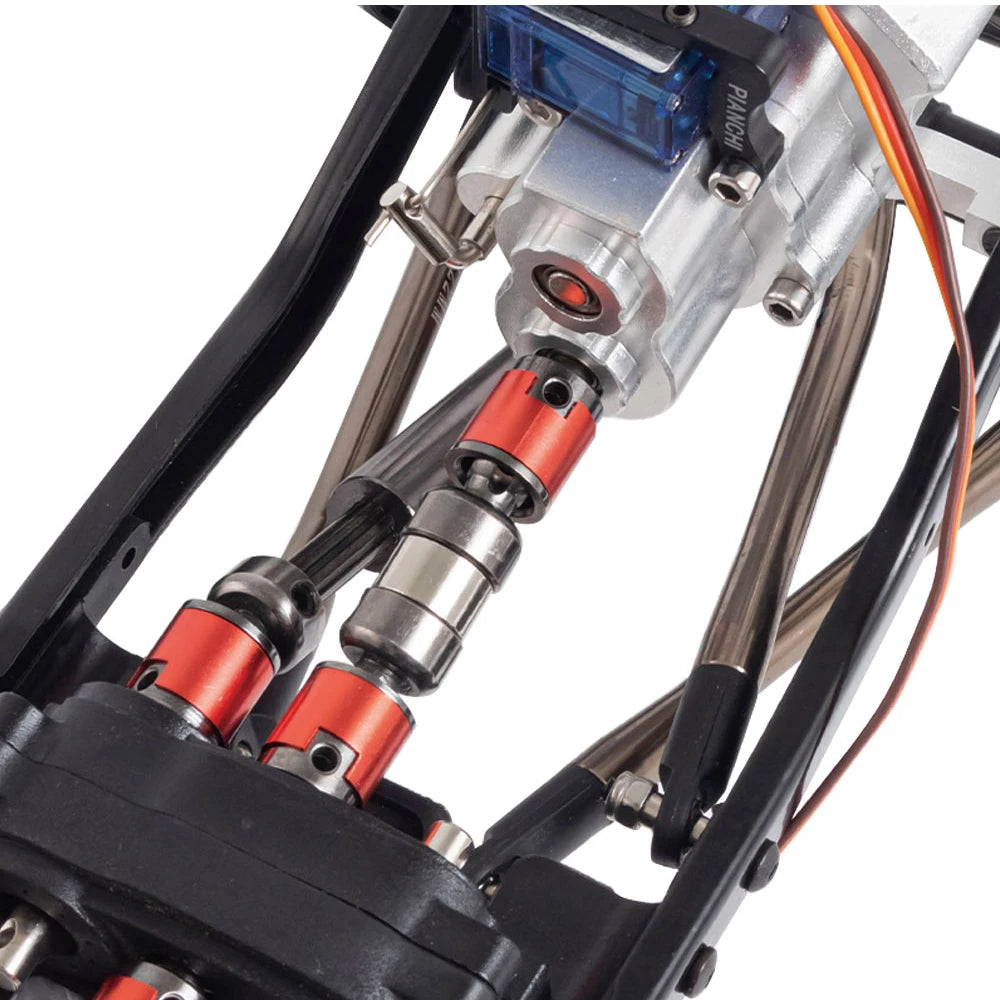

Internal Spline Drive Shaft

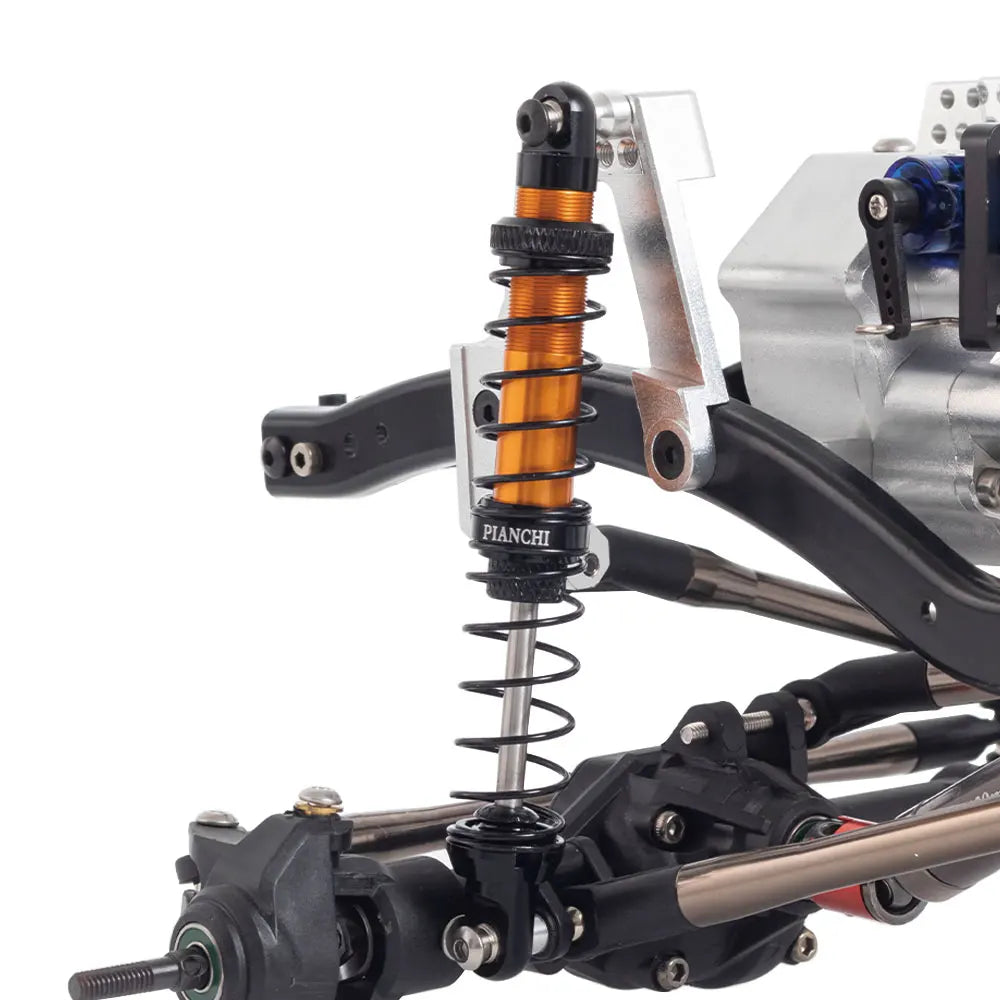

Adjustable Shock Towers

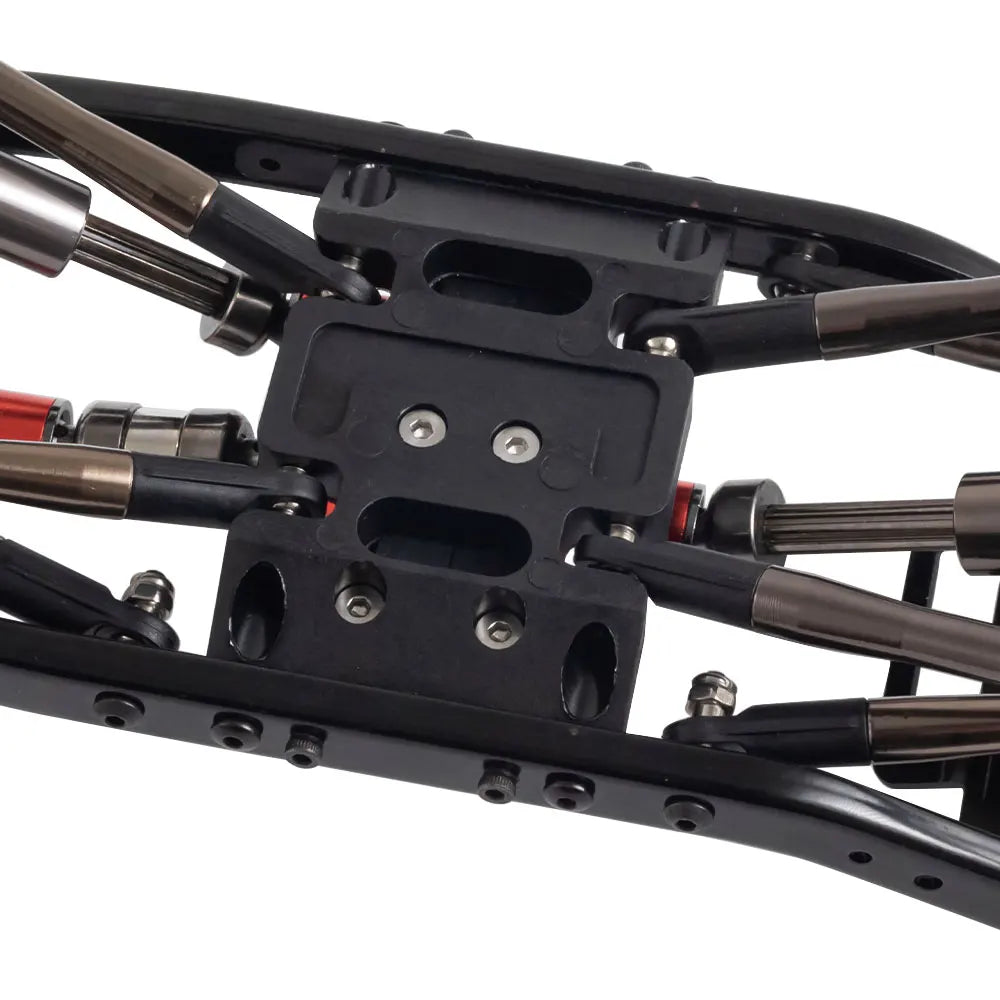

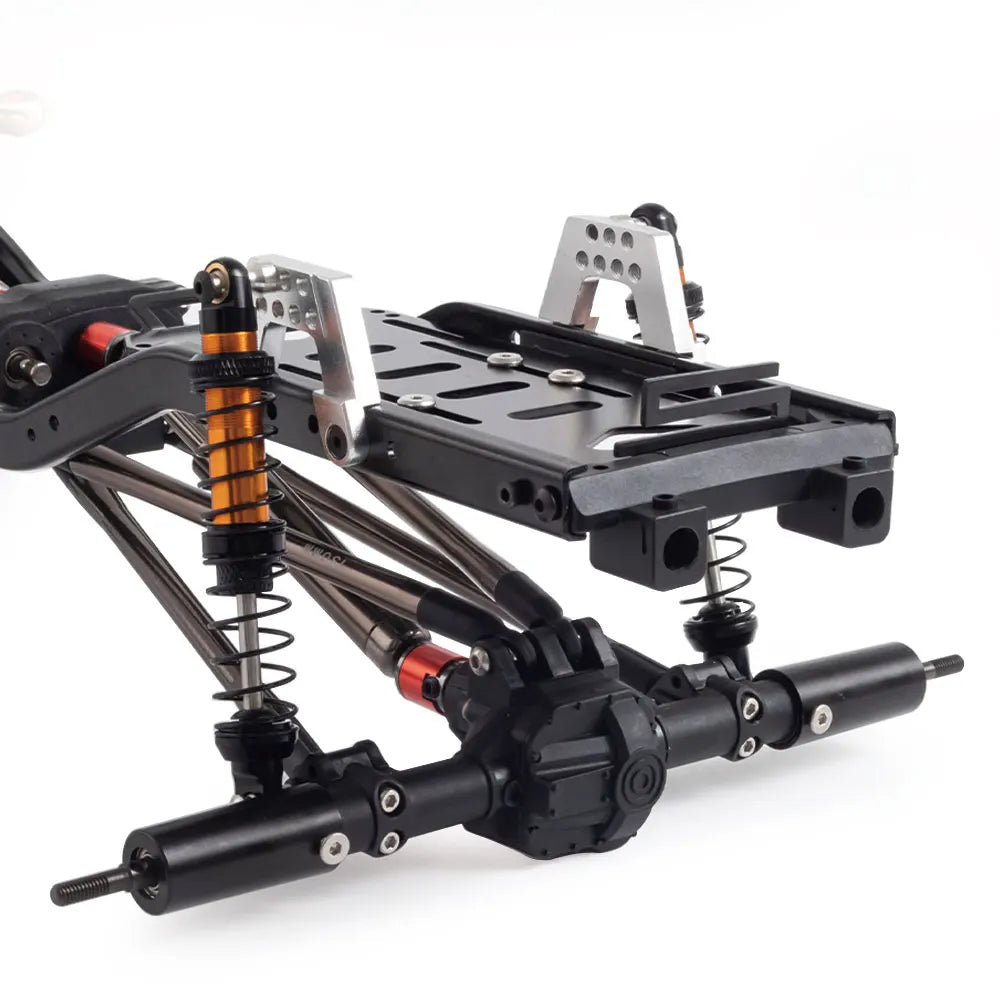

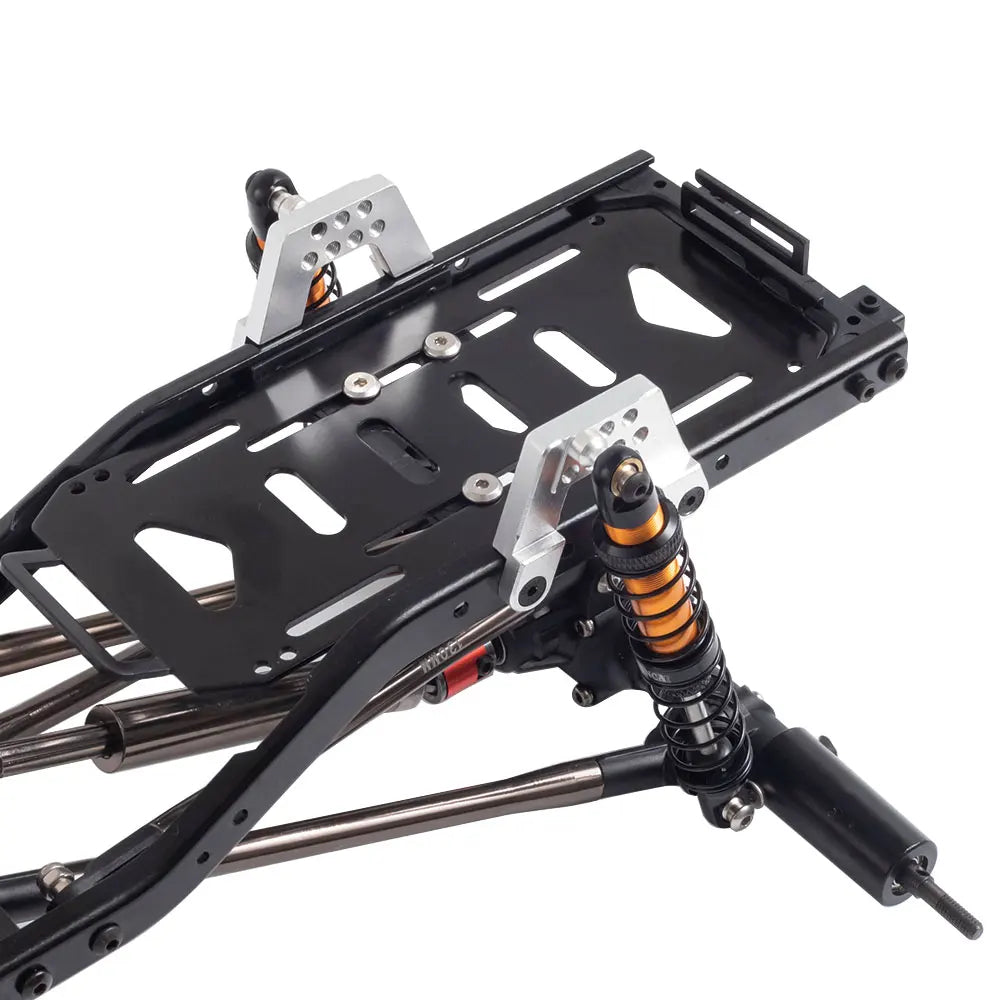

Metal Chassis Brace Set
Metal Frame Rails
Directly Compatible with 313mm Wheelbase Wrangler Rubicon Body

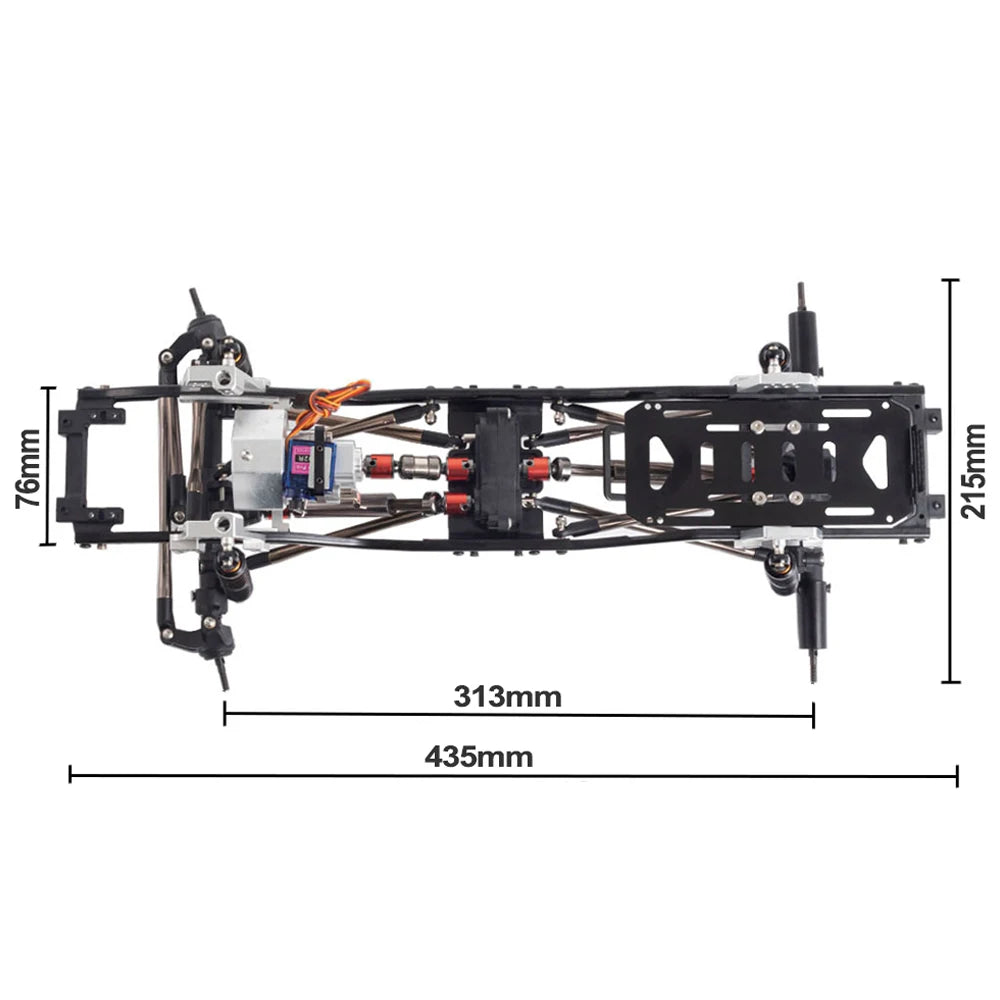

Size & Weight:
Wheelbase: 312mm
Total Length: 435mm
Total Width: 215mm(axle)
Frame Width: 76mm
Total Weight: about 1.3kg

Gears:
Bevel Gear Set: 30T / 8T
Motor Gear: 0.7M 15T
Transfer Case Gear Ratio: 1:1.2


Single Speed Transmission Gear Ratio: 1:8
2-Speed Transmission Gear Ratio: 1:8 (low)/1:4.8 (high)

Required to Complete(not included):
Body(313mm wheelbase wrangler rubicon body)
Wheels(1.9/2.2 Inch)
Motor (Recommend 27T or 35T)
ESC, Electronic Speed Controller
Transmitter & Receiver (3 Channel or more)
Standard Size Servos
Battery (Consult your "ESC" manual, Recommend 2S LiPo)
Charger (Consult your battery guide)
