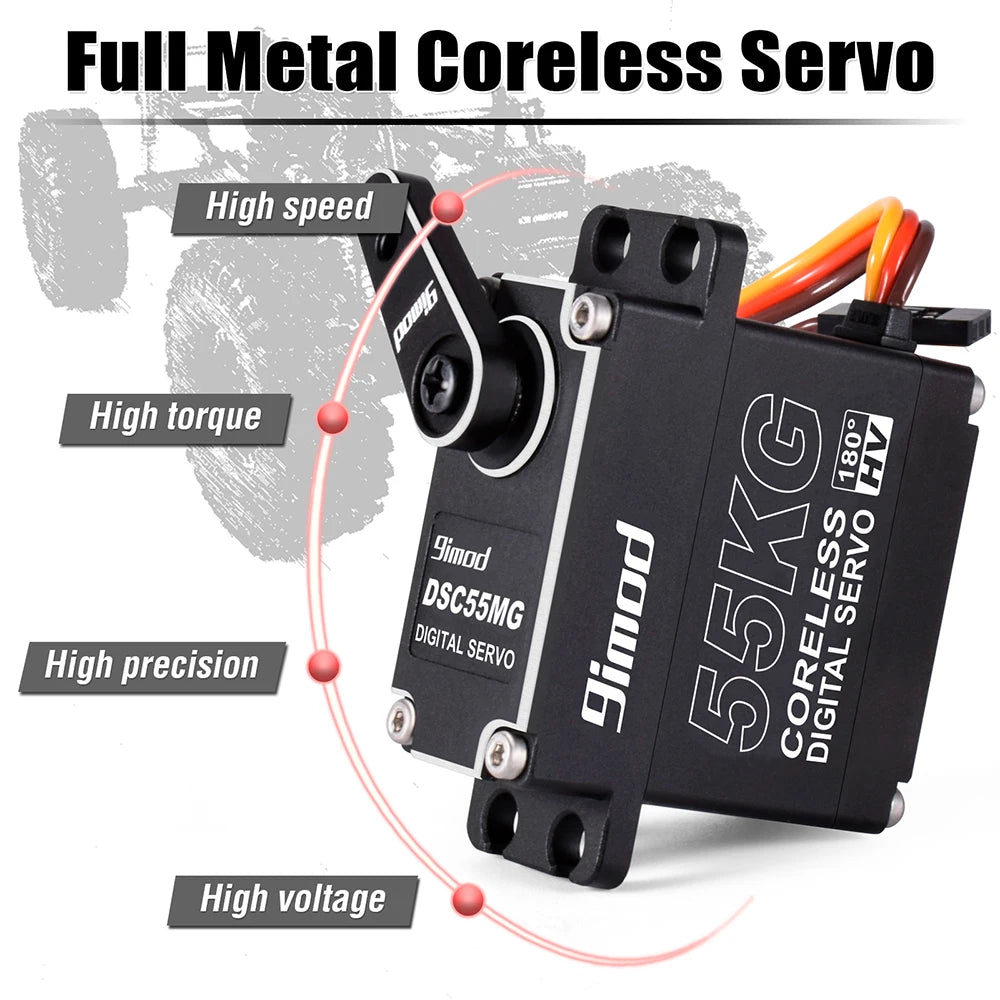

9imod 55kg Waterproof Servo IP67 180/270 Magnetic Sensor
High Torque High Voltage Coreless Digital Servo Full Metal Gear for 1/8
1/10 RC Models Car Boat DIY Parts

Features:
1. High Torque Servo: DSC55MG 55KG 180/270 degree HV coreless metal gear waterproof digital servo.
2.

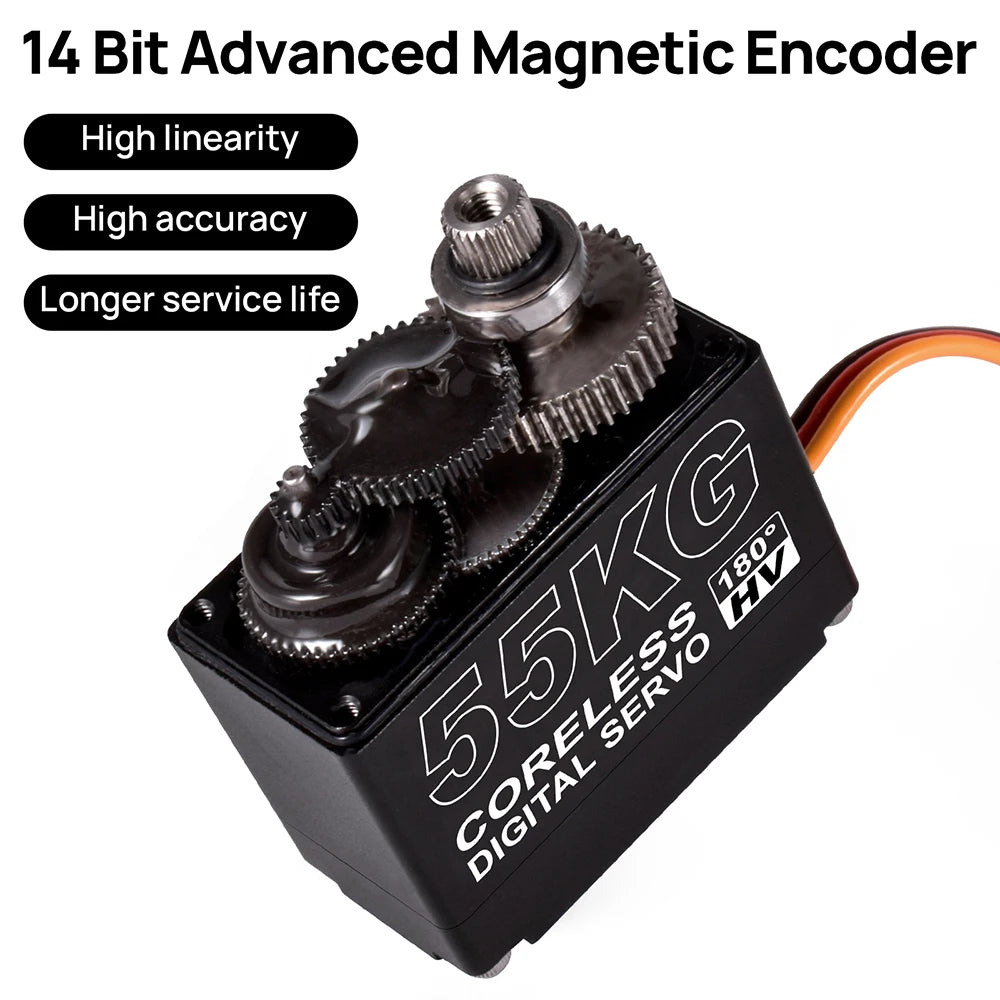

High Precision Magnetic Encoder Sensor: High-precision metal gears with
hard anodizing. 14bit digital high precision magnetic encoding angle
sensor, extremely accurate and stable.
3. Angle Range &
Waterproof: High rotation, 180/270 degrees rotation, perfect for robot
joint activities. Support High Voltage, stable and waterproof IP67.

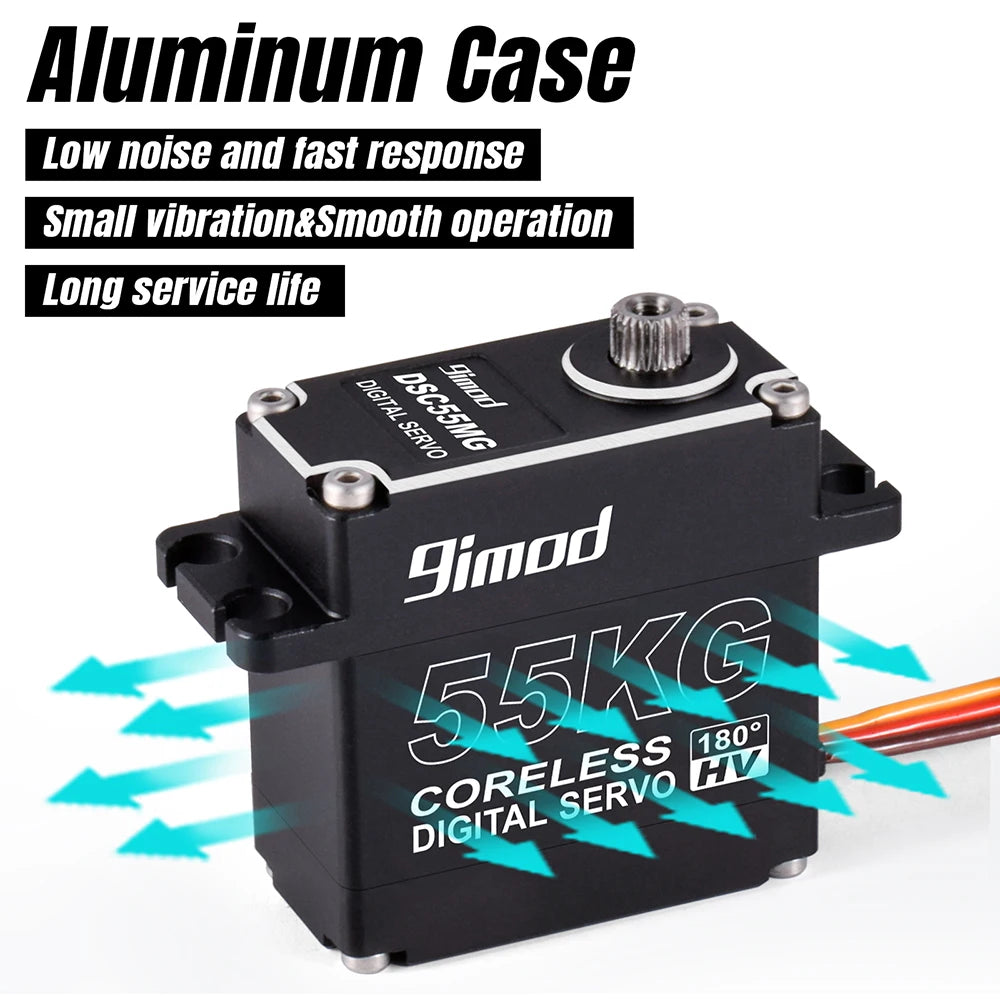

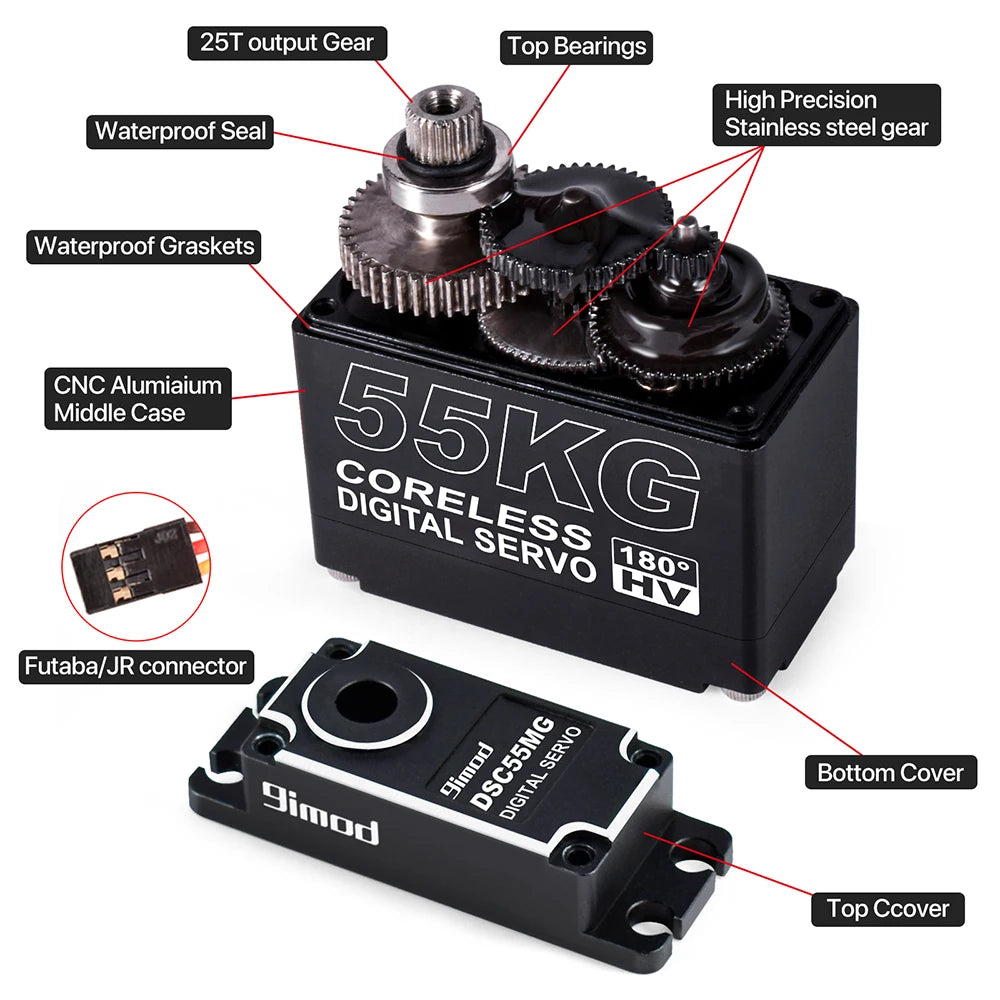

4. High Strength: CNC aluminium middle shell, dual ball bearings. To ensure longer service life.
5. Best for DIY Projects: Widely used in remote control crawler, boat, aircraft, helicopter, robot arm, etc.

Descriptions:
The
9imod 55kg waterproof digital servo with better heat dissipation, more
power and strong adaptability. Light weight, high-speed big torque,
sensitive, responsive, low noise. It is a good choice for novices and
professionals who are interested in DIY parts, will help you control the
model better.

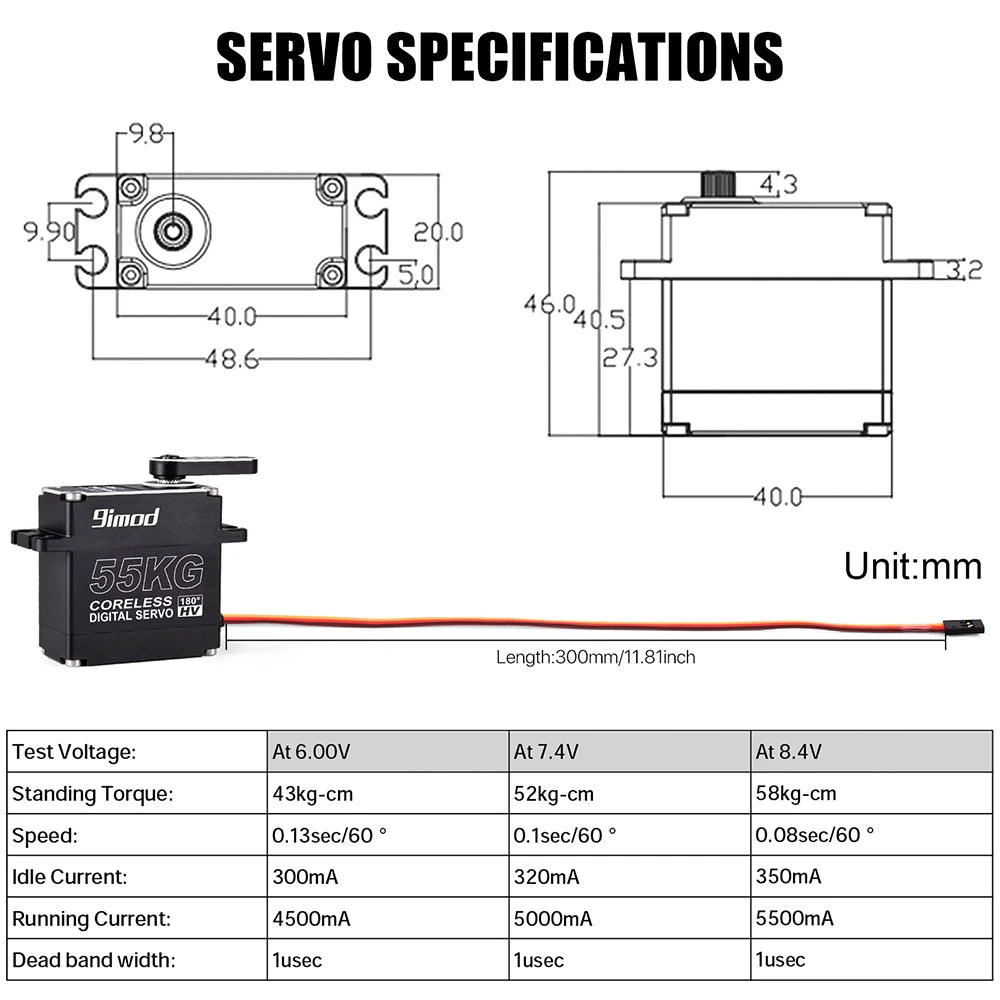

Specifications:
Brand: 9imod
Model: DSC55MG

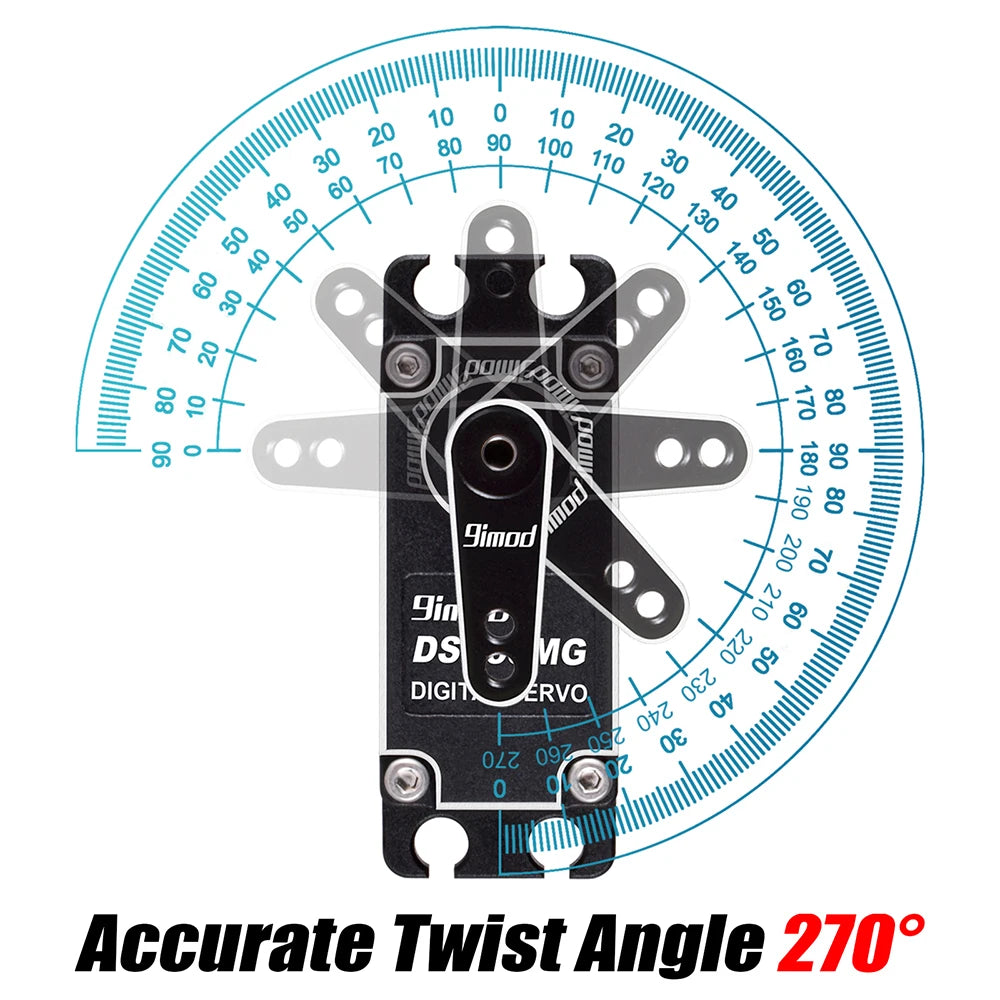

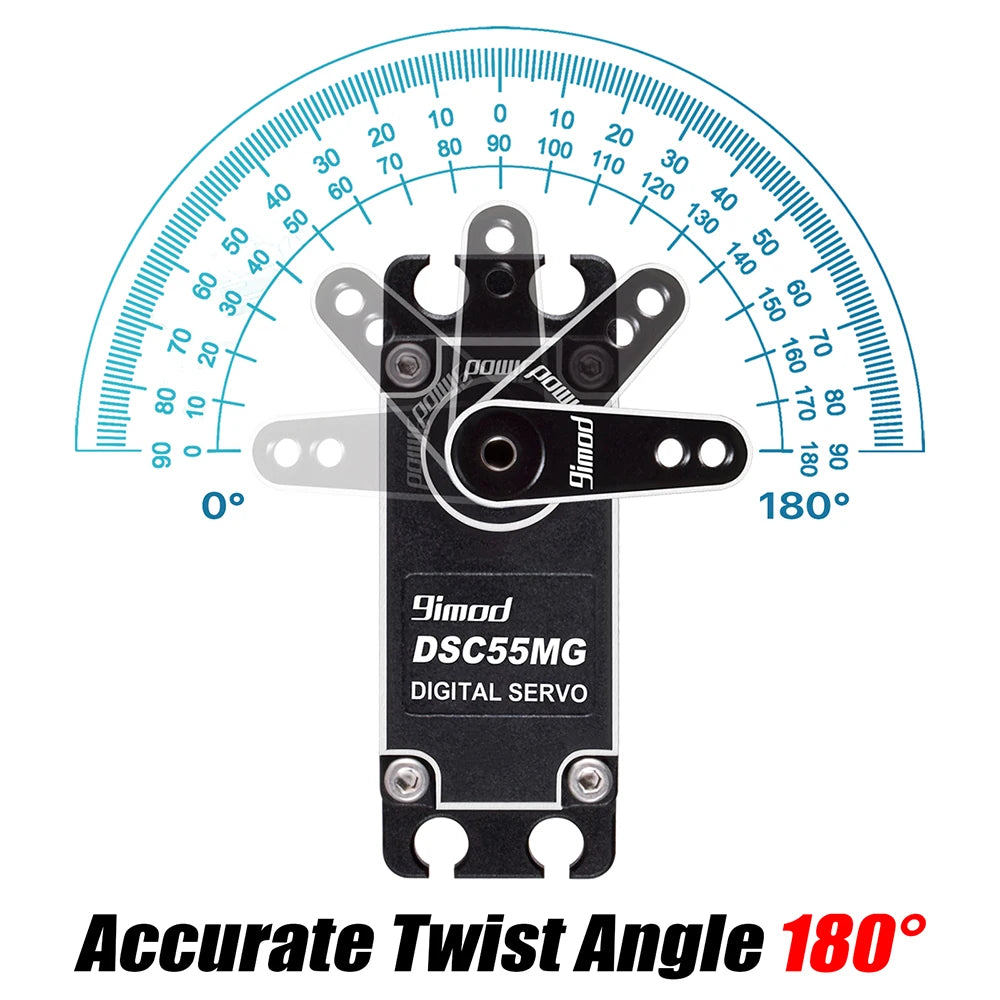

Running degree: 180°/270°(optional)
Control system: PWM
Neutral position: 1500μsec
Rotating direction: Counterclockwise (500～2500μsec)
Operation voltage range: 6.0V ~8.4V
Operation temperature range: -20C°~ +60C°
Circle: ＞600000 times at no load
Diver type: MOS drive
Motor type: Coreless motor
Potentiometer type: Magnetic coder
Amplifier type: Digital control

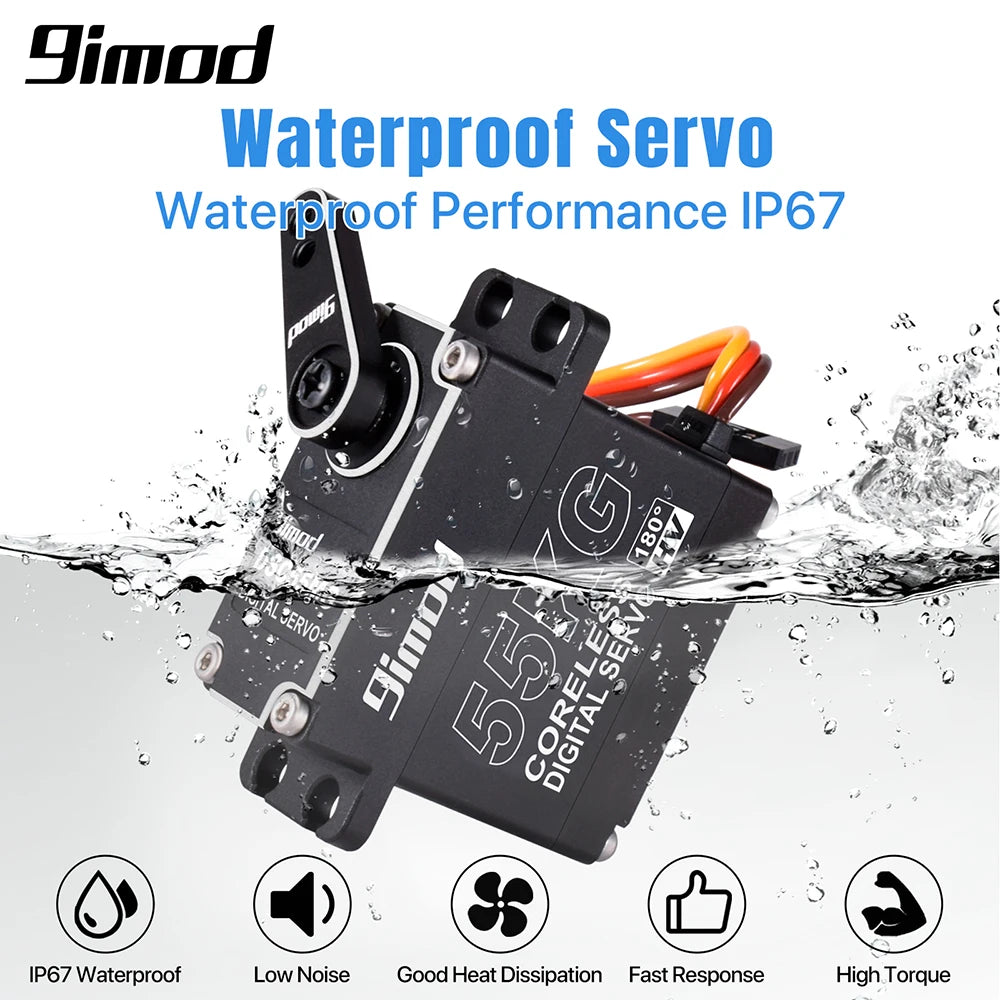

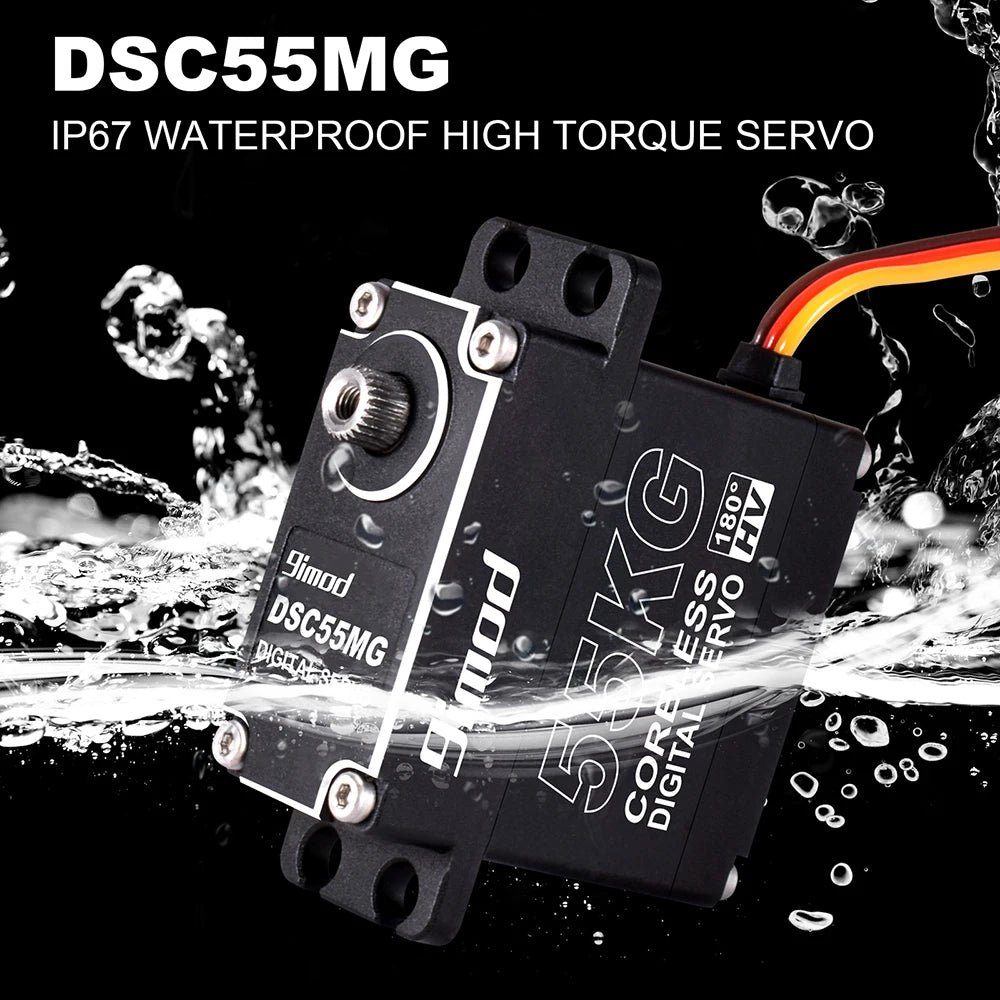

Waterproof performance: IP67
Dimensions: 40x20x40.50mm/1.57x0.79x1.59in
Weight: 78g (without servo horn)
Stall Torque: 43kg-cm-6V; 58kg-cm-8.4V
Operating speed: 0.13sec/60°-6V; 0.08sec/60°-8.4V
Idle current: 300mA-6V; 350mA-8.4V
Dead band width: 1μsec
Ball Bearing: 2BB
Gear material: Metal gear
Case material: Aluminum case
Connector wire: 300mm JR Plug
Connector wire gauge: 22AWG

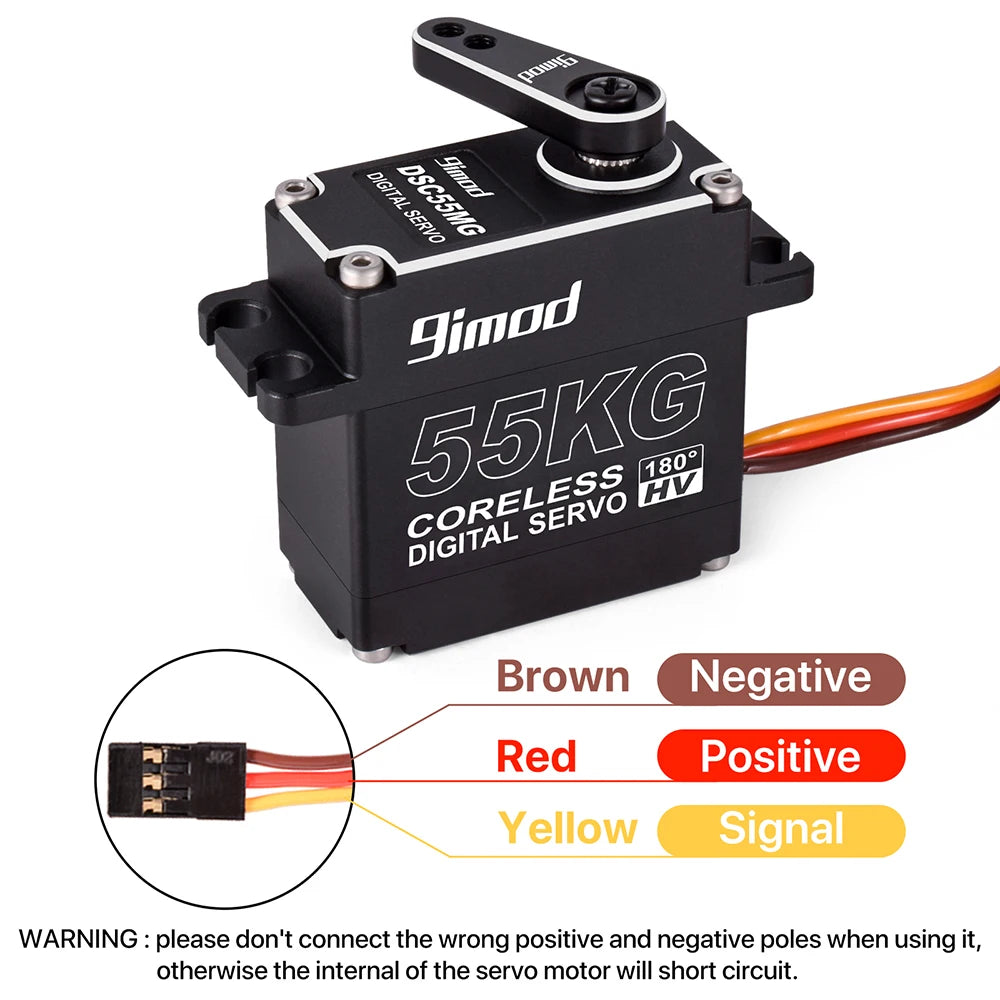

Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Yellow): S Single
Pulse width signal: 500-2500 ms: 180 degrees
Remote control aerial template control: 900-2100 milliseconds: 120 degrees
Gun remote control: 1000-2000 ms: 90 degrees

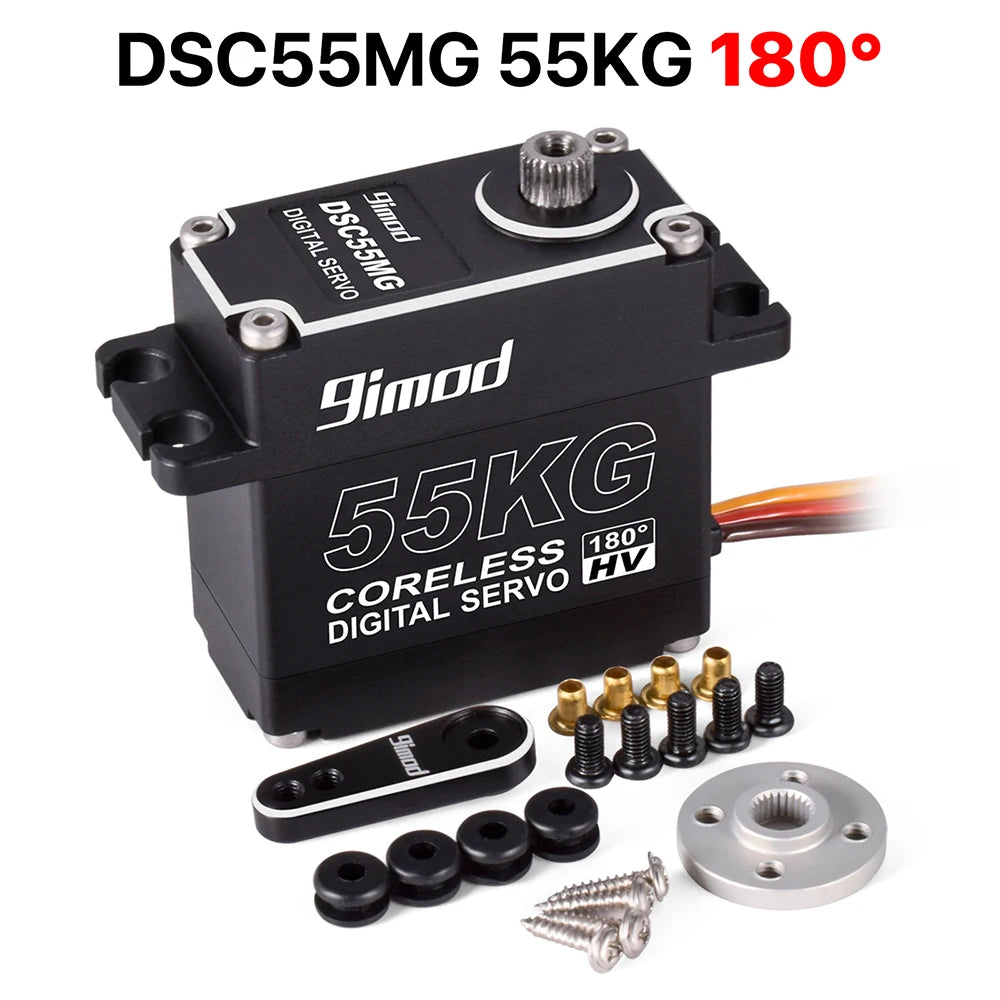

Package Included:
1 x Servo
1 x Servo Accessories

Note: Please select the servo according to your own remote control signal and the desired servo angle.
