SPECIFICATIONS

Brand Name: NONE

Brushless ESC: 140A/80A

Brushless Motor: 3652SD/3665SD

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Origin: Mainland China

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Hobbywing 1/10 RC MAX10 G2 Waterproof Brushless ESC 80A/140A 3652/3665 Motor 2-3S for RC Off-Road On-Road Buggy Monster Truck Car Part

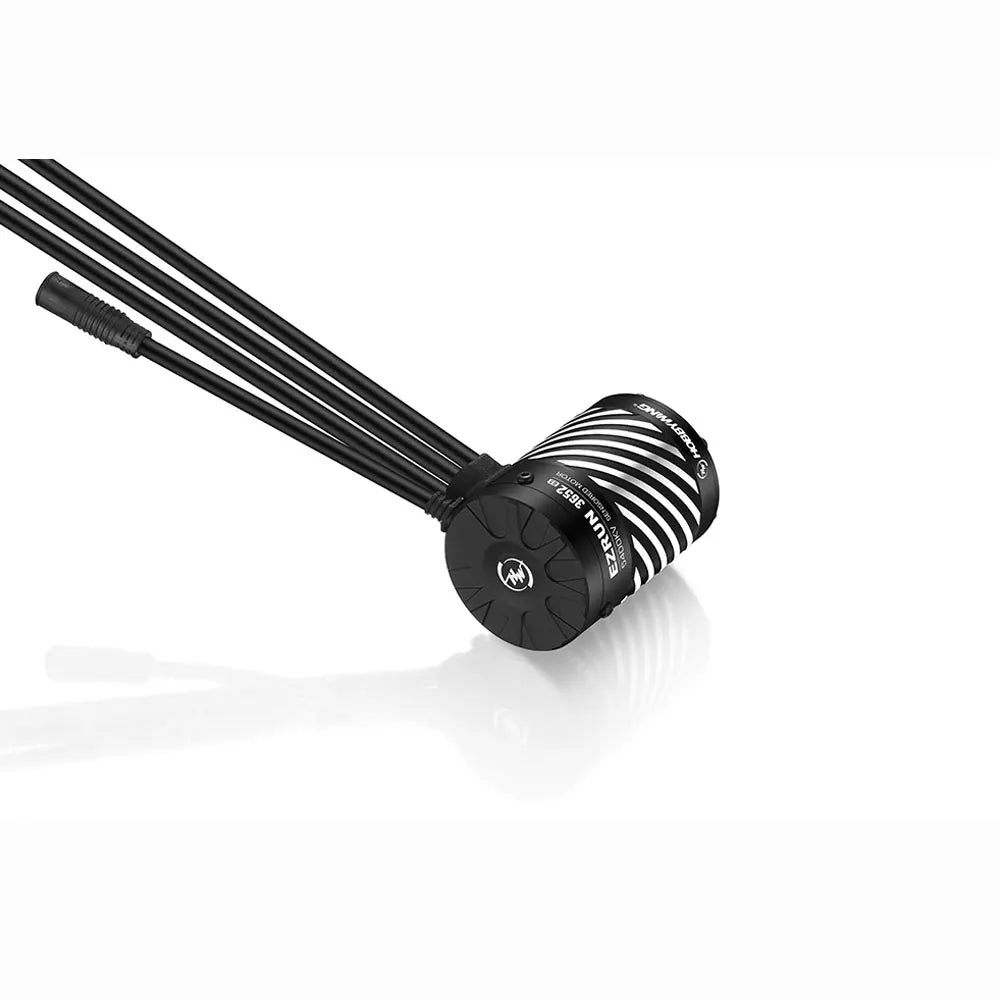

Motor Description:

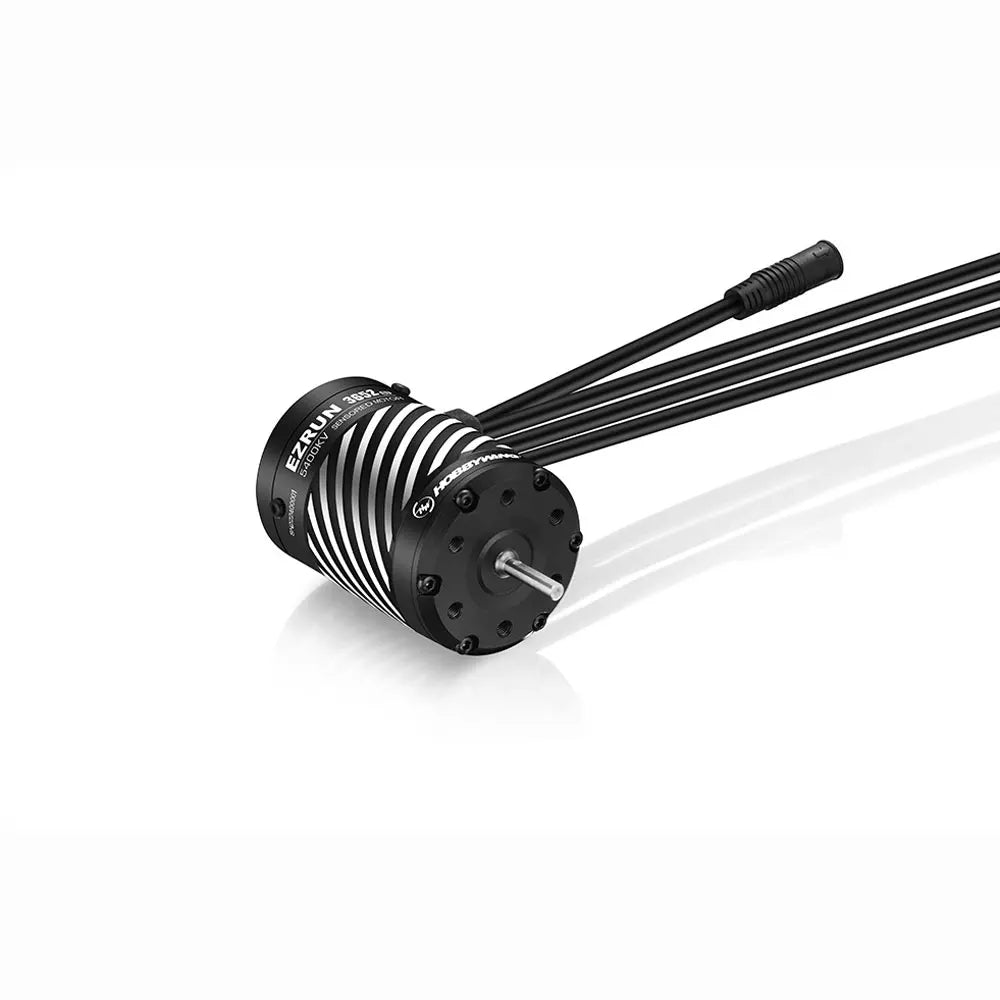

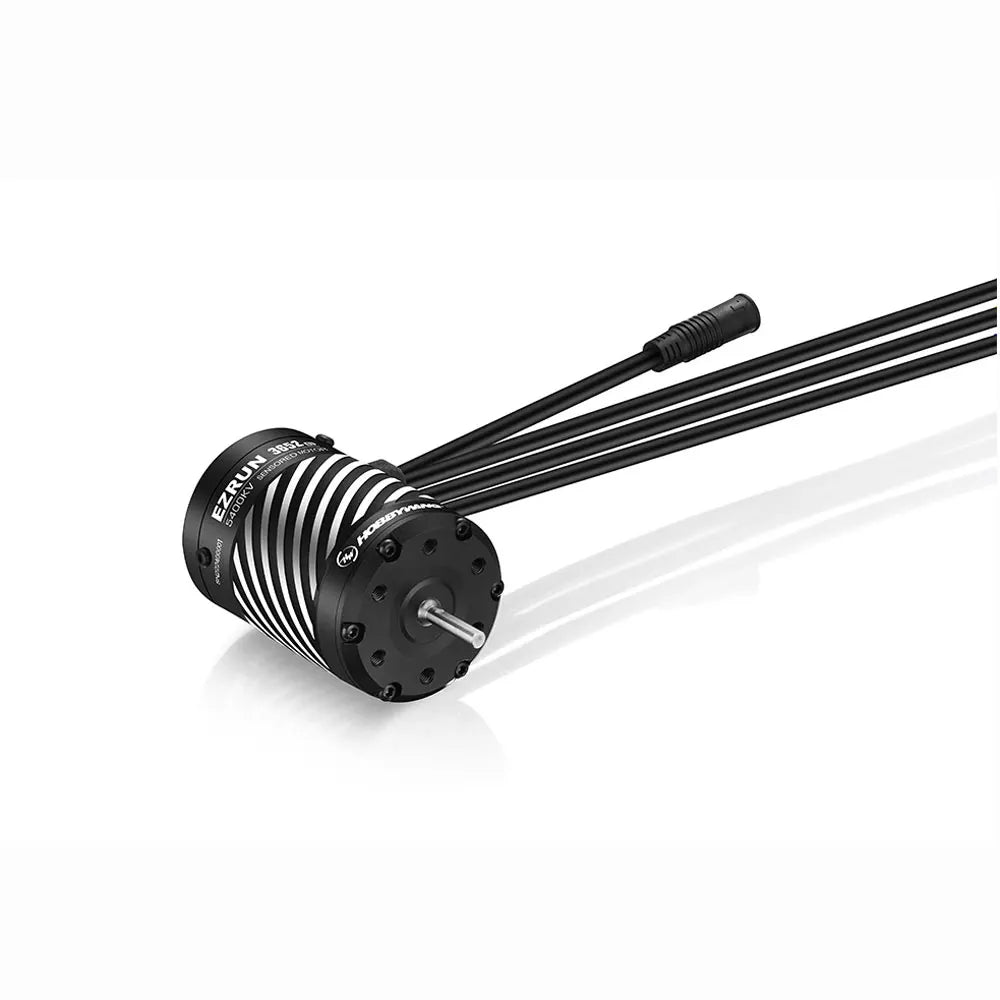

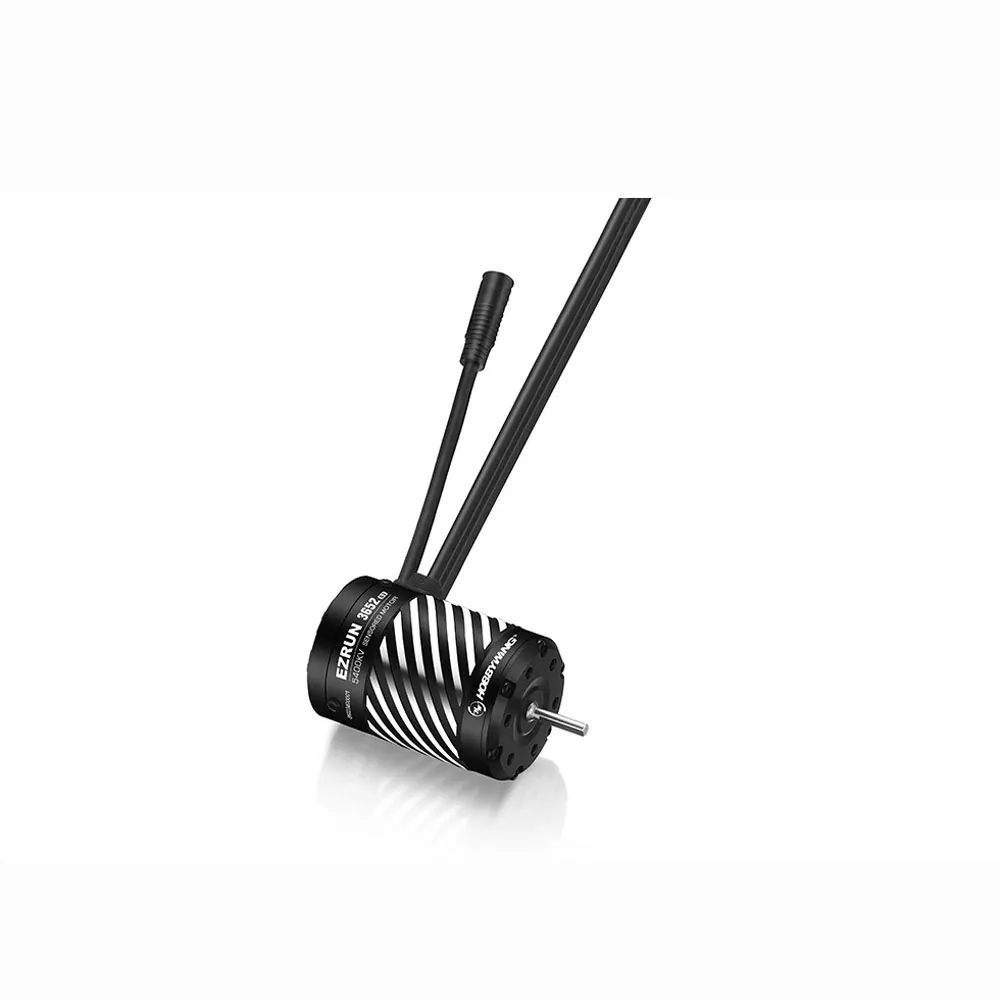

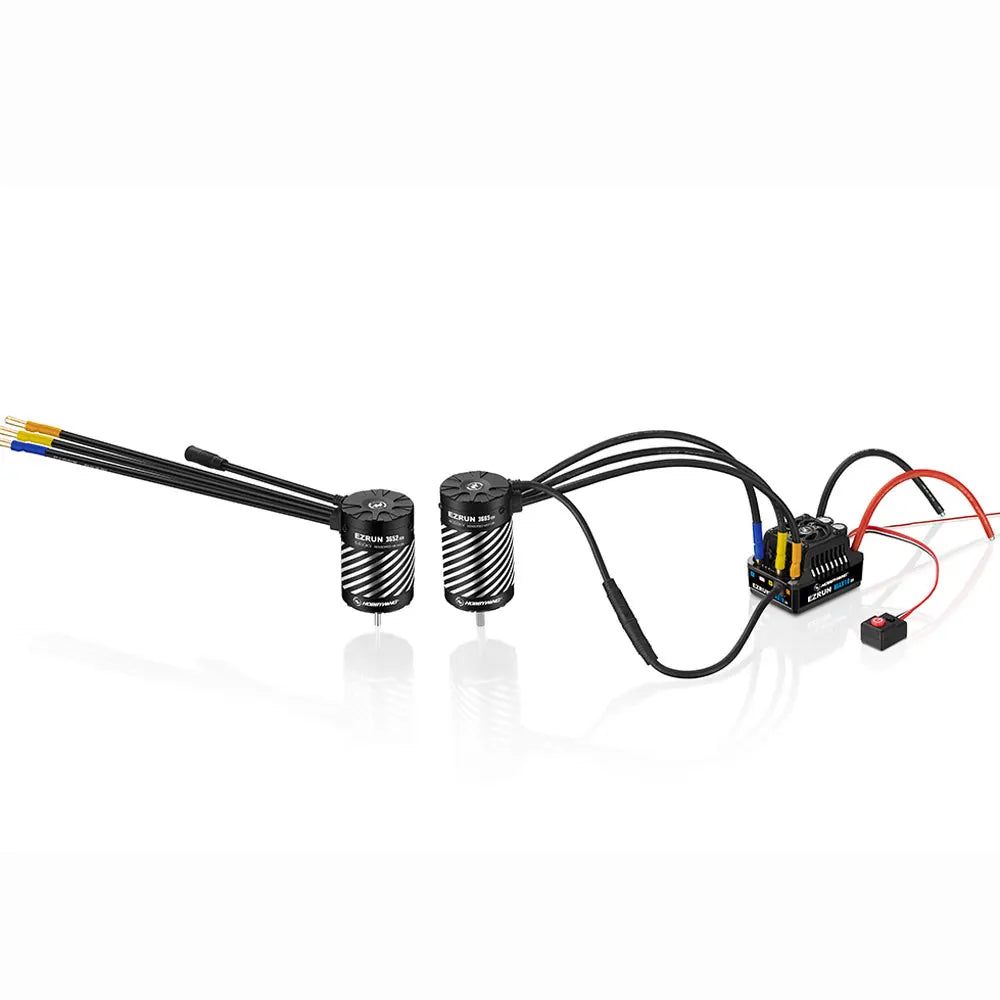

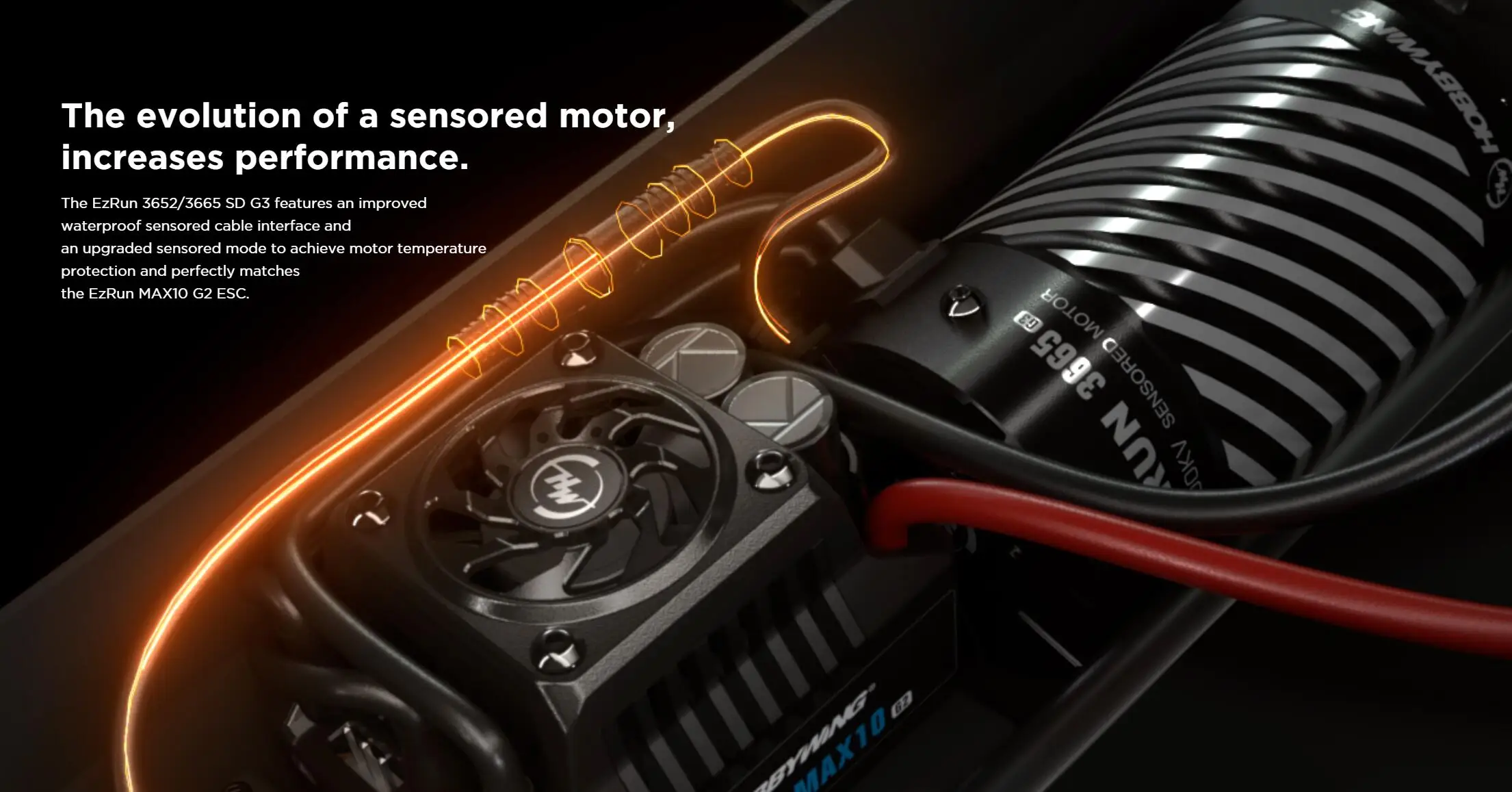

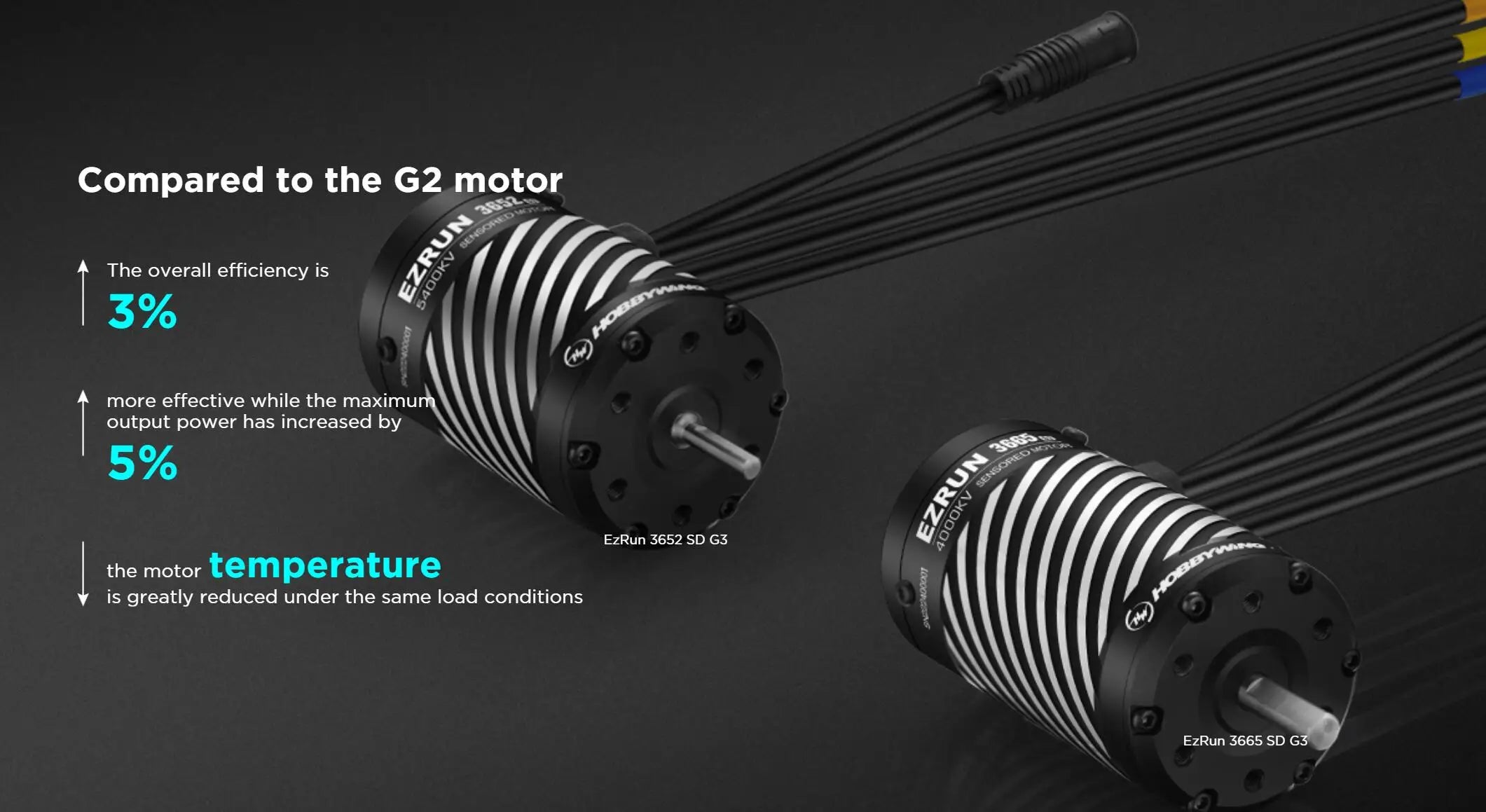

HobbyWing EZRUN G3 Brushless RC Motor 3652 3665 and MAX10 G2 ESC 80A 140A suitable for For 1/10 Scale RC Monster Buggy Truck Car.The evolution of a sensored motor,increases performance.The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches.Compared with the previous generation motor, the output power and efficiency are increased by more than 3%. Under the same load temperature is effectively reduced.

Motor Features:

1.Brushless Motor and ESC 1/10 Scale: HobbyWing EZRUN G3 Brushless RC Motor 3652 2400KV 3200KV 4000KV 3665 3300KV 4100KV 5400KV and MAX10 G2 ESC 80A 140A suitable for For 1/10 Scale RC Monster Buggy Truck Car

2.IP-67 Waterproof Motor: The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.Applicable to All Weather& Track Conditions

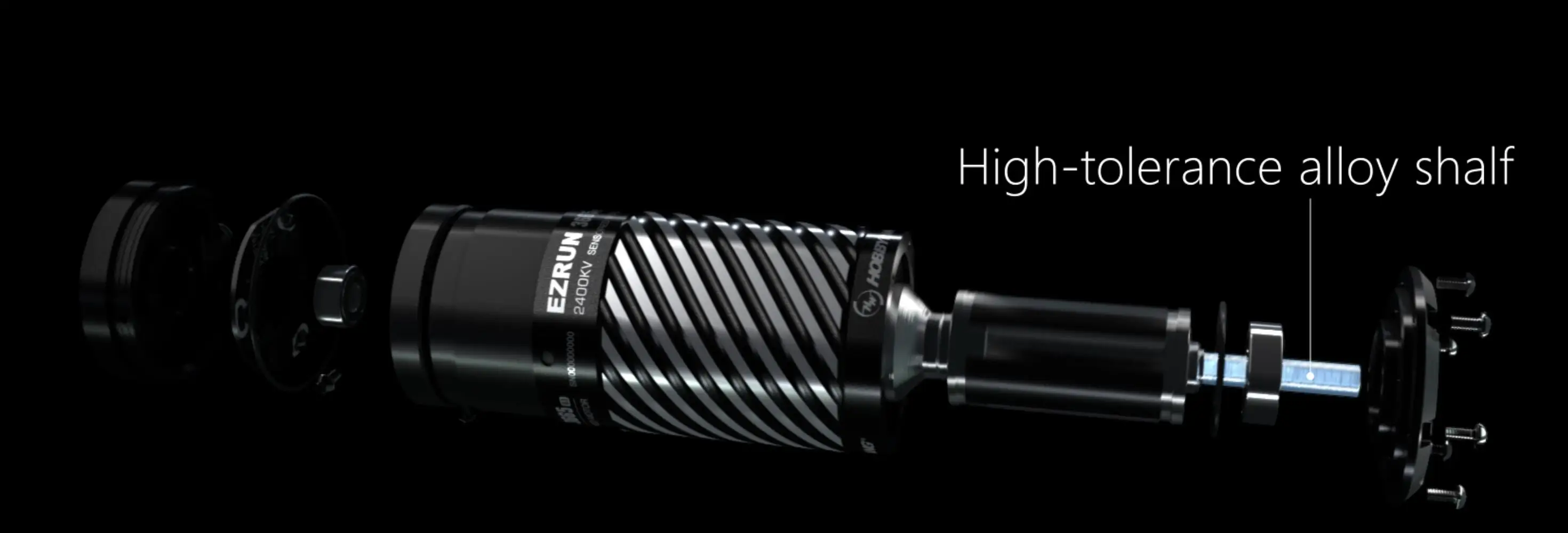

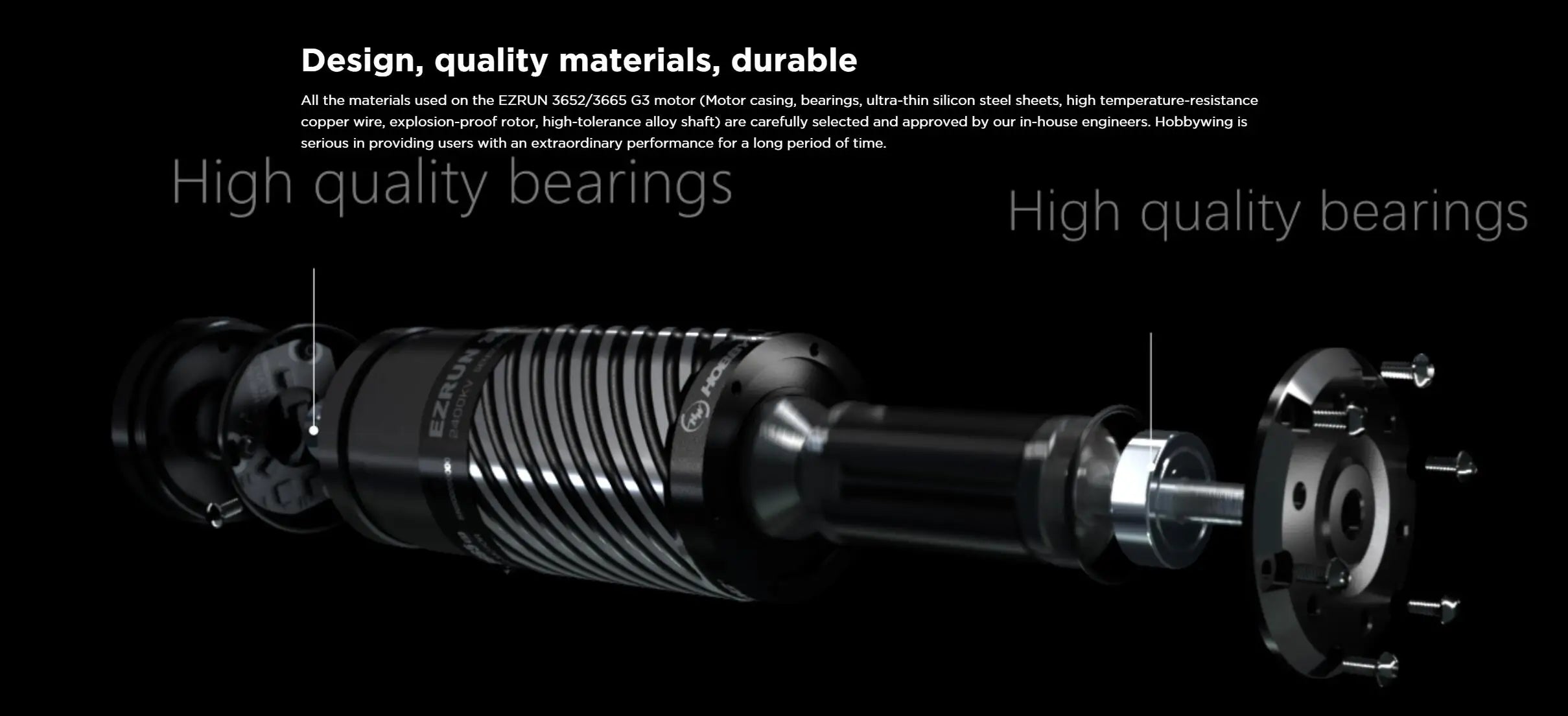

3.RC Motor Material: CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.

4.RC Motor and ESC Combo: Chip built in the motor,when matched with Hobbywing EZRUN MAX10 G2 esc, it not only has perfect compatibility, the ESC can automatically identify.

5.High Performance RC Motor: The motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.

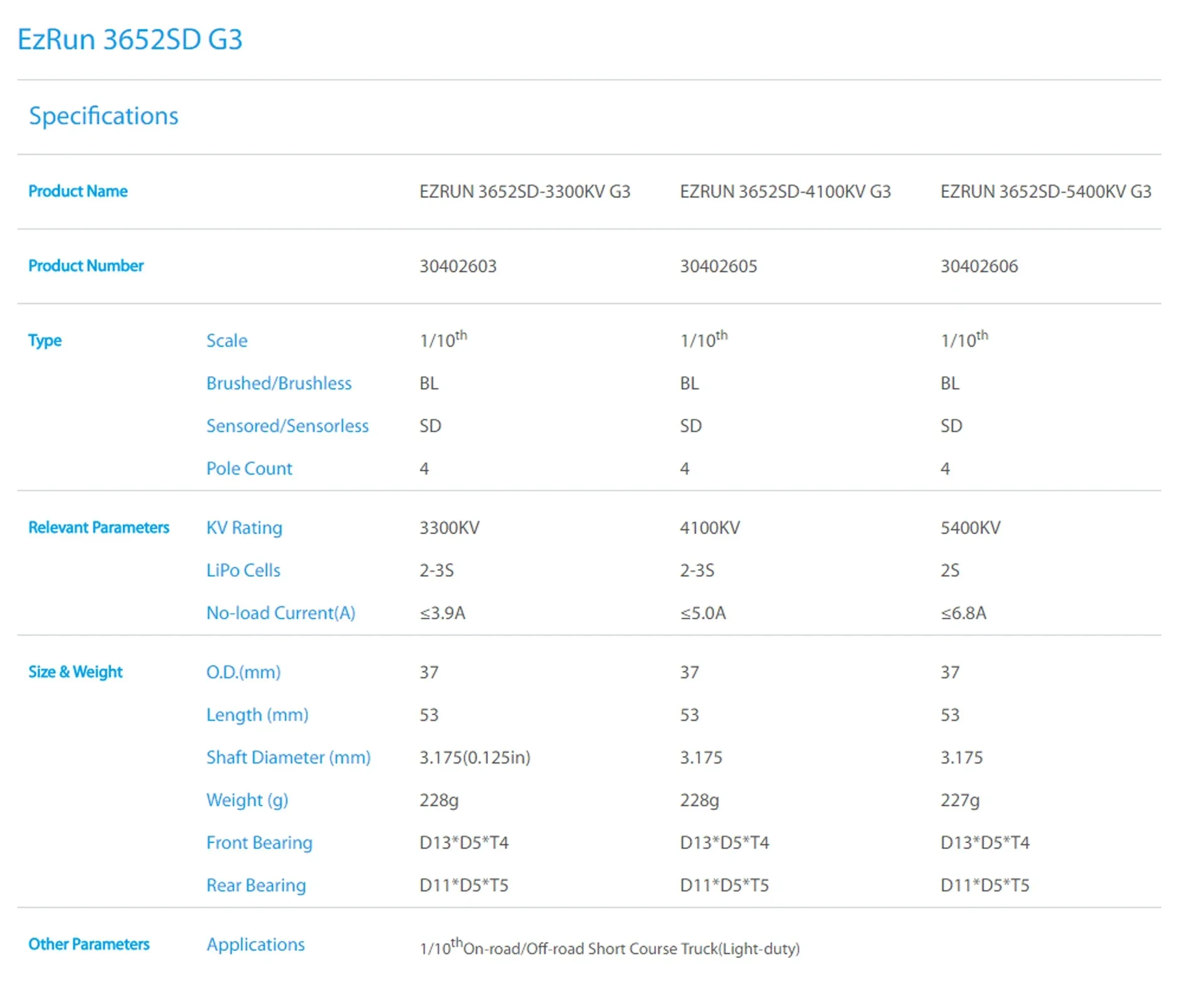

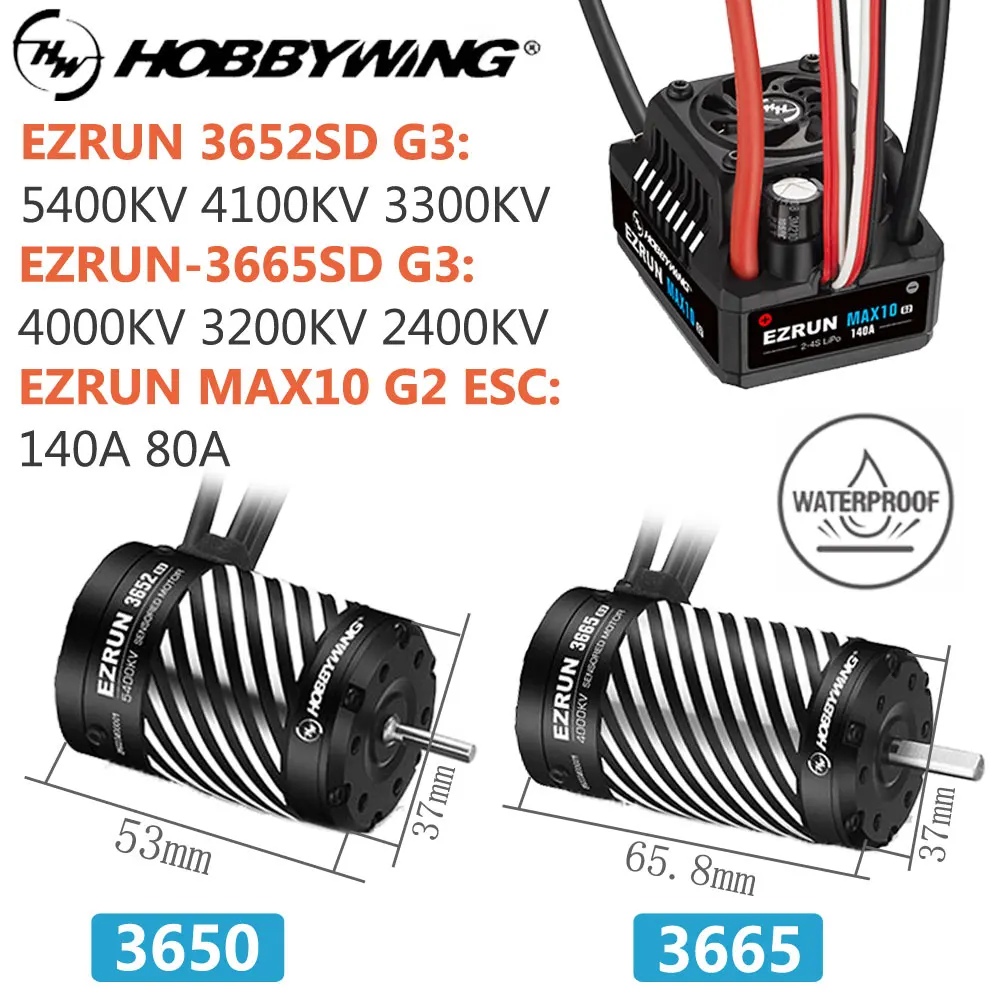

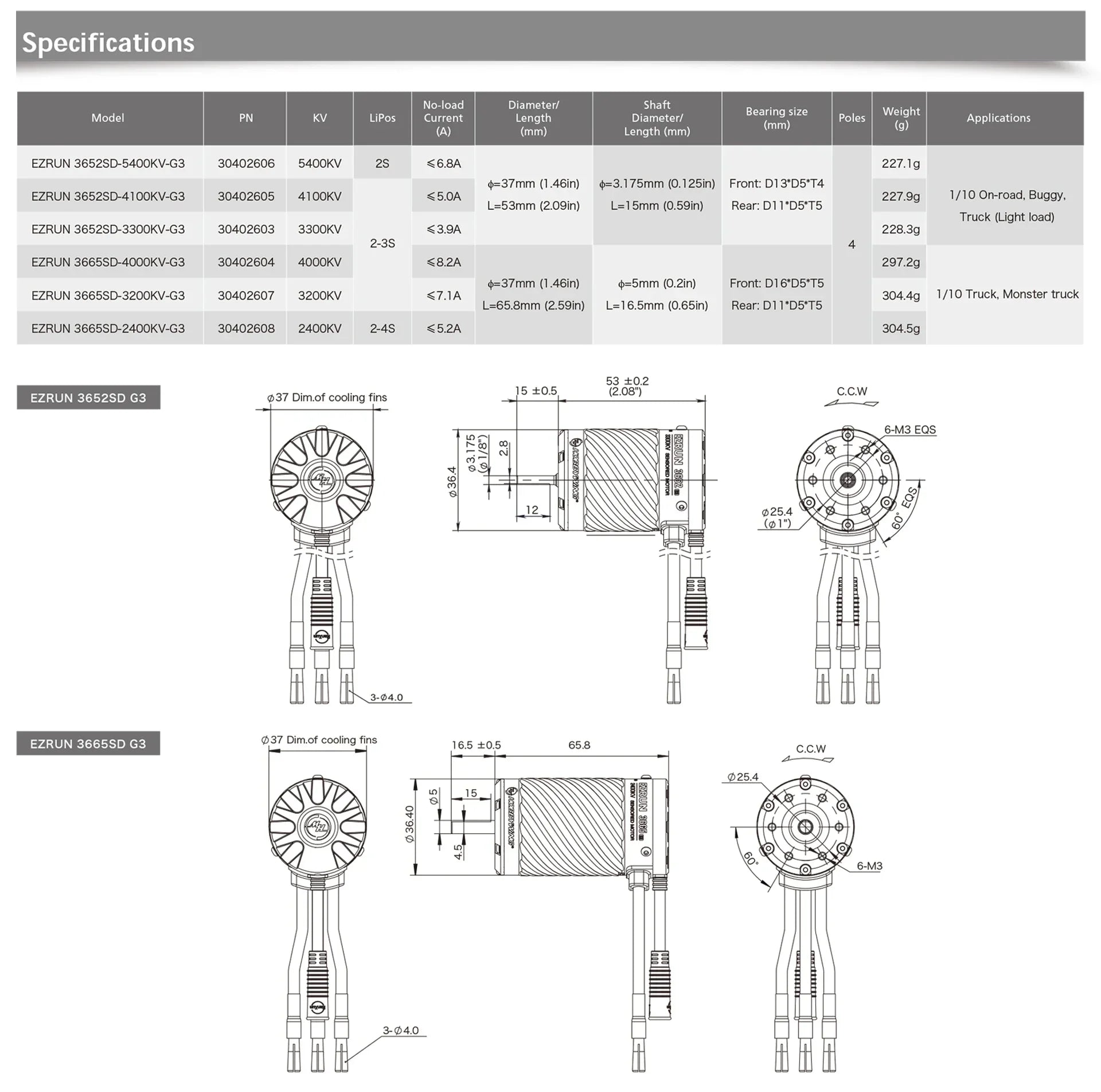

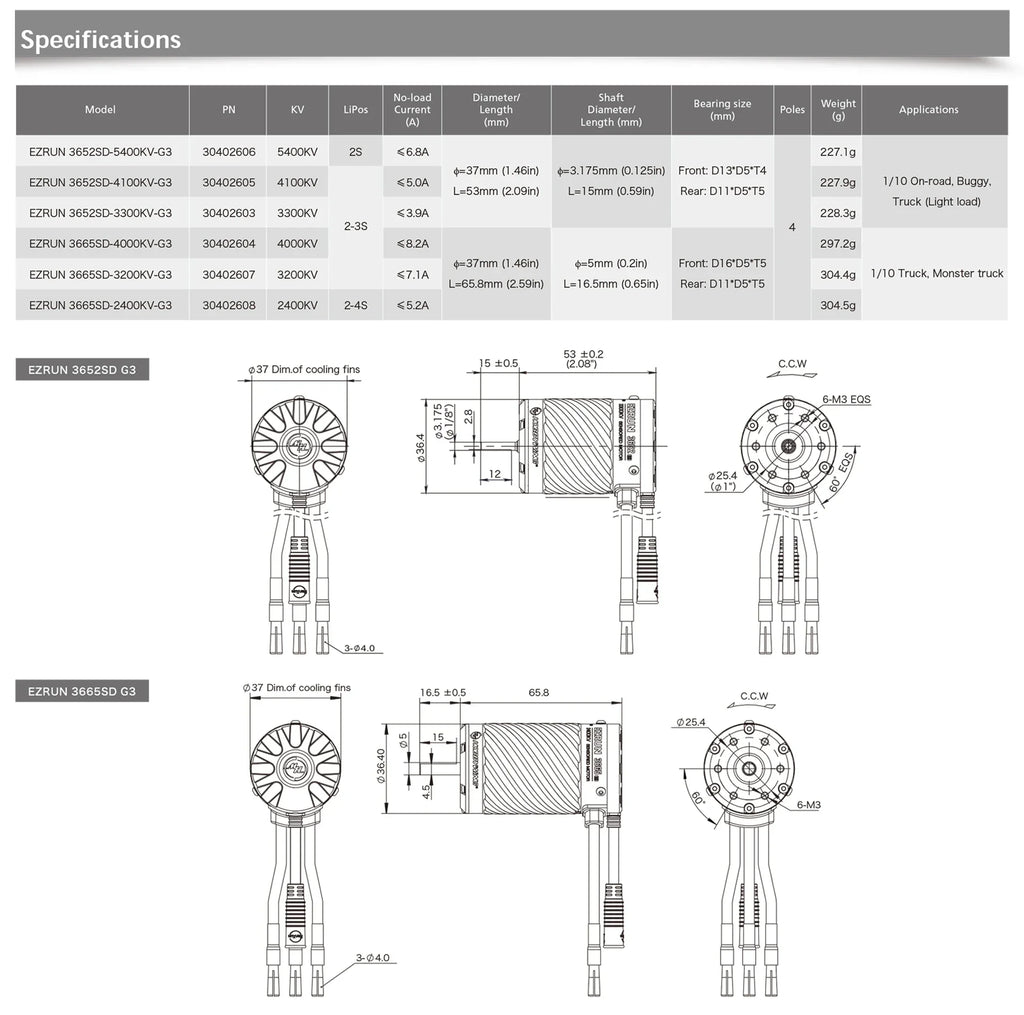

3652SD Motor Specification:

Brand name: HobbyWing

Iterm Name: EZRUN G3 Brushless Motor

Scale: 1/10th

Brushed/Brushless: BL

Sensored/Sensorless: SD

Pole Count: 4

O.D.(mm): 37

Length (mm): 53

Shaft Diameter (mm): 3.175(0.125in)

Weight (g): 228g

Front Bearing: D13*D5*T4

Rear Bearing: D11*D5*T5

Applications: 1/10th On-Road Off-Road Short Course Truck(Light-duty)

3300KV

LiPo Cells: 2-3S

No-load Current(A): ≤3.9A

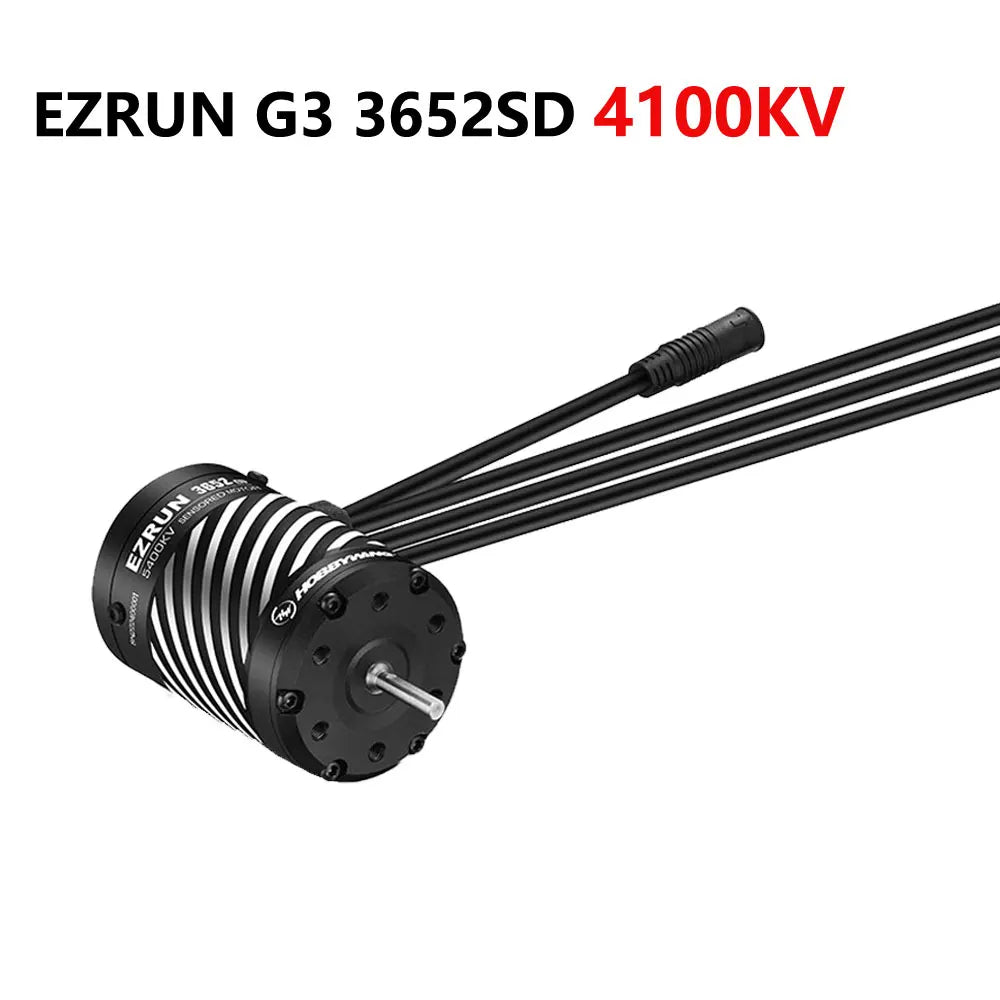

4100KV

LiPo Cells: 2-3S

No-load Current(A): ≤5.0A

5400KV

LiPo Cells: 2S

No-load Current(A): ≤6.8A

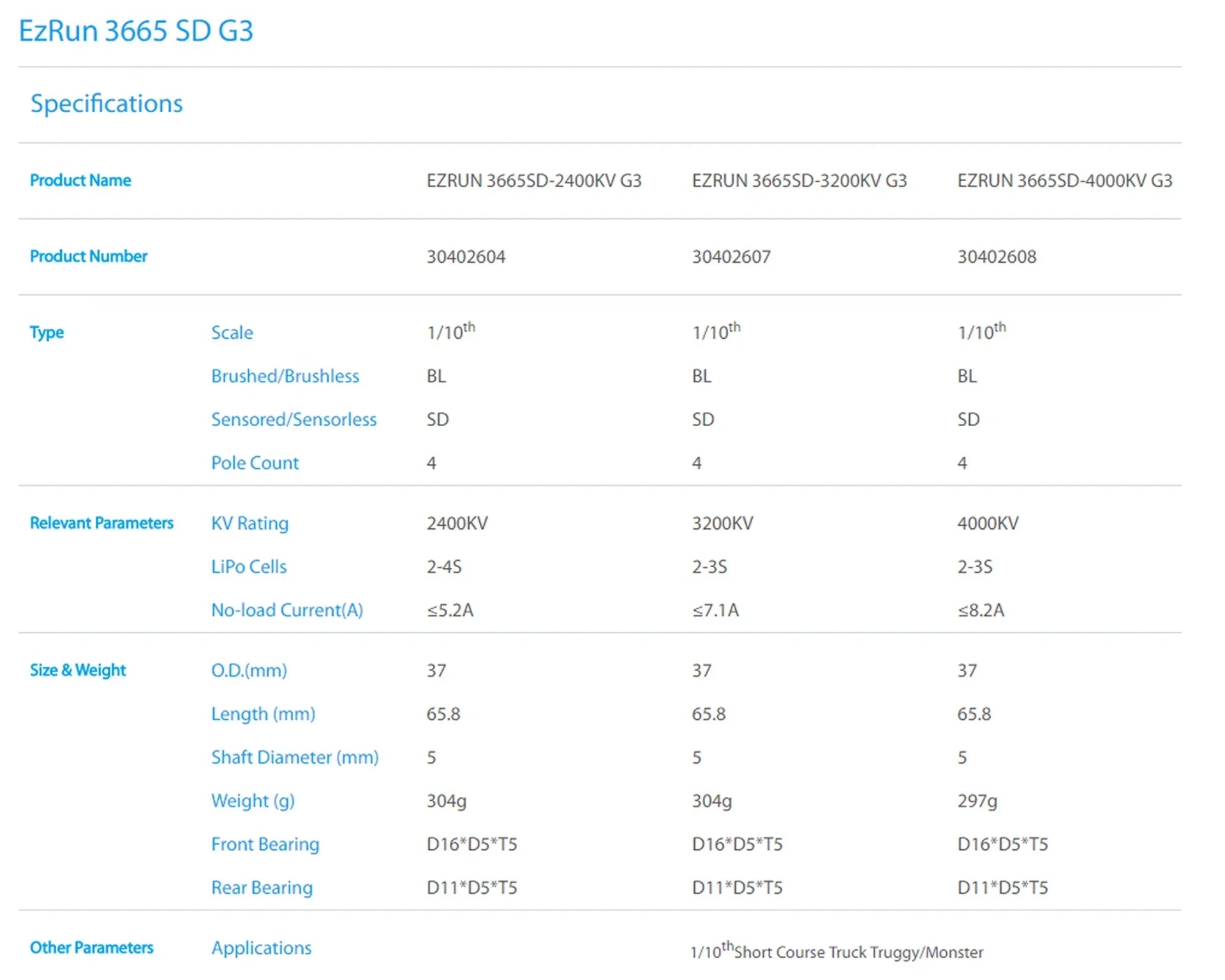

3665SD Motor Specification:

Brand name: HobbyWing

Iterm Name: EZRUN G3 Brushless Motor

Scale: 1/10th

Brushed/Brushless: BL

Sensored/Sensorless: SD

Pole Count: 4

O.D.(mm): 37

Length (mm): 65.8

Shaft Diameter (mm): 5.0

Weight (g): 304g

Front Bearing: D16*D5*T5

Rear Bearing: D11*D5*T5

Applications: 1/10th Short Course Truck Truggy Monster

2400KV

LiPo Cells: 2-4S

No-load Current(A): ≤5.2A

3200KV

LiPo Cells: 2-3S

No-load Current(A): ≤7.1A

4000KV

LiPo Cells: 2-3S

No-load Current(A): ≤8.2A

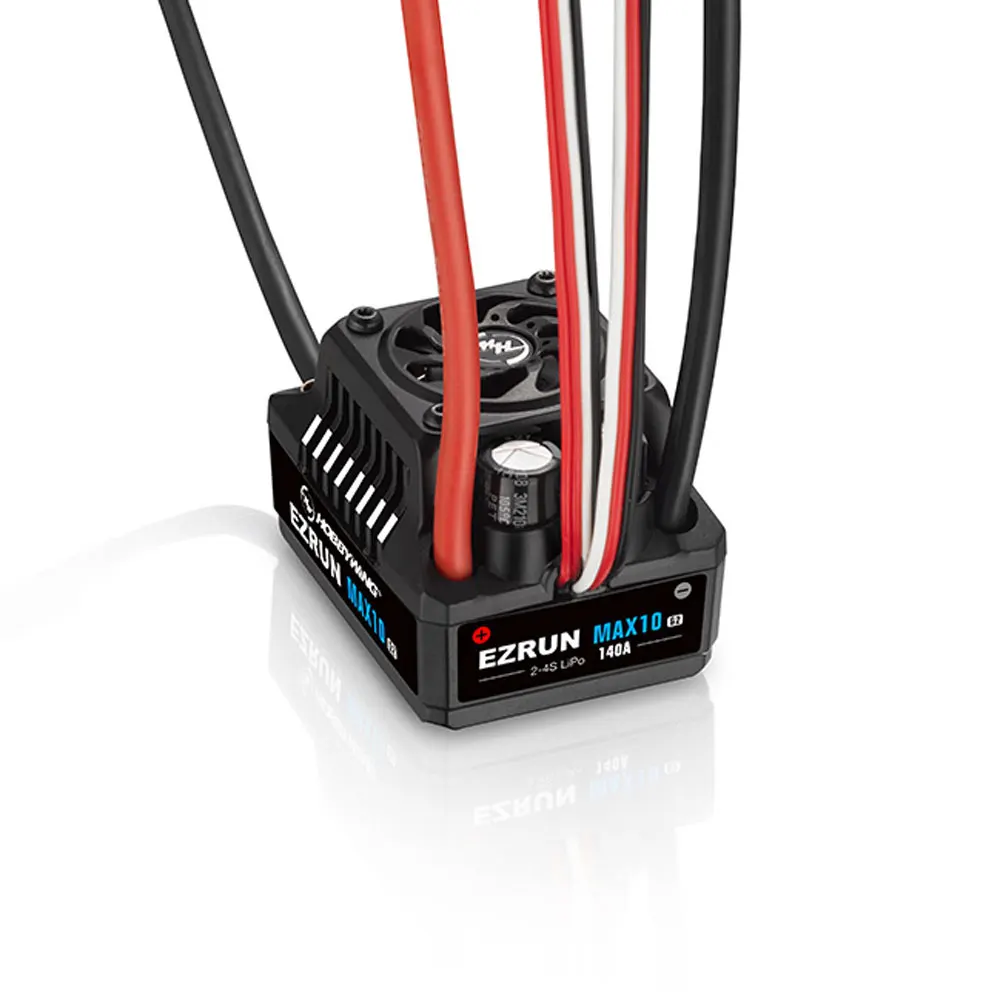

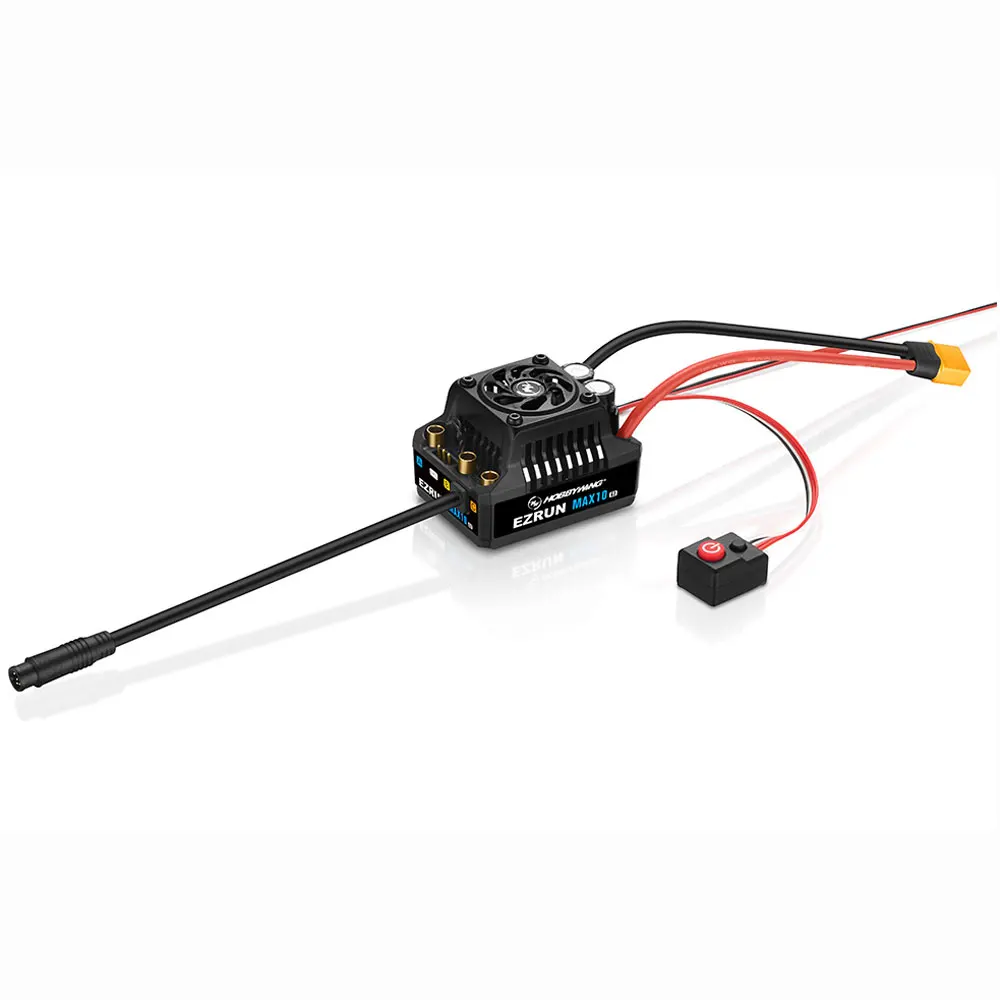

ESC Description:

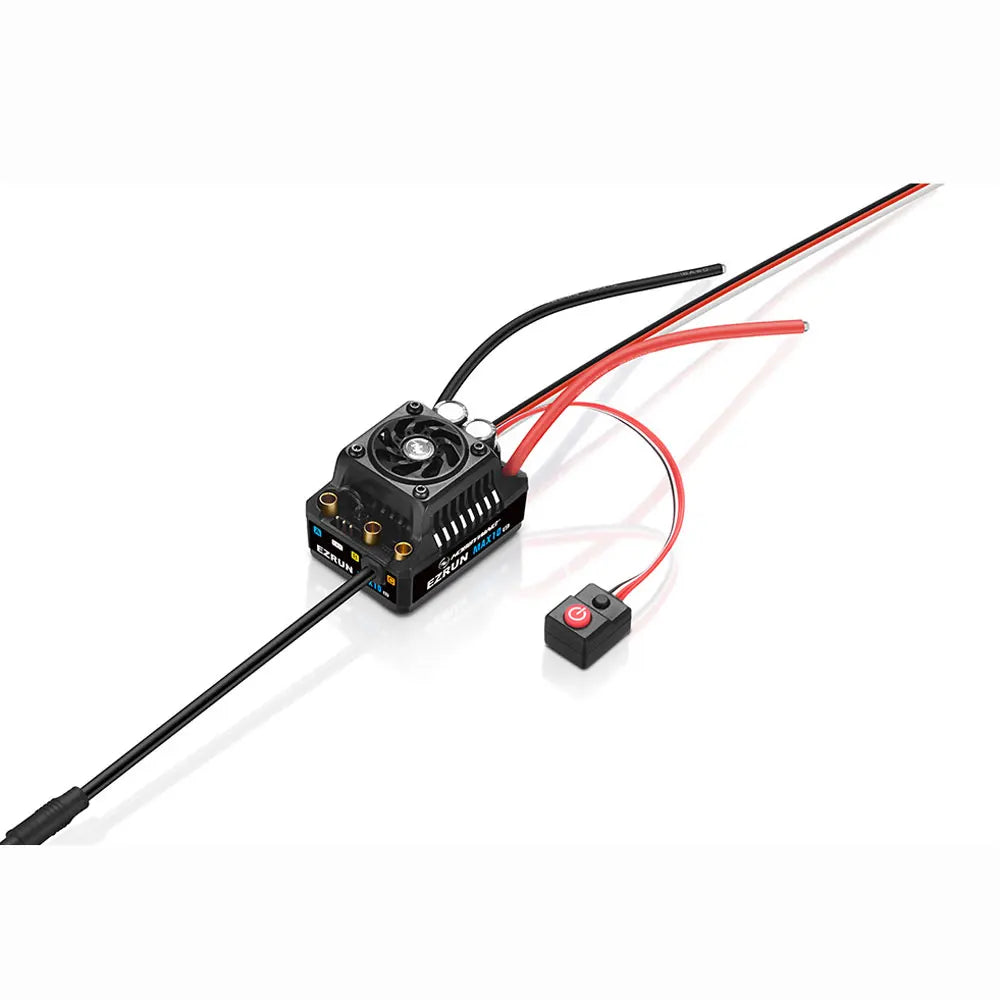

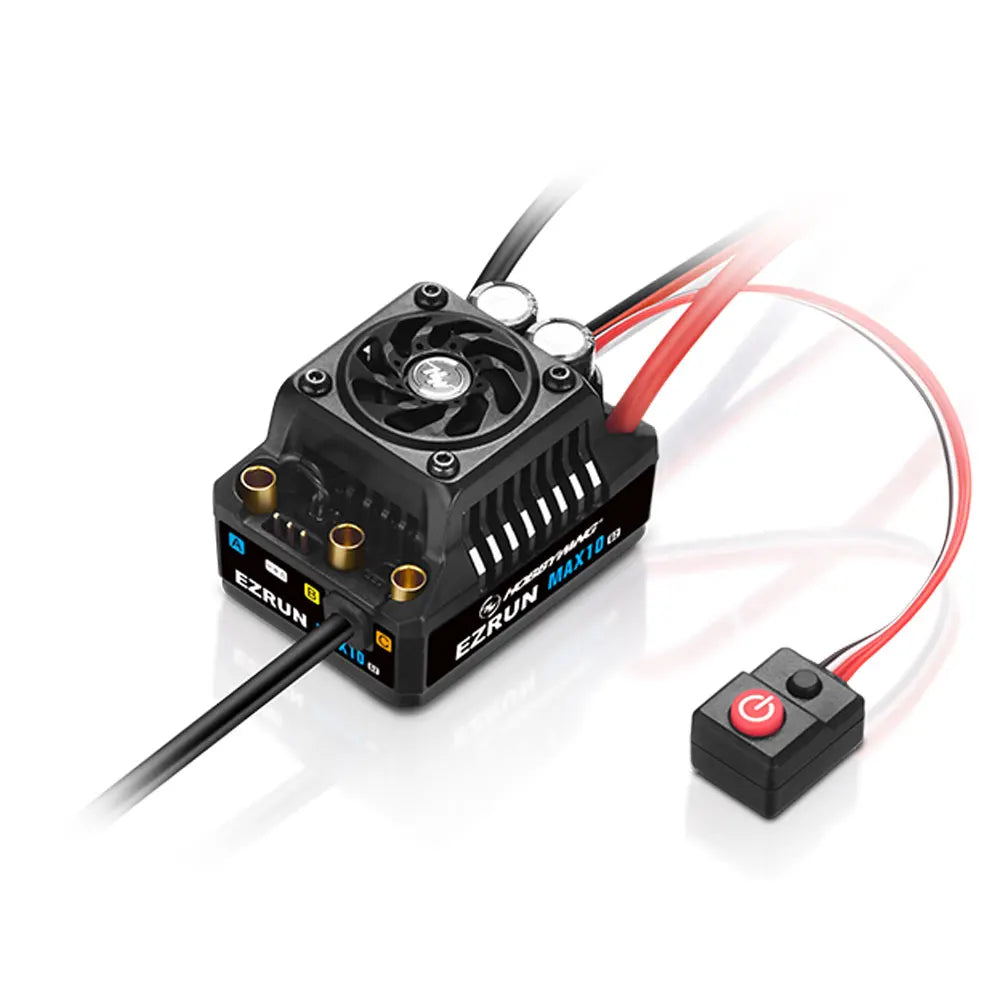

Hobbywing EZRUN MAX10 G2 80A/140A ESC suitable for 1/10 RC Car Monster Trucks On-road/Off-road Short Course Truck.Coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.

ESC Features:

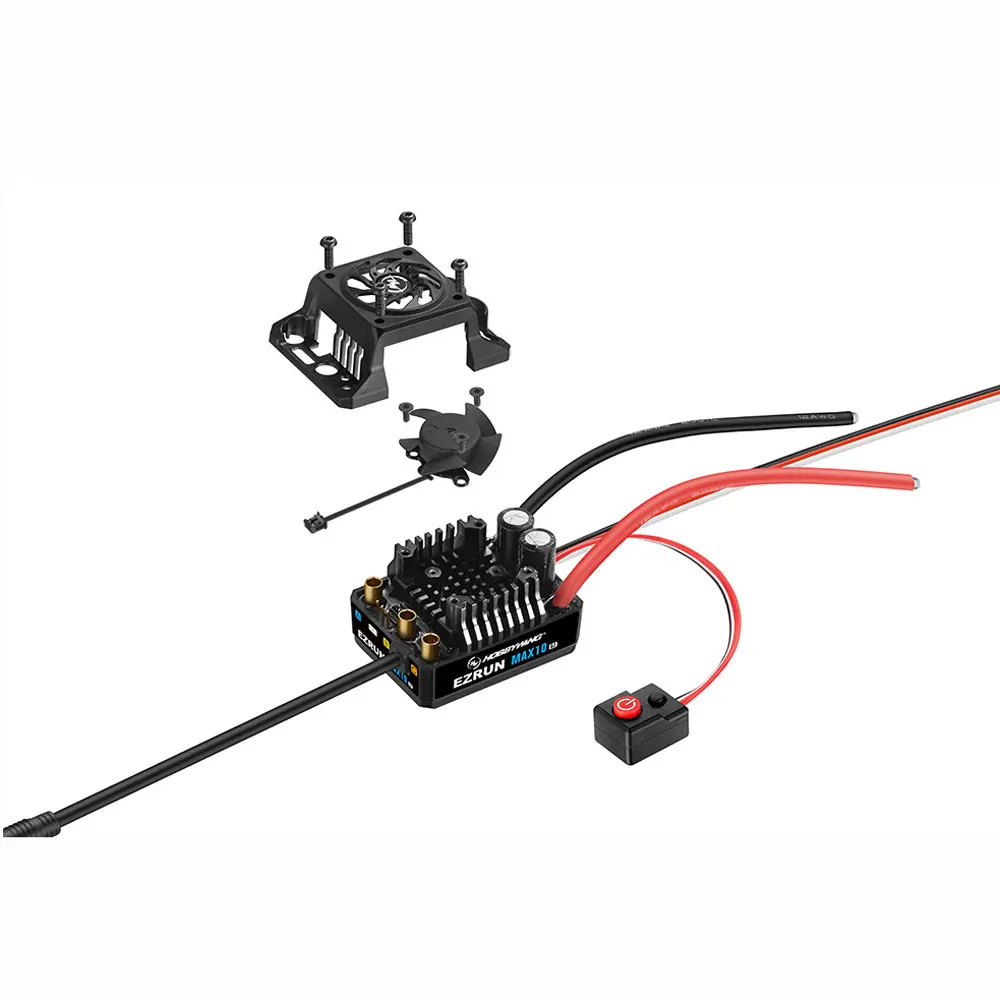

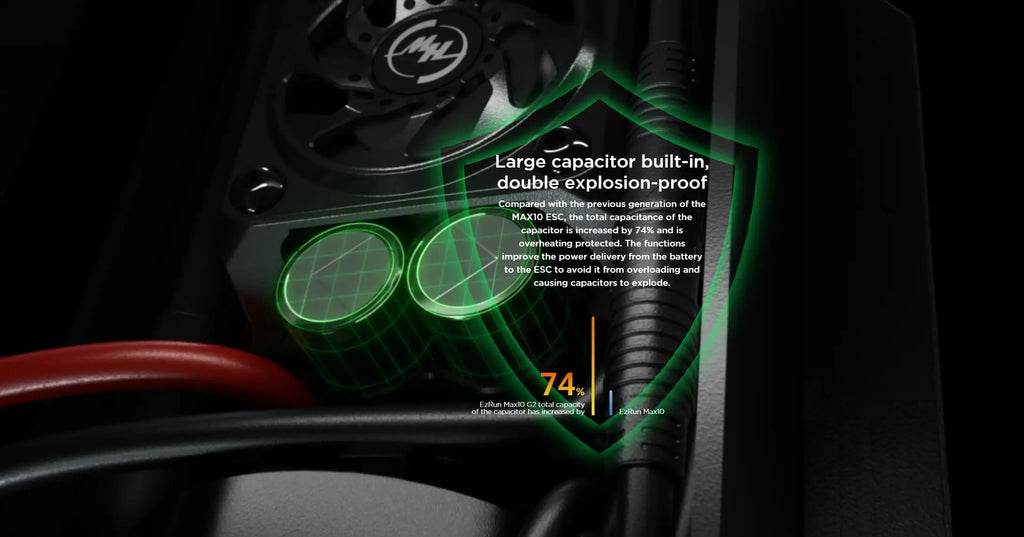

1.Hobbywing ESC: Hobbywing EZRUN MAX10 G2 80A/140A ESC has Smart technology .Patented frameless fan increases heat dissipation effectiveness.Large capacitor built-in, double explosion-proof. Smart freewheeling technology, higher efficiency

2.RC ESC Application: The MAX10 ESC suitable for 1/10 RC Car Monster Trucks On-road/Off-road Short Course Truck

3.4S ESC: Input Voltage: 2-4S Lipo/140A 2-3S Lipo/80A

4.Brushless ESC: Supports Turbo timing adjustment of up to 32 degrees,and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more.Turbo timing adjustment 32Degrees.The speed is significantly increased up to 25%

5.Sensored ESC: The Ezrun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of throttle response and perfectly matches the Ezrun 3652/3665 SD G3 motors.Note: Overheating protection is ONLY possible when it is paired with Hobbywing Ezrun, 3652 3665 G3 motor.

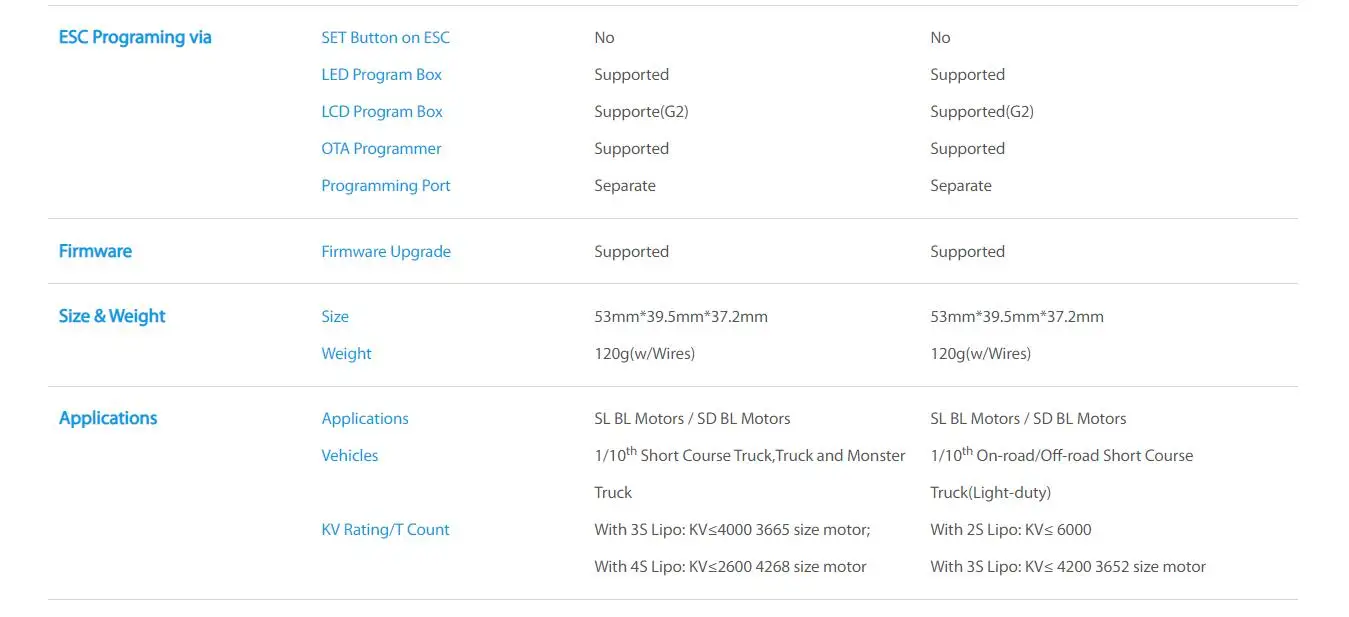

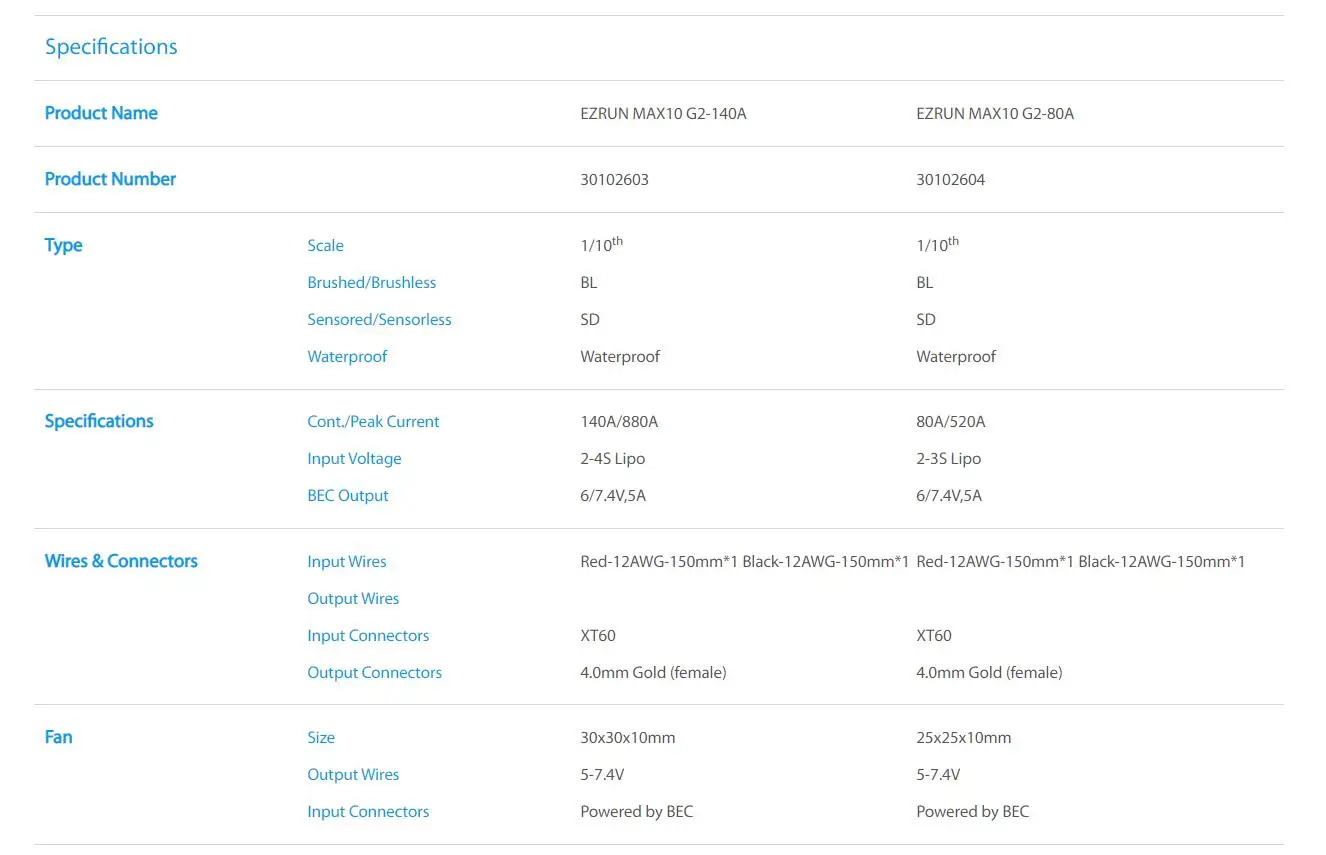

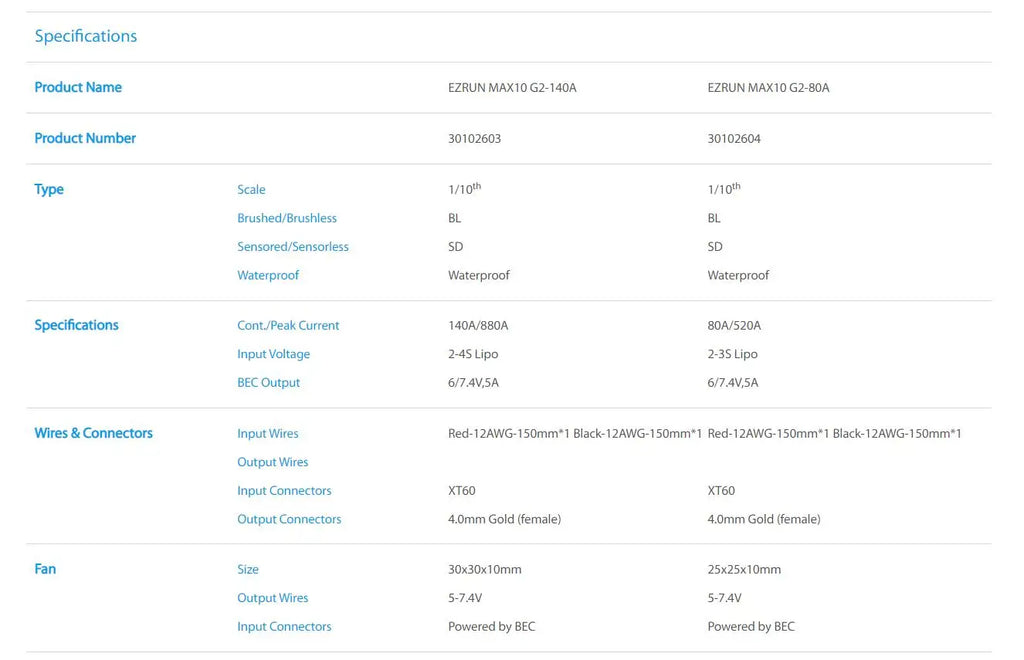

ESC Specification:

EZRUN MAX10 G2-80A ESC

Brand: Hobbywing

Scale: 1/10

Brushed/Brushless: BL

Sensored/Sensorless: SD

Waterproof: Waterproof

Cont./Peak Curent: 80A/520A

Input Voltage: 2-3S Lipo

BEC: 6V/7.4V/5A

Output Connectors: 4.0mm Gold (female)

Size: 53mm*39.5mm*37.2mm

Weight: 120g

Vehicles: On-Road Off-Road Short Course Truck(Light-duty)

EZRUN MAX10 G2-140A ESC

Brand: Hobbywing

Scale: 1/10

Brushed/Brushless: BL

Sensored/Sensorless: SD

Waterproof: Waterproof

Cont./Peak Curent: 140A/880A

Input Voltage: 2-4S Lipo

BEC: 6V/7.4V/5A

Output Connectors: 4.0mm Gold (female)

Size: 53mm*39.5mm*37.2mm

Weight: 120g

Vehicles: 1/10th Short Course Truck Truck and Monster Truck

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
