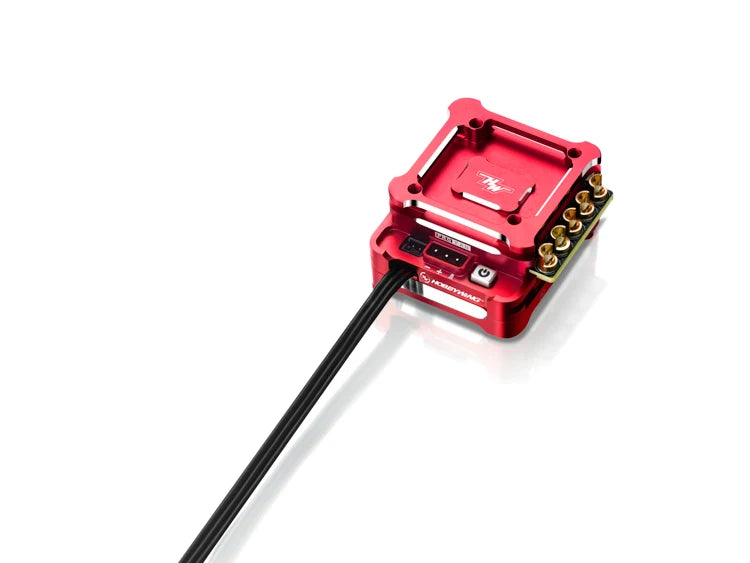

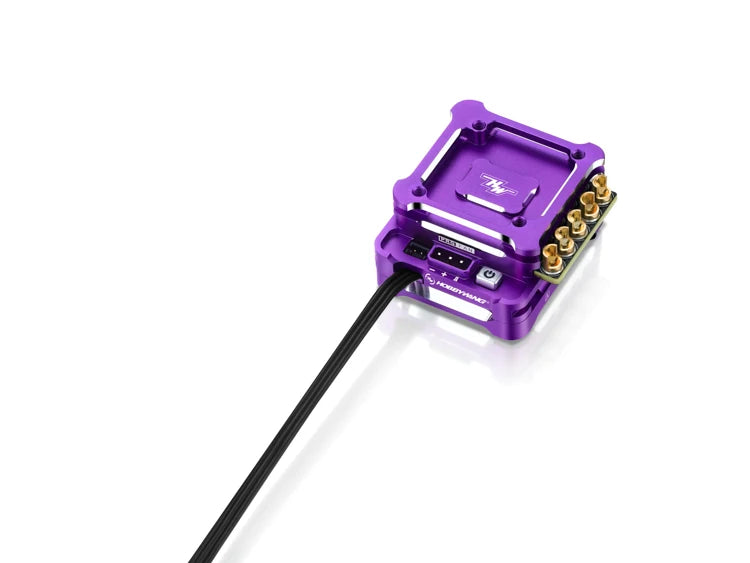

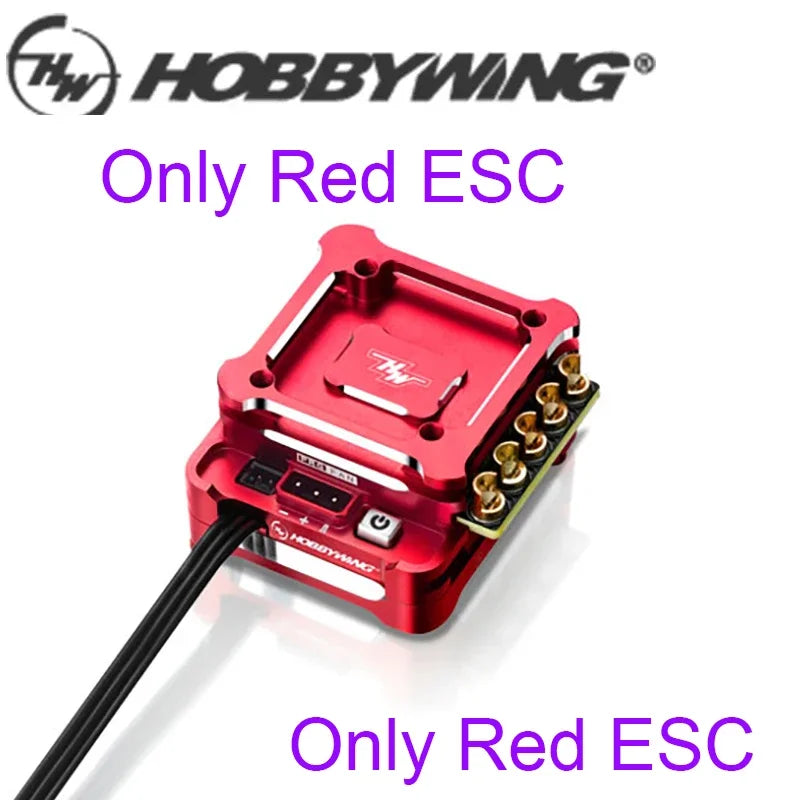

Key Features(ESC):

1. Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.

2. Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.

3. Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).

4. Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection),reverse polarity protection (the external standard cappack will still be damaged if battery reversal occurs).

5. Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.

6. Firmware upgrade via Hobbywing multifunction LCD program box or OTA Programmer (item sold separately).

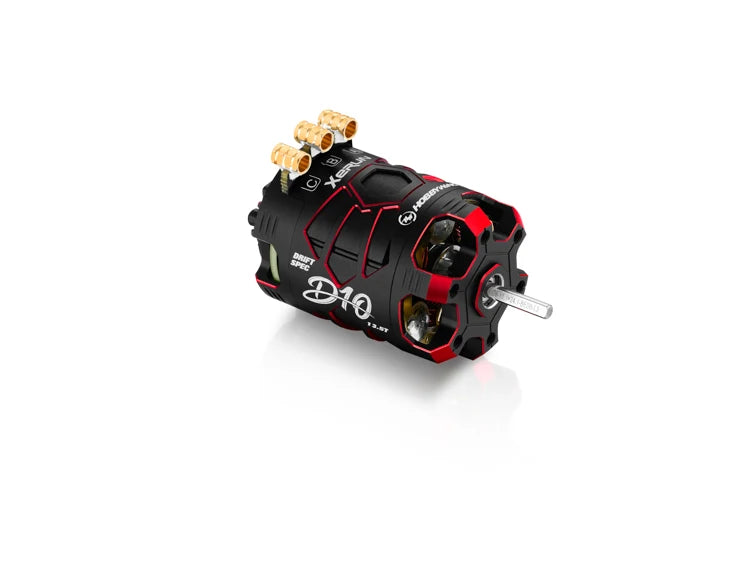

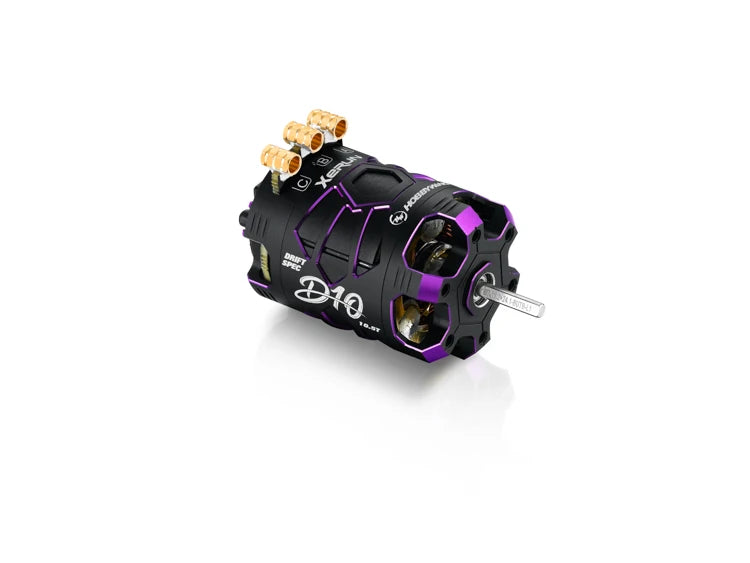

Key Features(Motor):

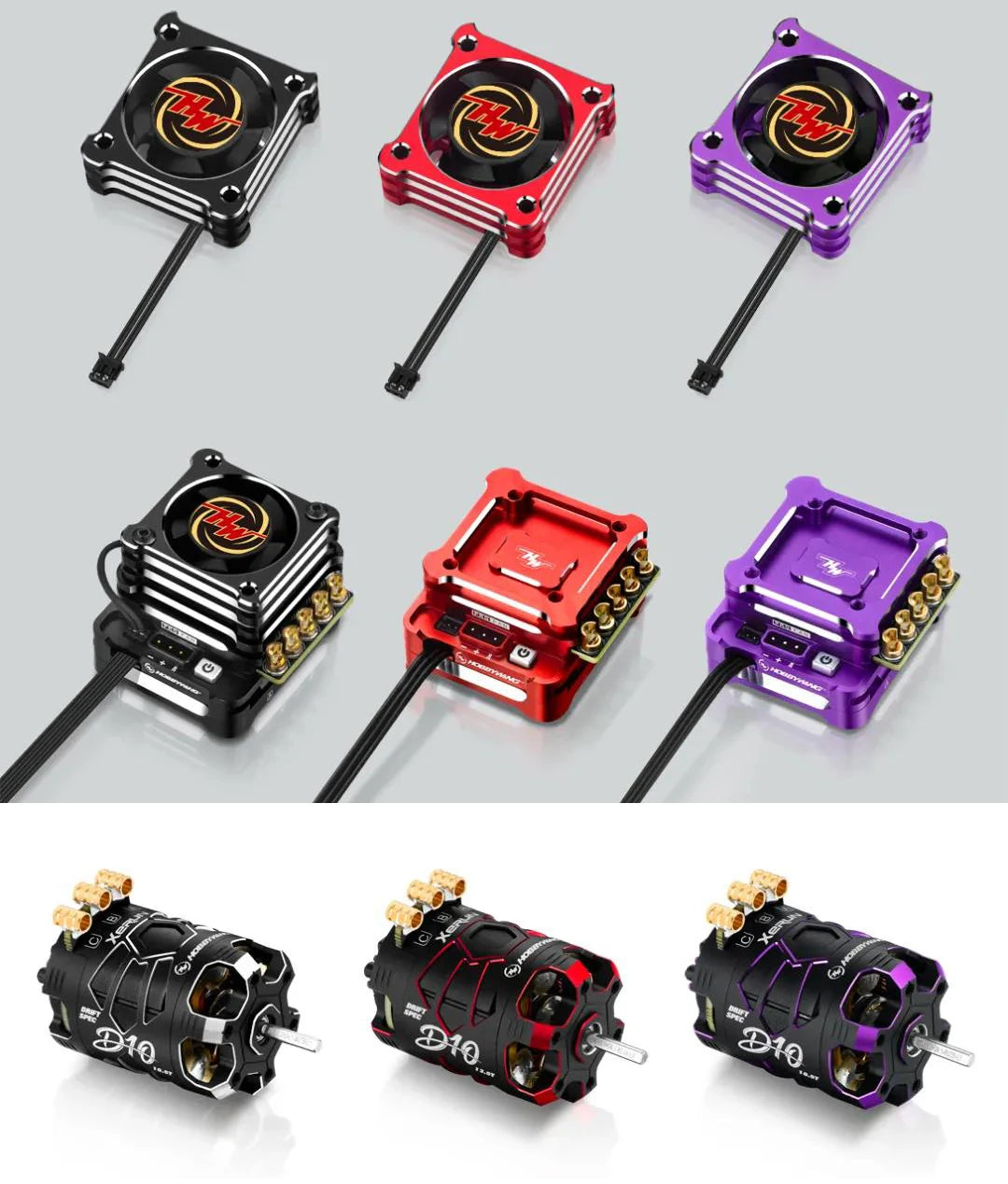

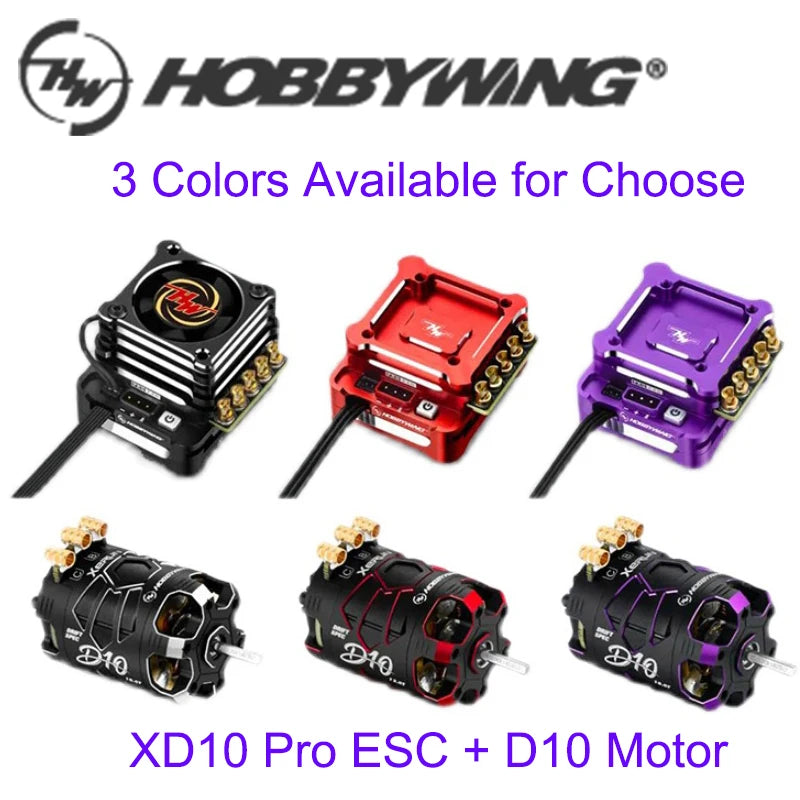

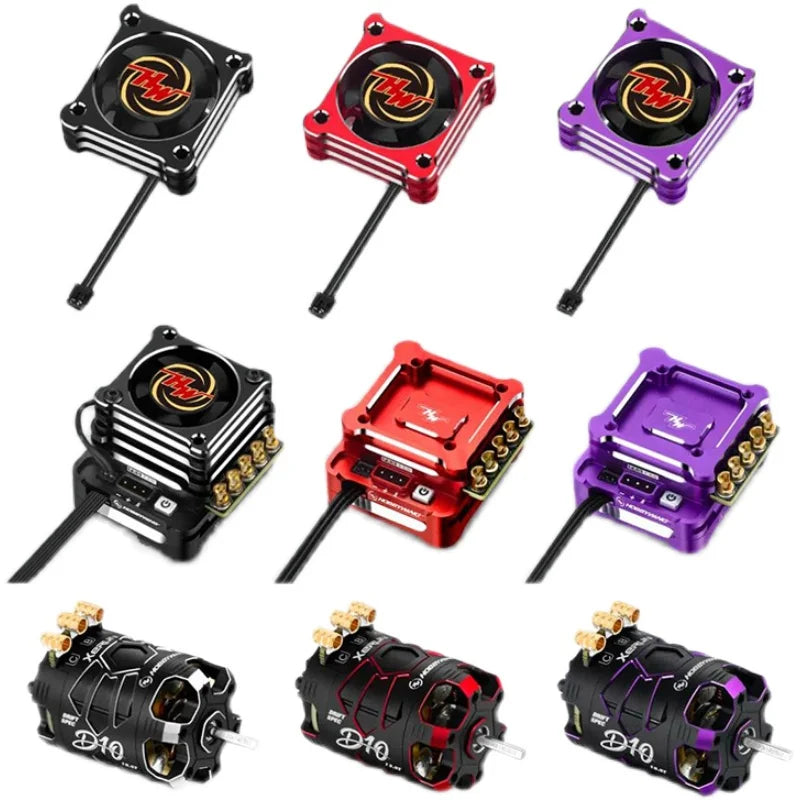

1. Elegantly designed for drift, the Xerun D10 motors provide the ideal colors to perfectly match your drift machines. Available in Black, Red, and Purple.

2. Banana plug-in quick-swap design, the motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors. 3.5mm male head is also included in the XD10 ESC.

3. New stator designed for drift applications, the new motor stator is optimized for drift and improves motor efficiency in drift applications. Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability while greatly improves motor efficiency.

4. Lightweight, the 10.5T motor weighs approximately 158g while the 13.5T is at 165g (including 3 gold insert weights). The lightweight motor allows user to easily tweak their weight bias on their car.

5. Equipped with fan rotor, providing great heat dissipation, power the special-shaped gold fan on the rotor heats the motor while making a pleasant sound, especially when Turbo is turned on.

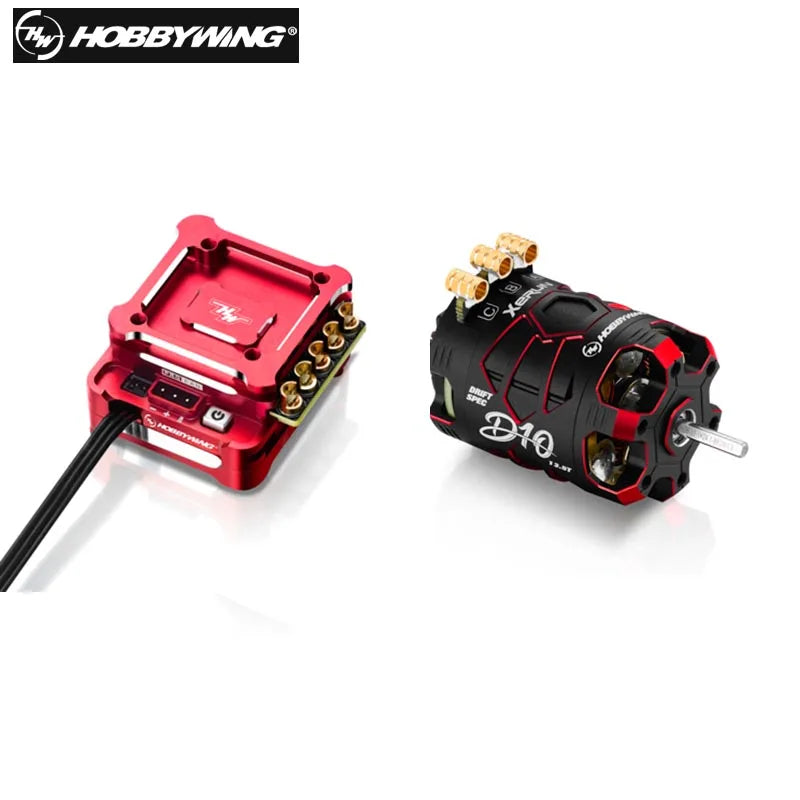

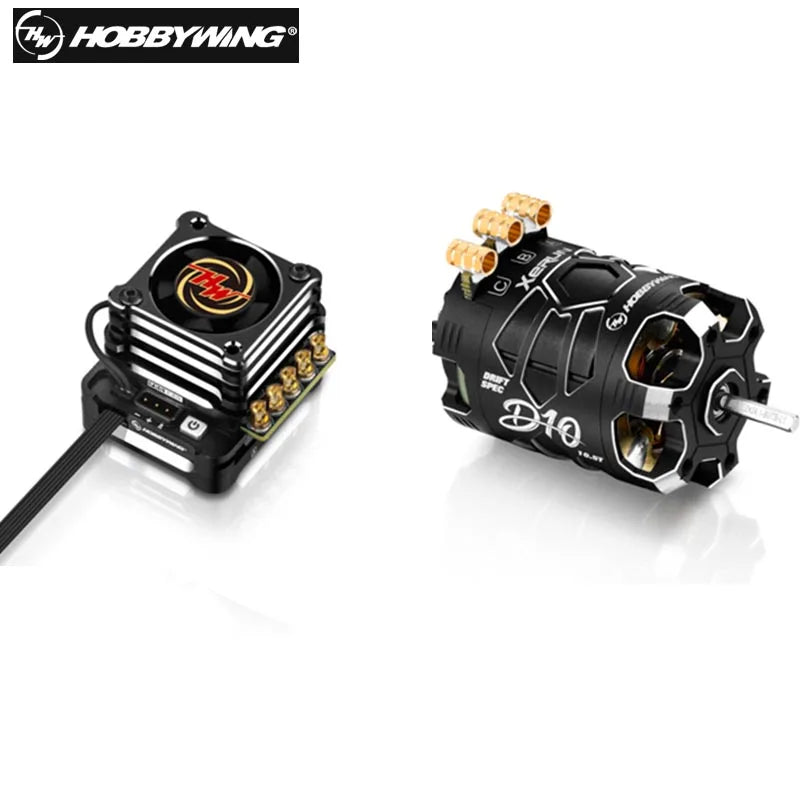

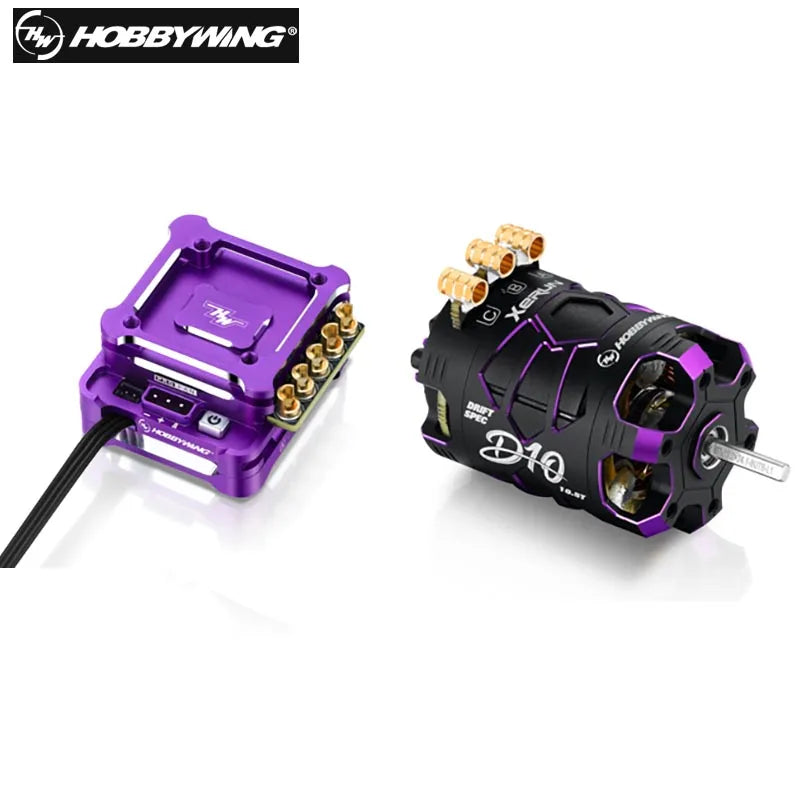

6. Best paired with XD10 PRO ESC

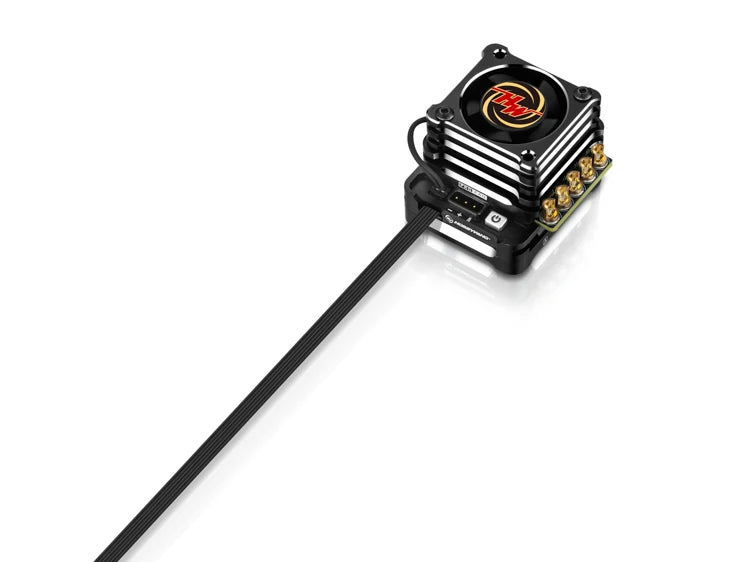

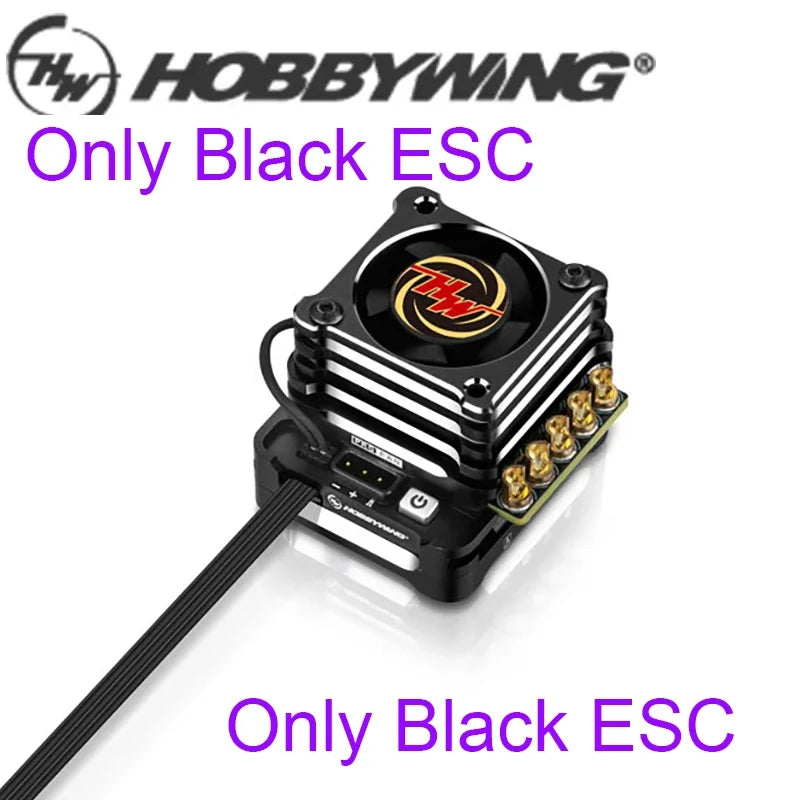

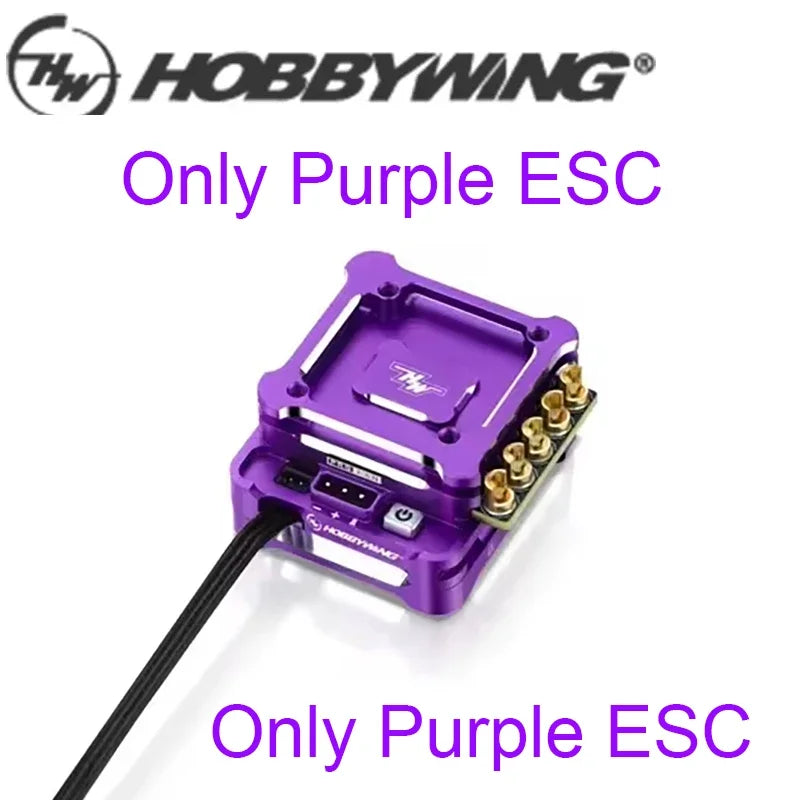

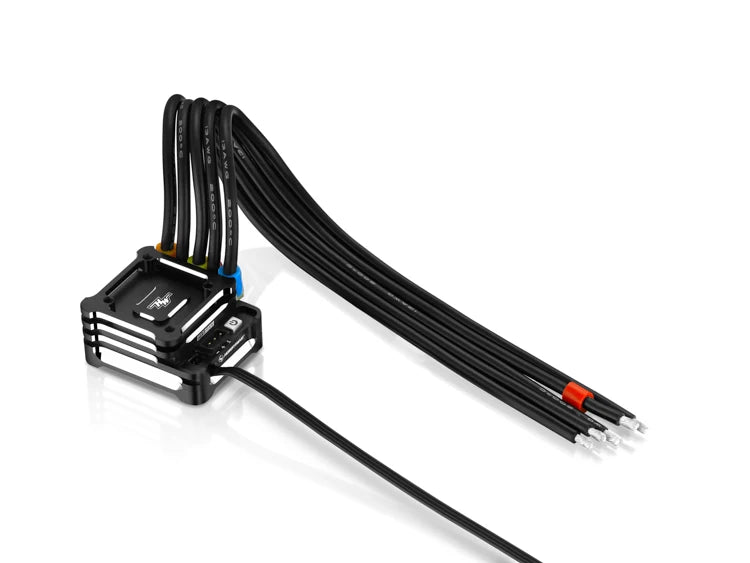

ESC Specification:

Application: 1/10th drift car

Cont./Peak Current: 100A/800A

Input Voltage: 2S LiPo/4-6S NiMH

BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)

Wires & Connectors    Standard: 13AWG 200mm

Programming device: LCD program box

OTA programmer: (Available through Firmware update)

Firmware    LCD Program box via USB software (PC only)

OTA (iOS / Android)

Size & Weight: 40.7x35.0x32.0mm (w/Fan)

Weight: 95g (w/ wires)

Motor Limit: Brushless Motor Limit with 2S LiPo/6S NiMH: KV Rating/T Count ≥8.5T

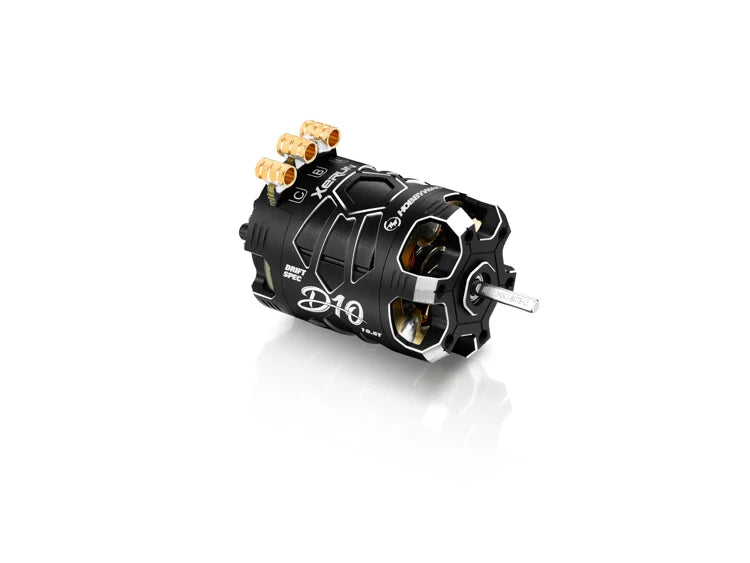

Motor Specification:

1/10th Drift car, 2S Lipo

2 POLE Super High-Efficiency brushless motor

Diameter/Length (mm): Φ=35.7mm(1.41") L=52.6mm(2.07")

Shaft Diameter/ Length (mm): Φ=3.175mm(0.125") L=15.0mm(0.591")



13.5T(2900KV):

KV / Lipo cells:2900kv /2-3S

Type: 1/10th, Brushless Sensored

Applications: 1/10th Drift car Sensorless or Sensored brushless Motors

Size O.D mm: 35.7

Length mm: 52.6

Stock Rotor: Φ5-12.1*24.1-BES*-L3

Weight (g):165



10.5T(4600KV):

KV / Lipo cells:2900kv /2-3S

Type:1/10th, Brushless Sensored

Applications: 1/10th Drift car Sensorless or Sensored brushless Motors

Size O.D mm: 35.7

Length mm: 52.6

Stock Rotor: Φ7-12.2*24.1-BUT*-L1

Weight (g): 157
