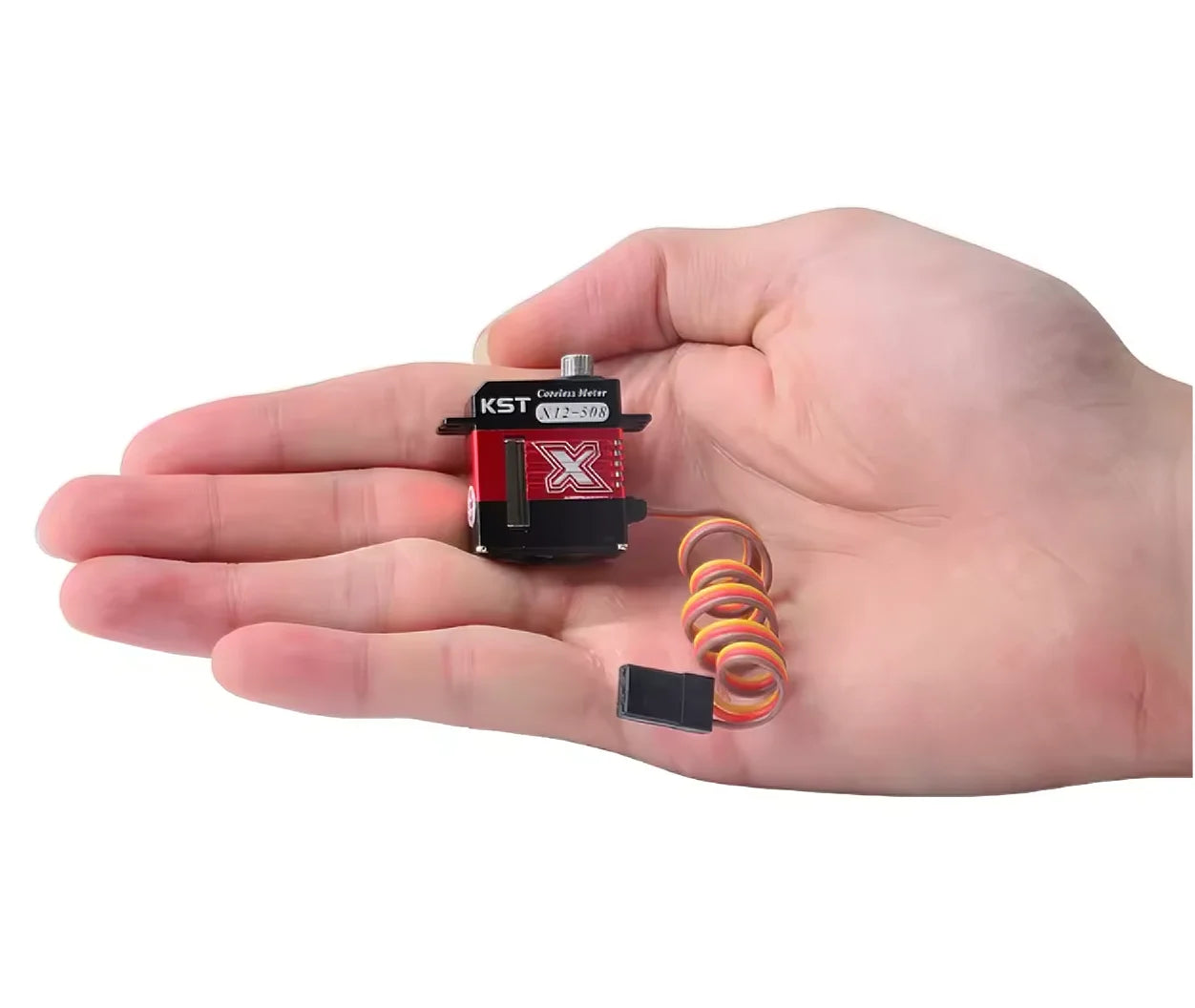

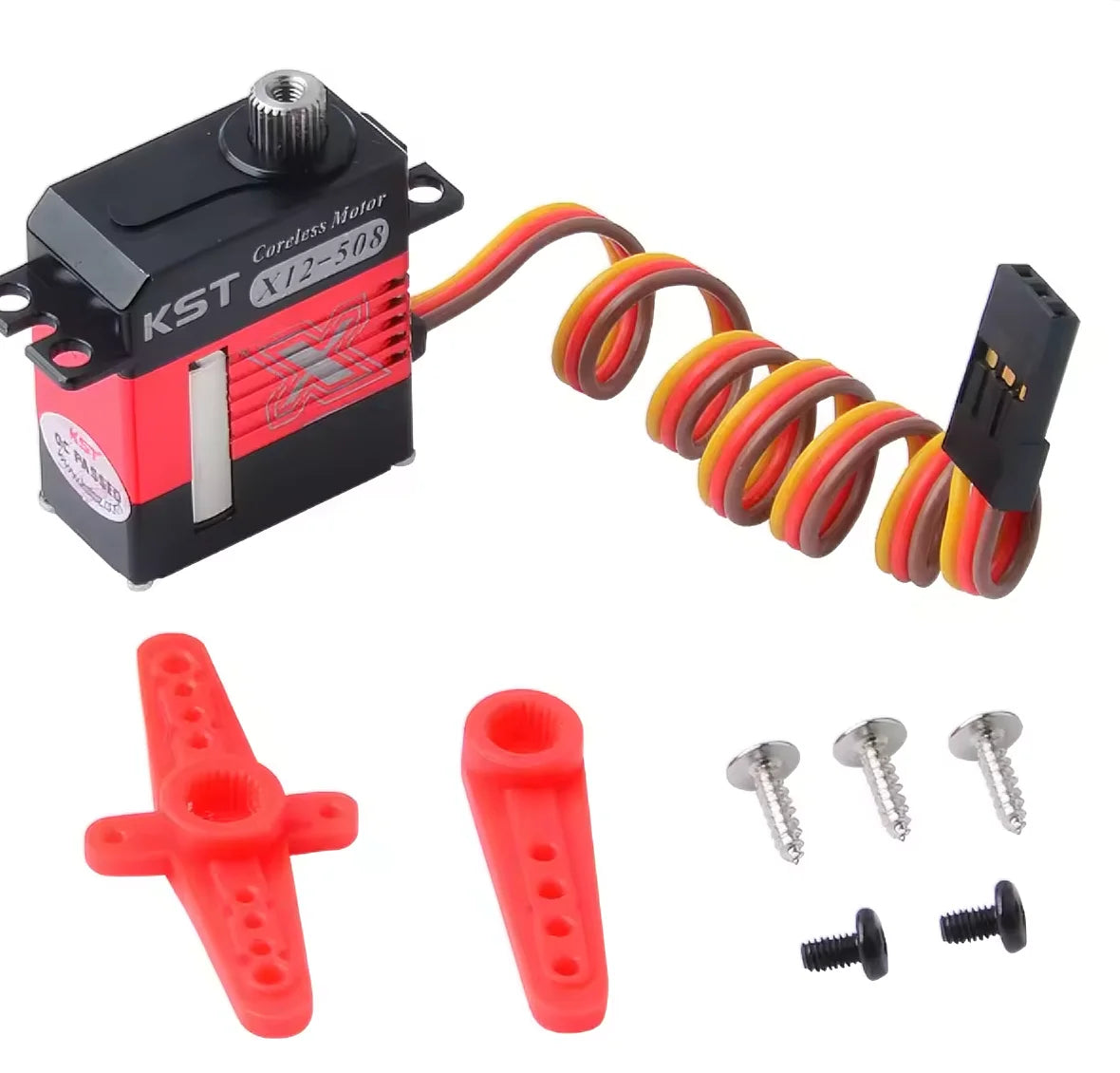

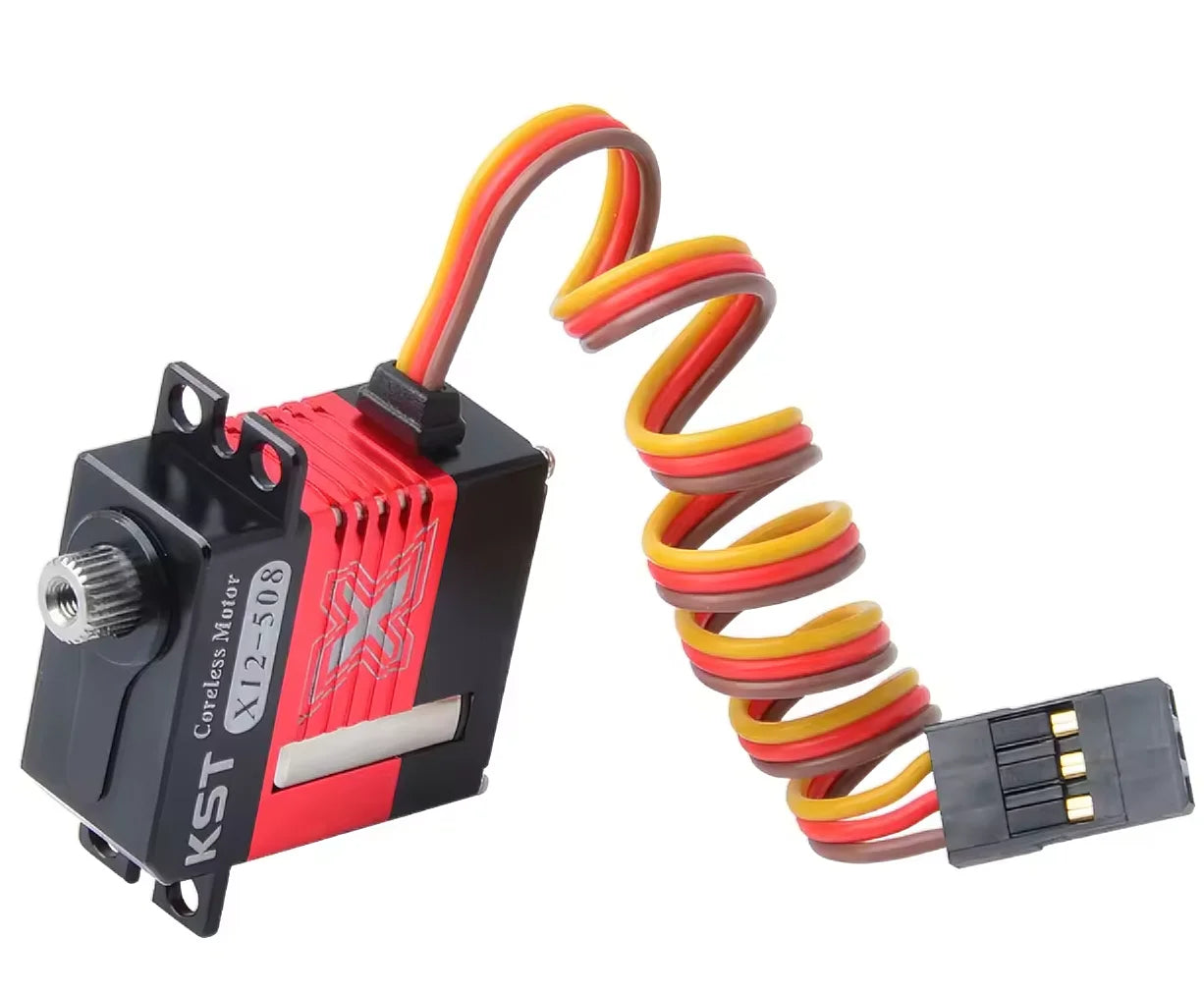

KST X12-508 Digital Micro Servo for RC Helicopters 6.2Kgf.cm Torque 0.07sec Response Time Metal Gear High Voltage HV
China Mainland
$78.89
Prix promotionnel
$78.89
Prix régulier
$0.00
Passer aux informations sur le produit

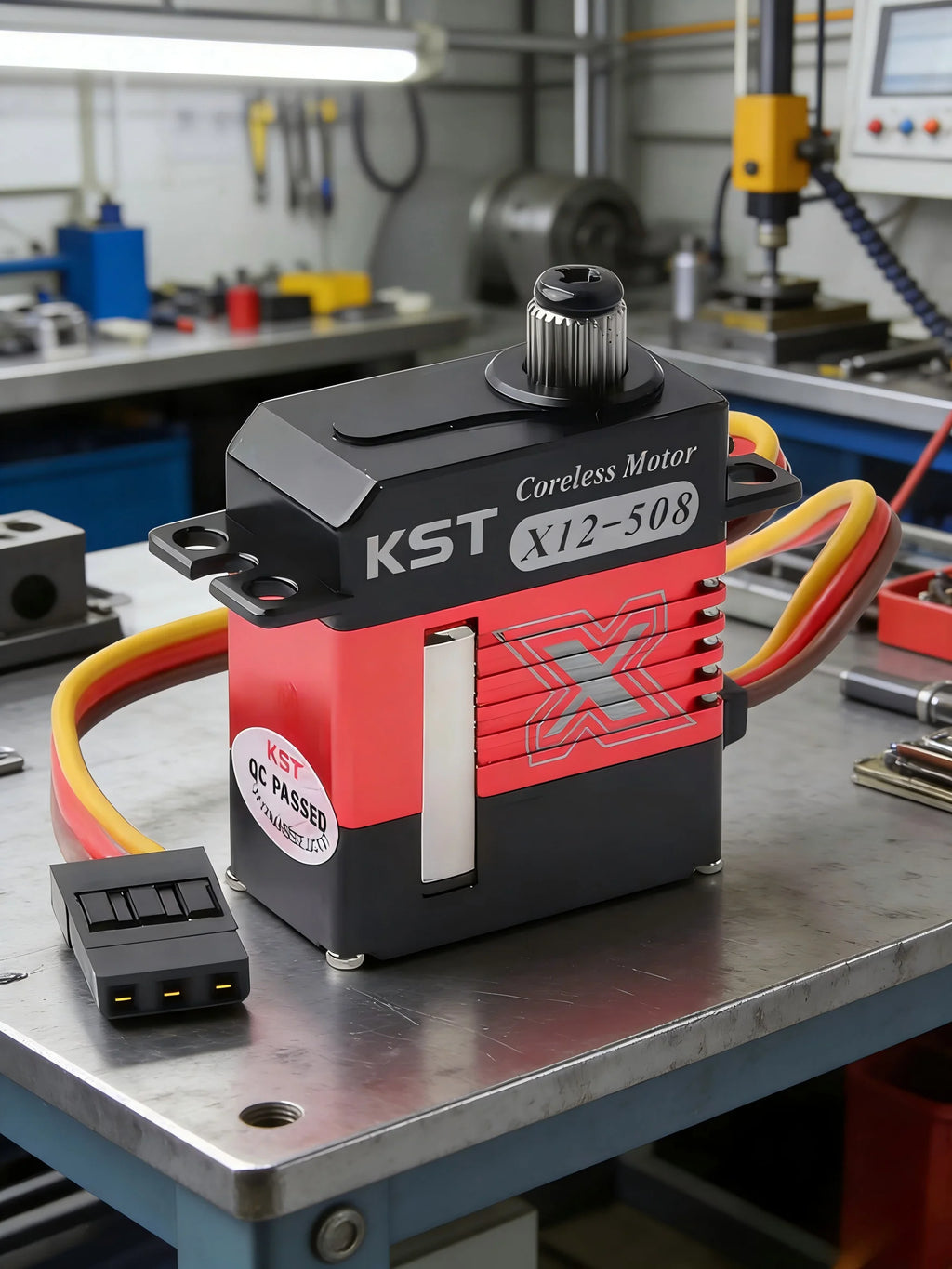

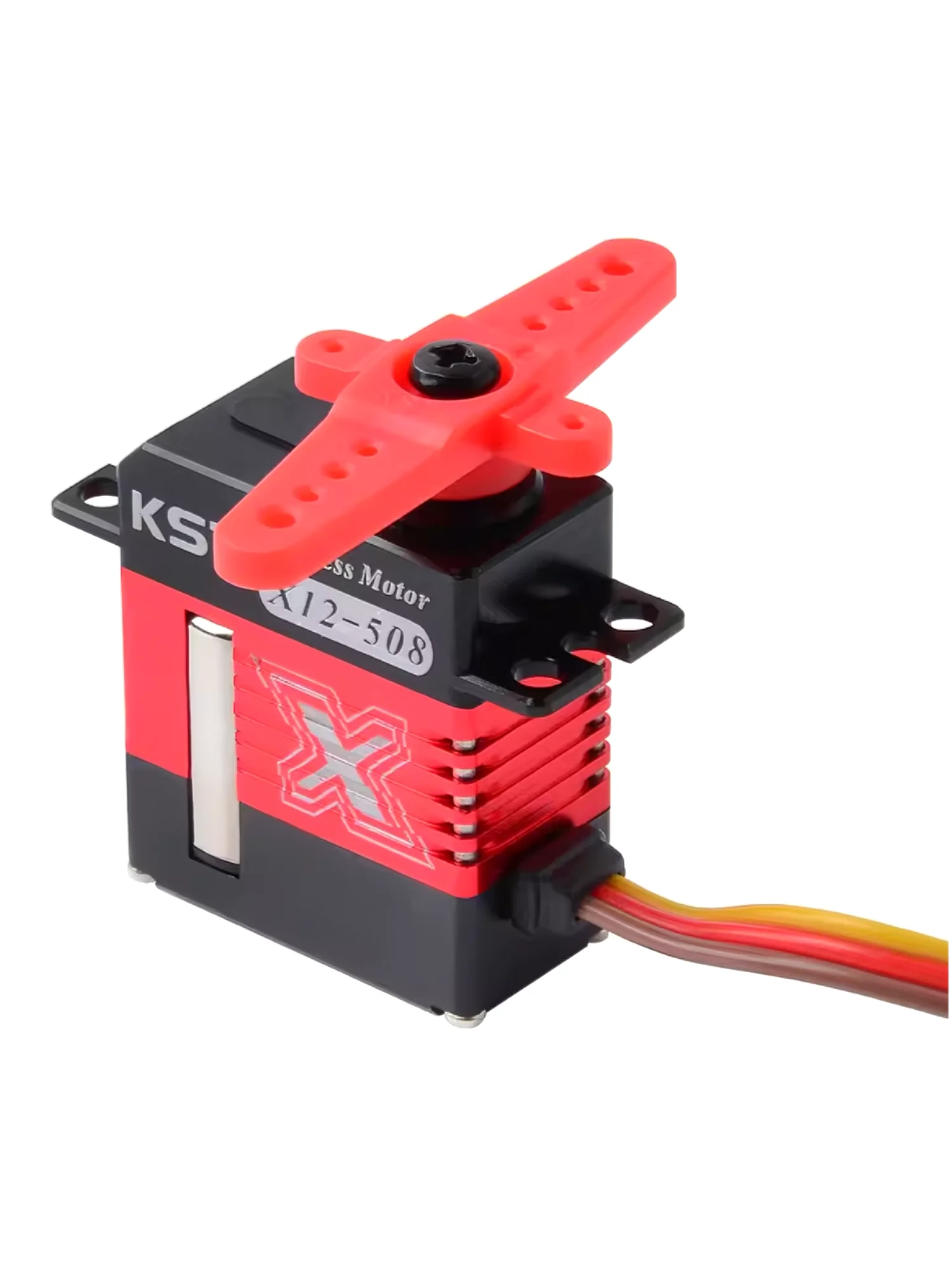

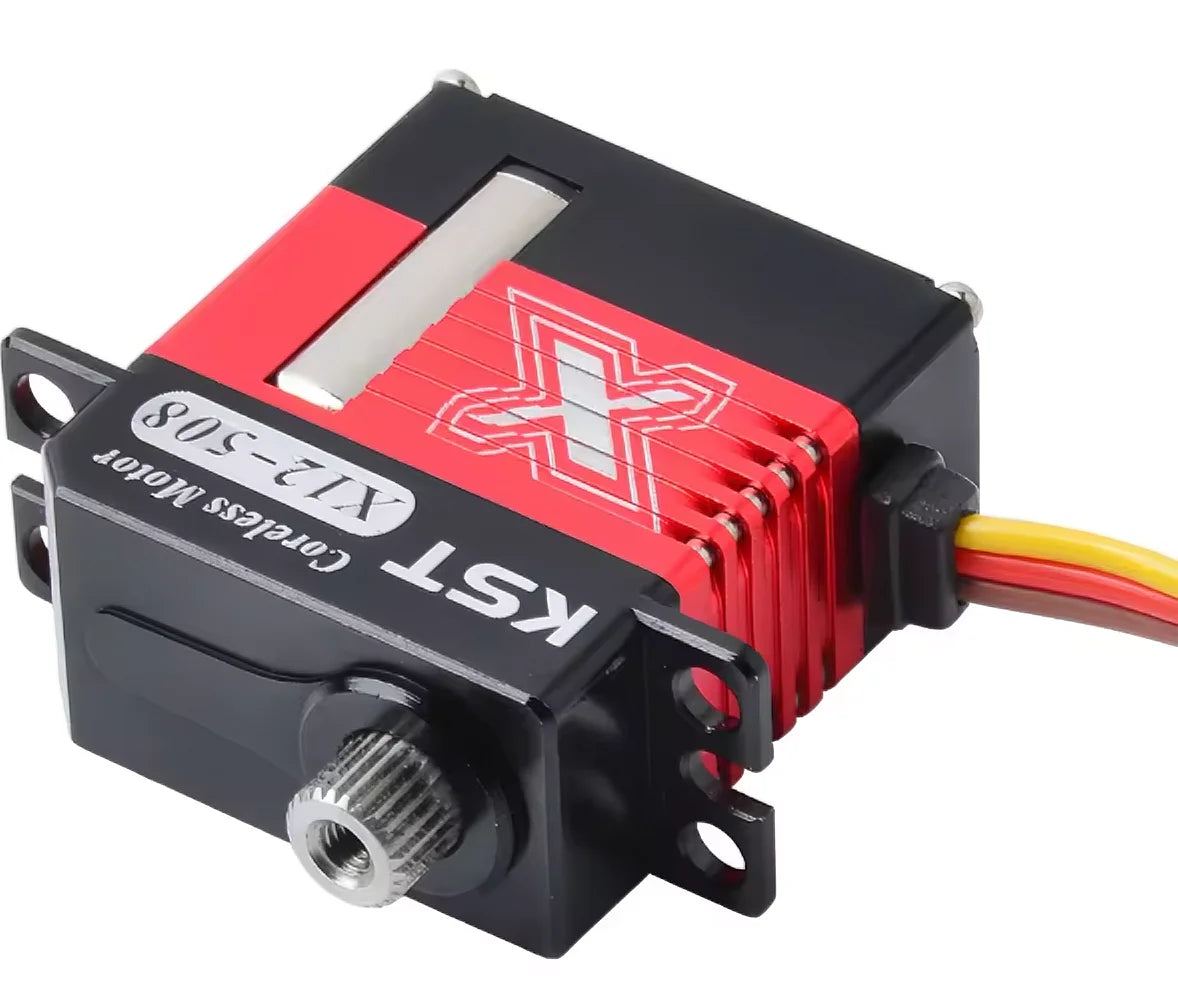

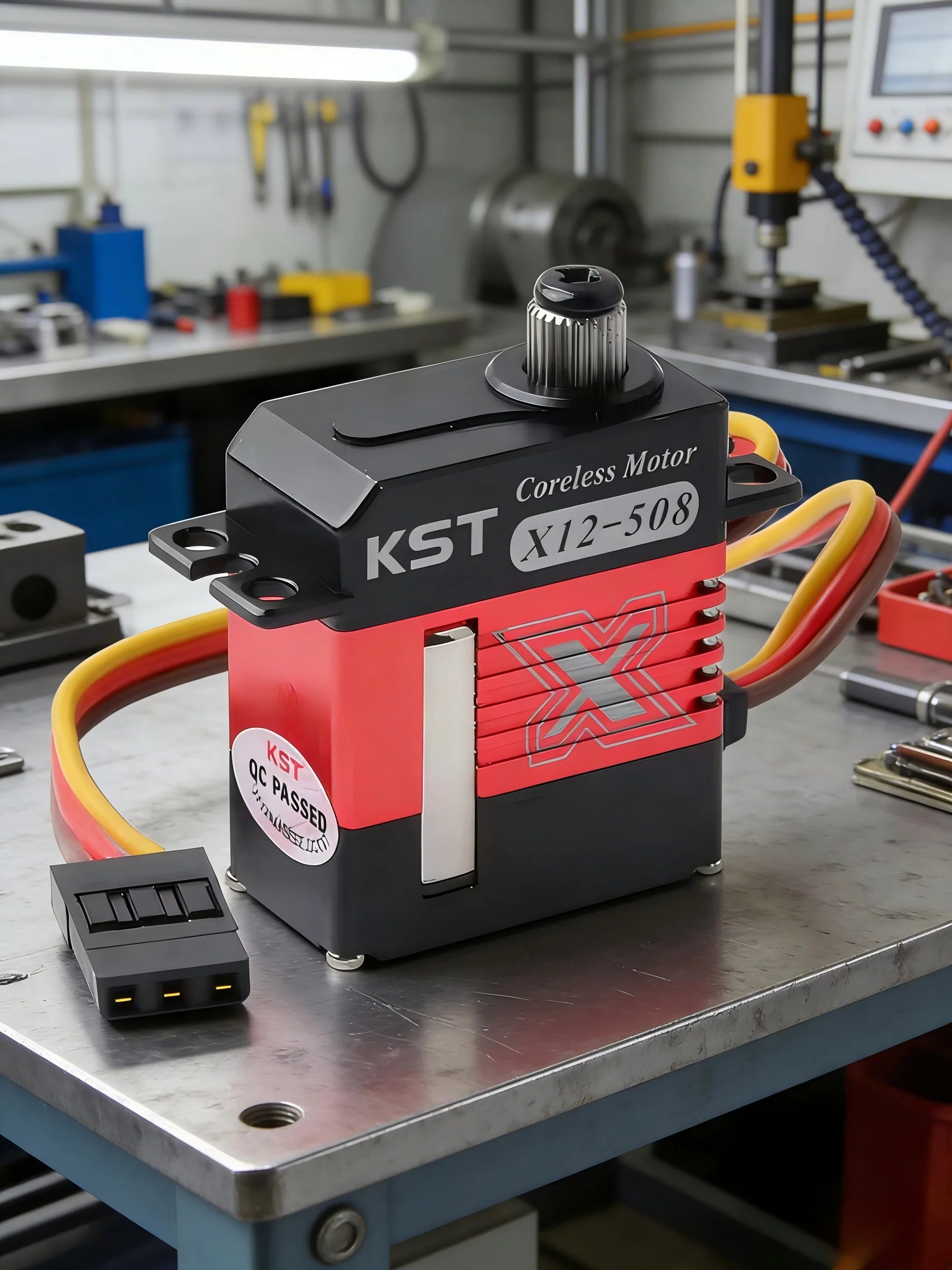

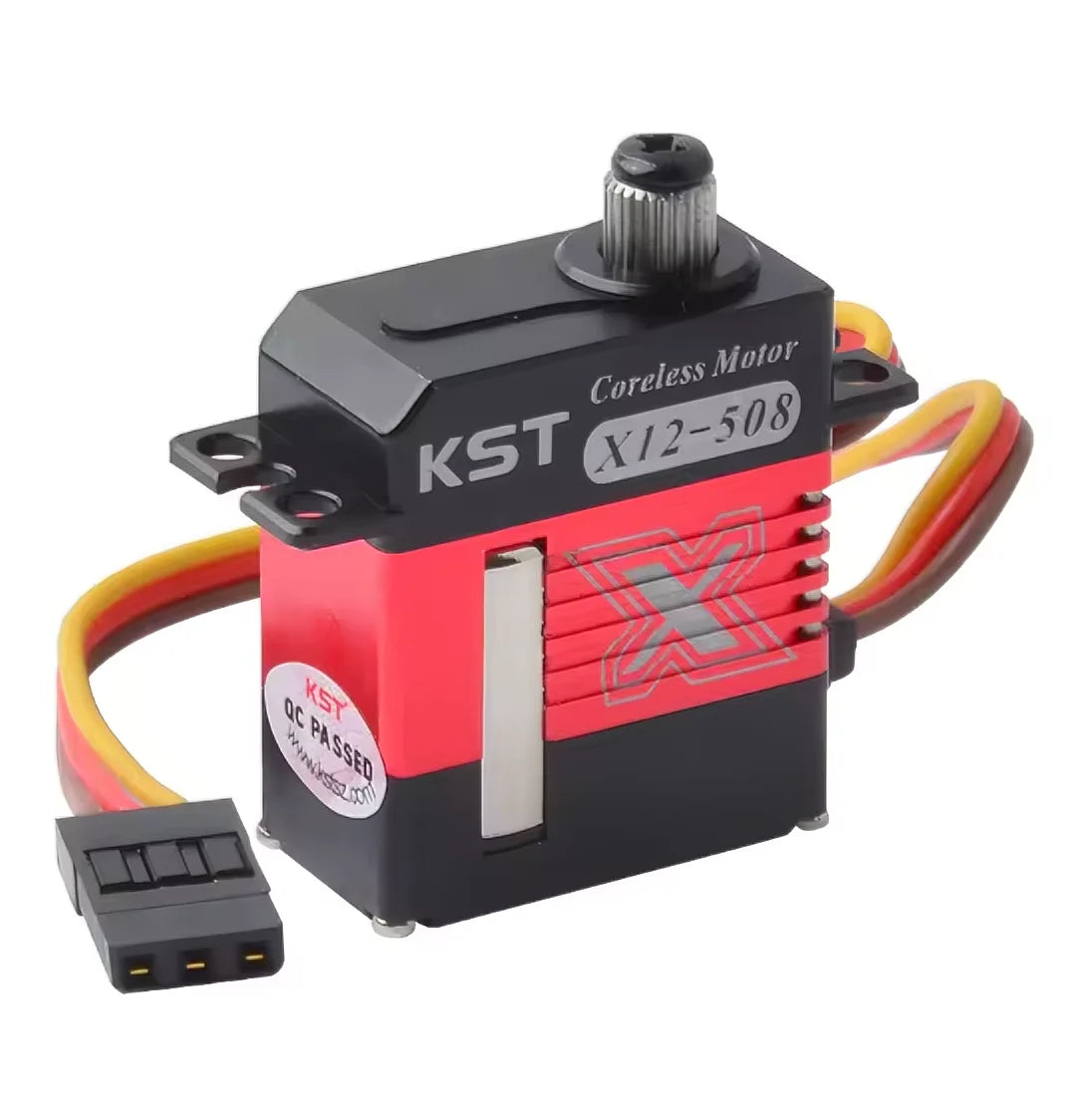

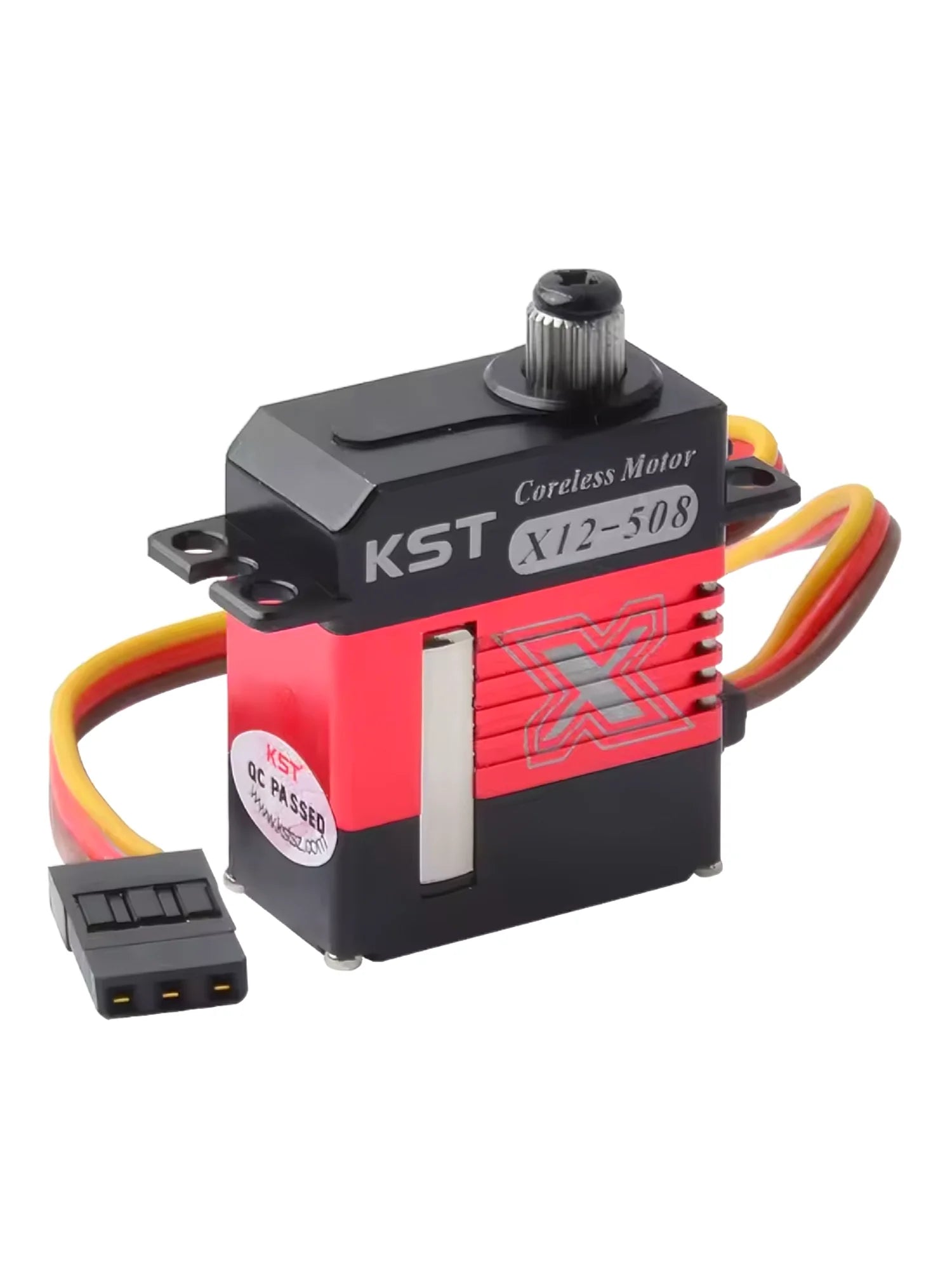

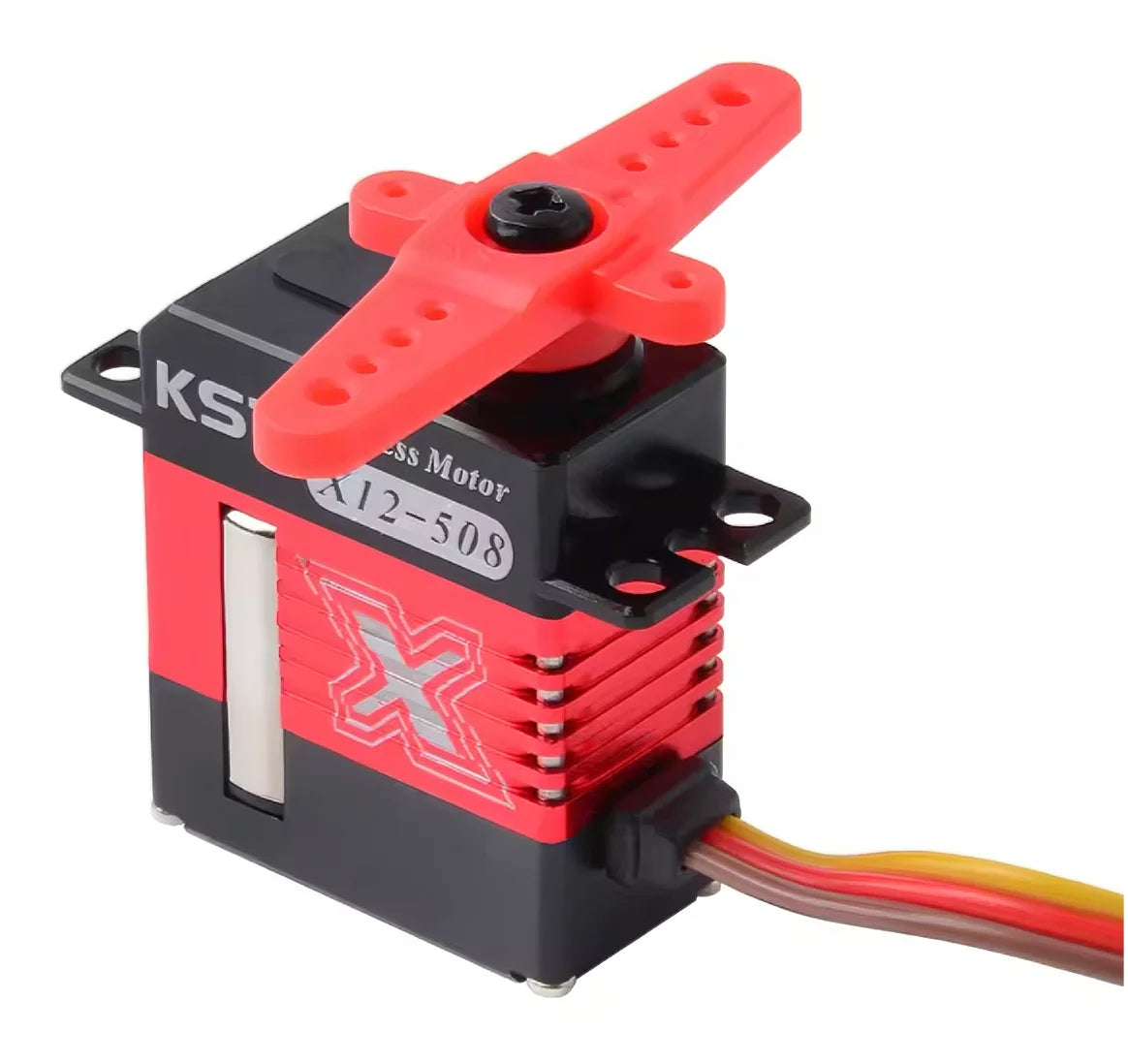

KST X12-508 Digital Micro Servo for RC Helicopters 6.2Kgf.cm Torque 0.07sec Response Time Metal Gear High Voltage HV
$78.89
Prix promotionnel
$78.89
Prix régulier
$0.00

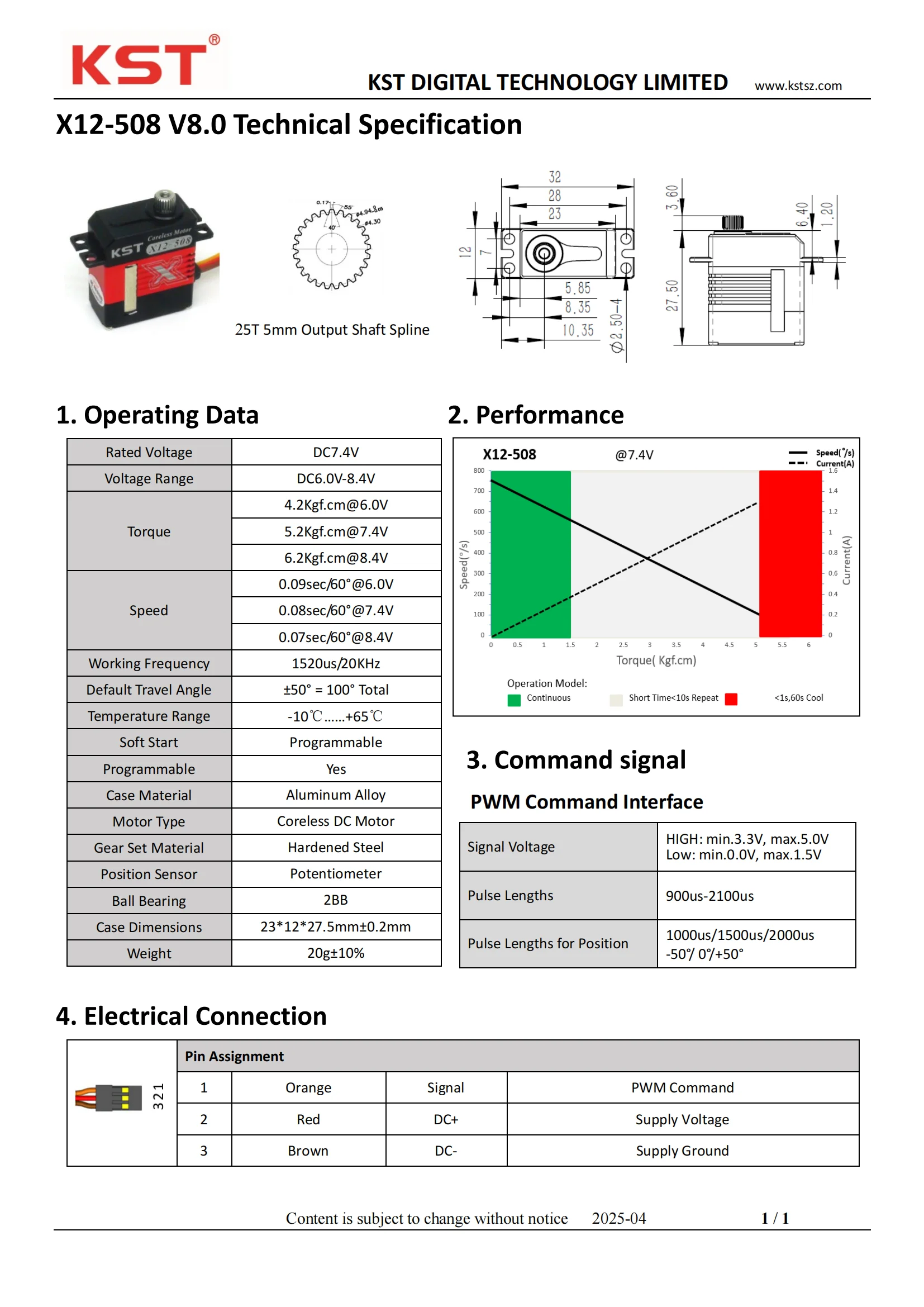

SPECIFICATIONS
Ball Bearing: 2BB
Brand Name: NONE
Case Dimensions: 23*12*27.5mm±0.2mm
Case Material: Aluminum Alloy
Compatible Brand/Model: None
Default Travel Angle: ±50° = 100° Total
Gear Set Material: Hardened Steel
High-concerned chemical: None
Model Number: X12-508
Motor Type: Coreless DC Motor
Origin: Mainland China
Position Sensor: Potentiometer
Programmable: Yes
Rated Voltage: DC7.4V
Soft Start: Programmable
Speed: 0.07sec/60°@8.4V
Temperature Range: -10℃--+65℃
Torque: 6.2Kgf.cm@8.4V
Voltage Range: DC6.0V-8.4V
Weight: 20g±10%
Working Frequency: 1520us/20KHz
Fast Response Time
With a lightning-fast response time of 0.07sec, this servo guarantees precise and immediate movements for your RC model.
Easy Replacement Part
As a replacement part, the KST X12-508 is easy to install, saving you time and effort in maintaining your RC helicopter.
High Torque Performance
The KST X12-508 offers a robust 6.2Kgf.cm torque, ensuring smooth and powerful control for your RC helicopter.
Safe Operation
Constructed without high-concerned chemicals, this servo ensures safe operation, prioritizing user health and environmental sustainability.
Versatile Compatibility
Designed for universal use, this servo is compatible with various RC helicopter models, making it a versatile choice for hobbyists and professionals alike.
