SPECIFICATIONS

Brand Name: NONE

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 4268-V2 4274-V2

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

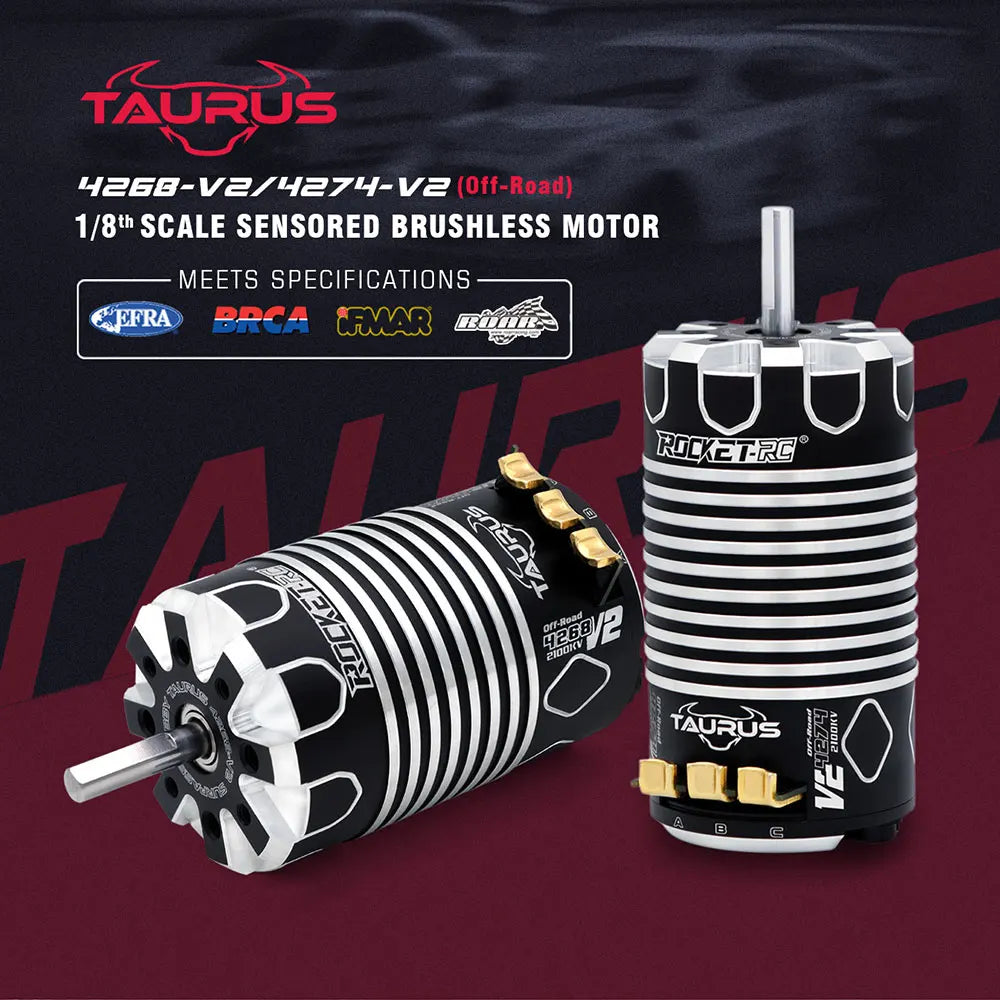

ROCKET-RC Sensored Brushless Motor 4274/4268 V2 Waterproof Dustproof 5.0mm Shaft for 1/8 Wltoys HSP Traxxas Arrma RC Off-Road Buggy Electric Monster Truck Racing Cars

FEATURES

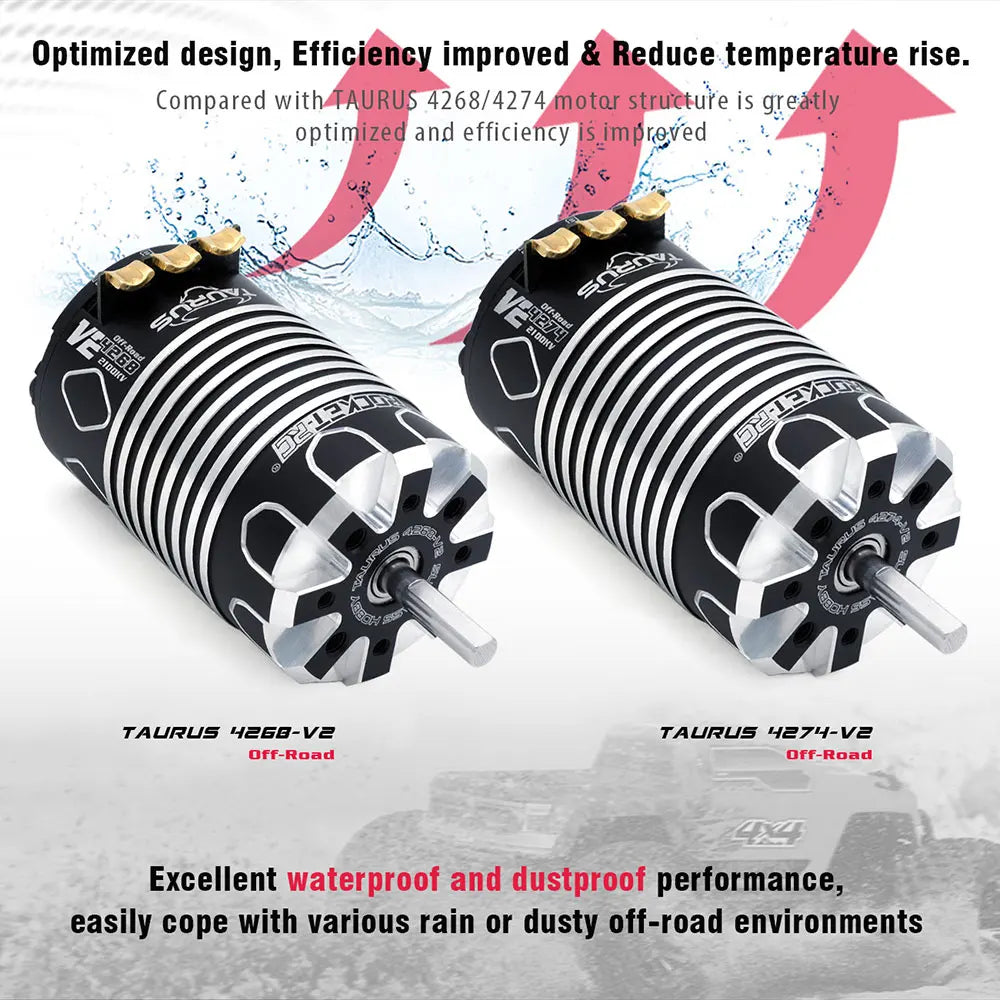

1. Optimized design, Efficiency improved & Reduce temperature rise.

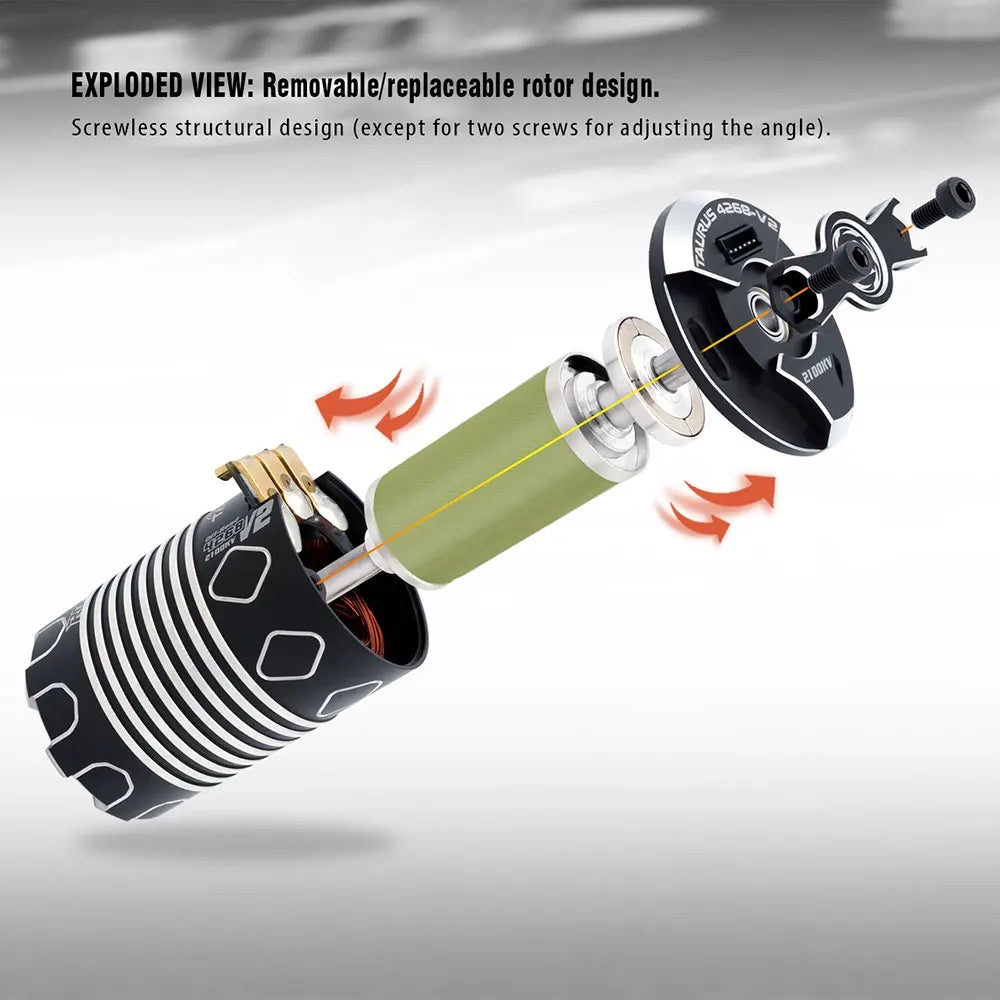

2. Screwless structural design (except for two screws for adjusting the angle).

3. Structure design of 4-pole 12-slot high-torque motor.

4. CNC 6061 T6 aluminum heat dissipation shell.

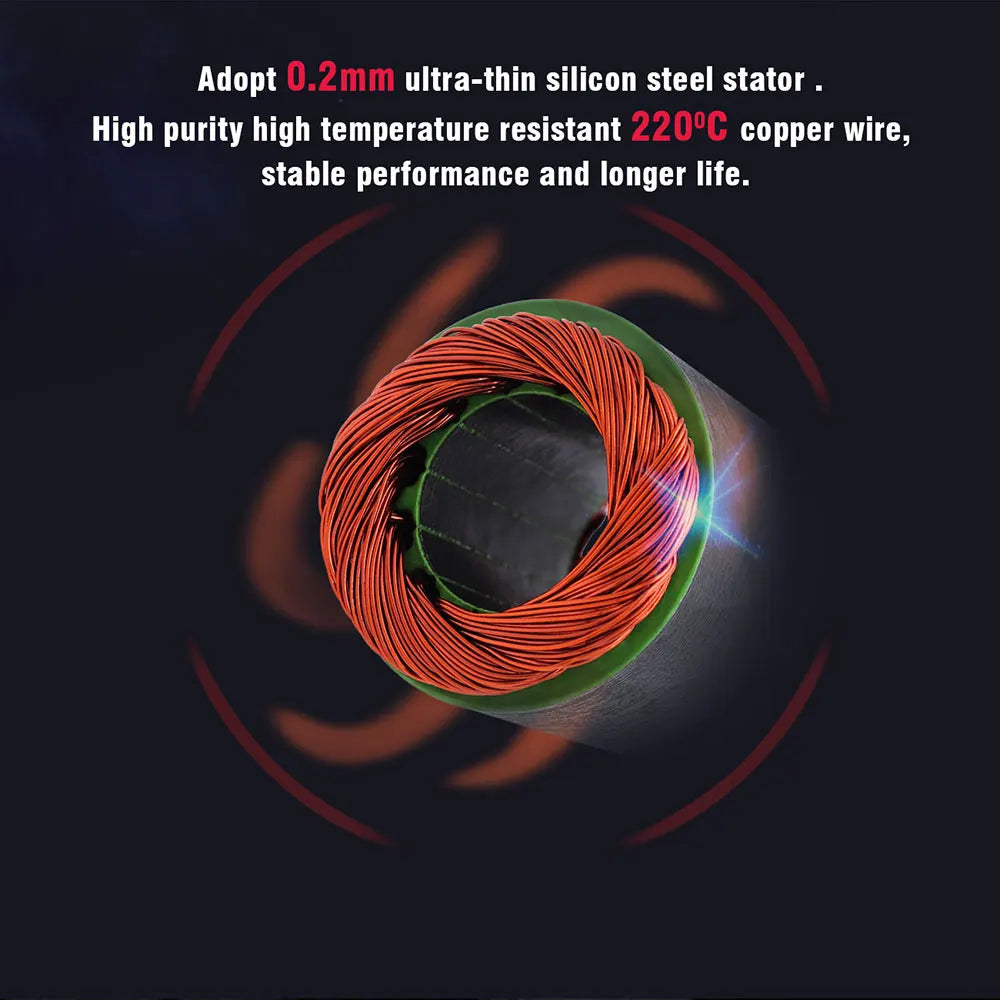

5. Adopt 0.2mm ultra-thin silicon steel stator and detachable/replaceable rotor design.

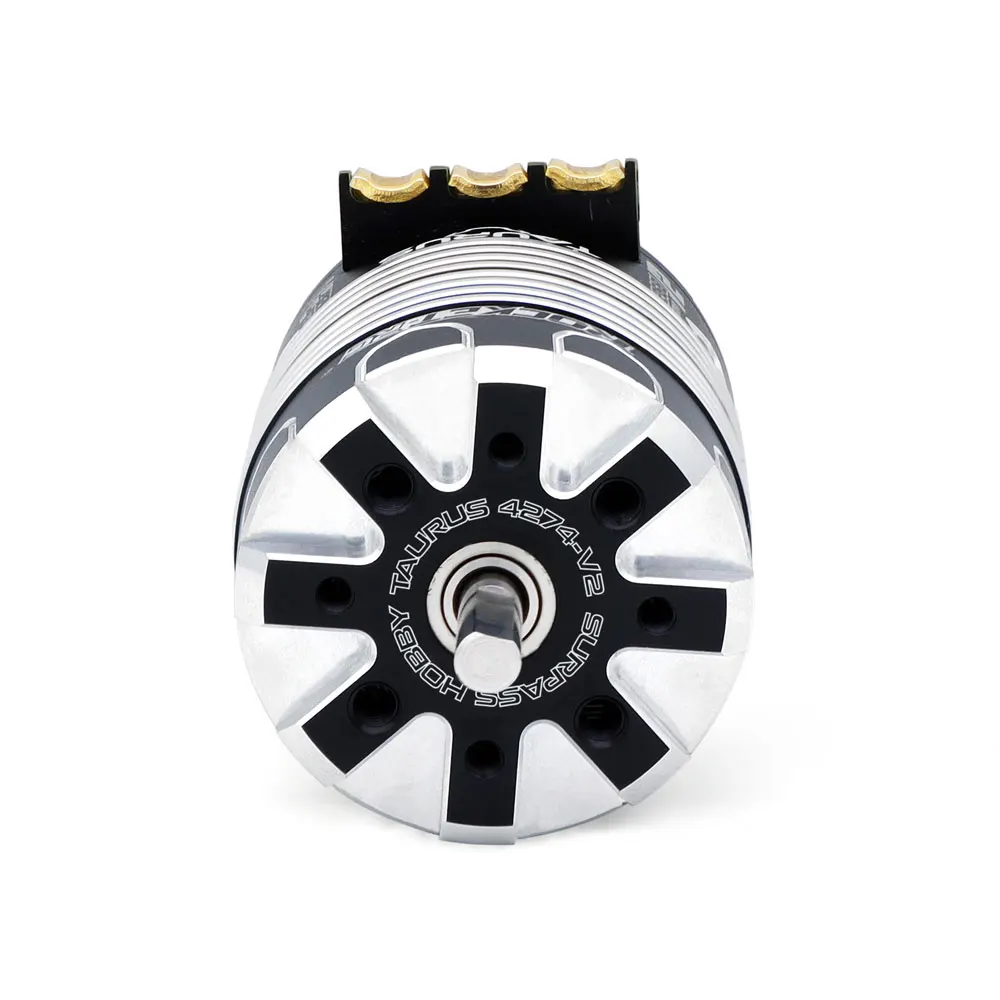

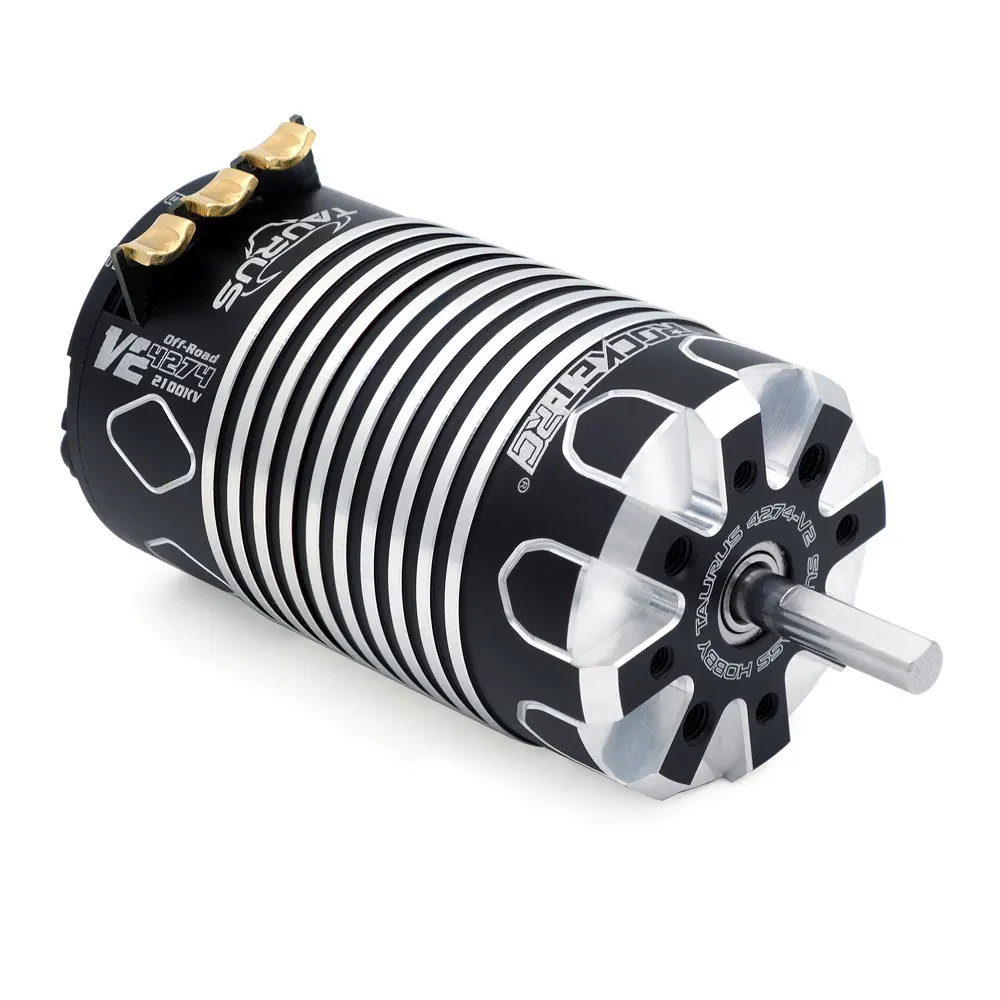

6. The front end cover uses 4 M3 and 4 M4 screw holes, suitable for various mounting bases.

7. NMB high-speed oversized bearings, smooth and wear-resistant.

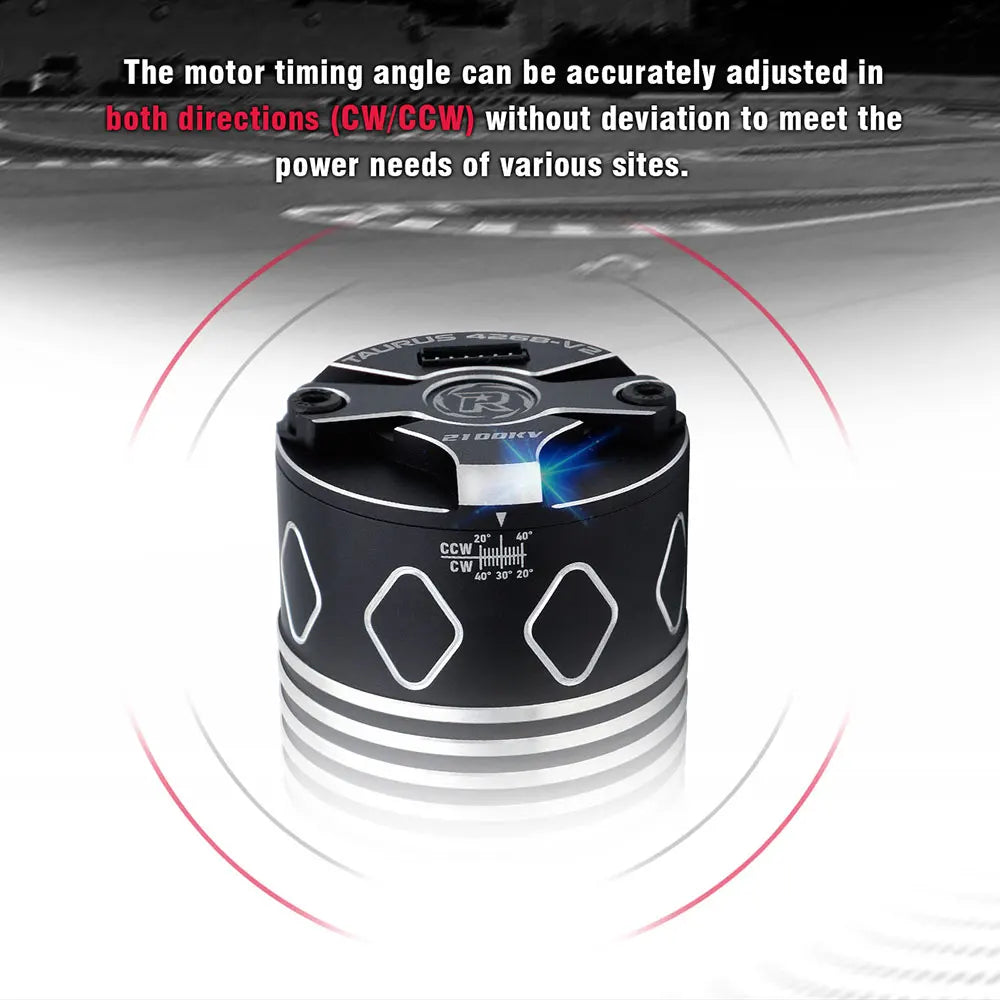

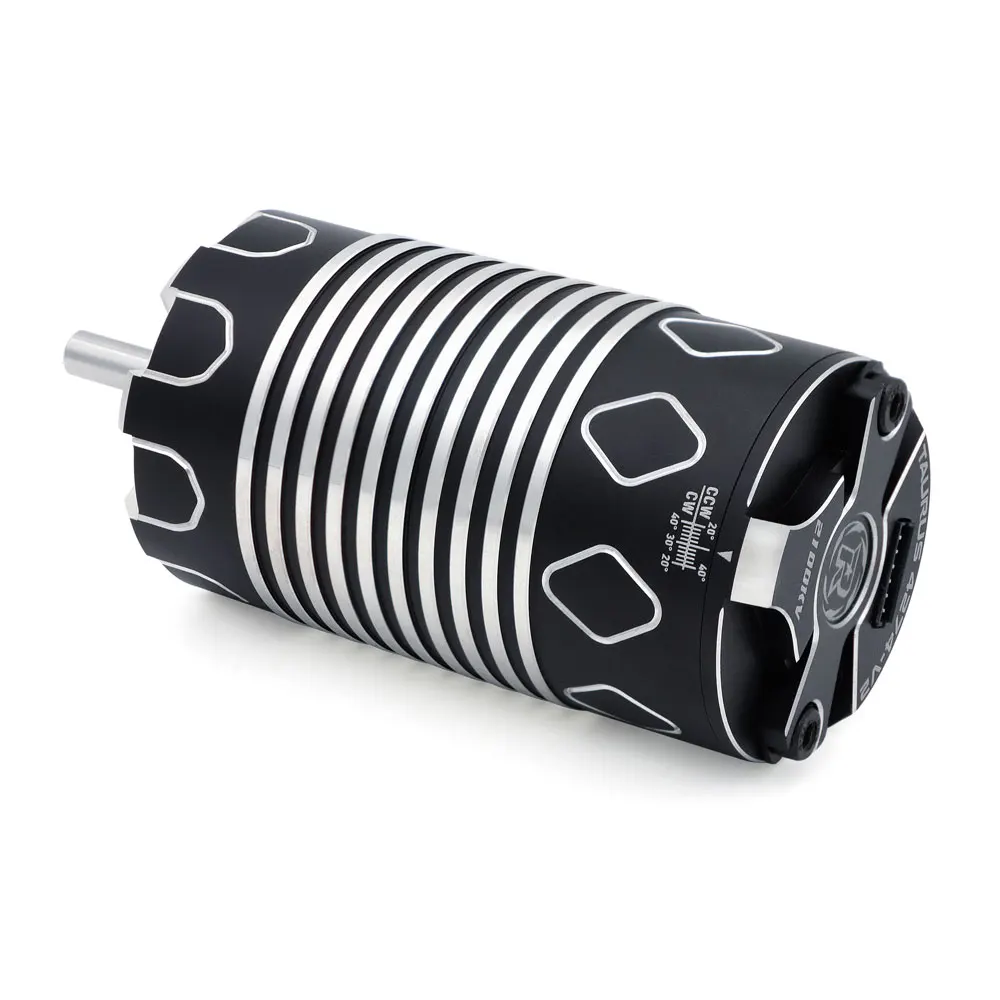

8. High purity high temperature resistant 220'C copper wire, stable performance and longer life.The motor timing angle can be accurately adiusted in both directions (CW/CcW) without deviation to meet thepower needs of various sites.

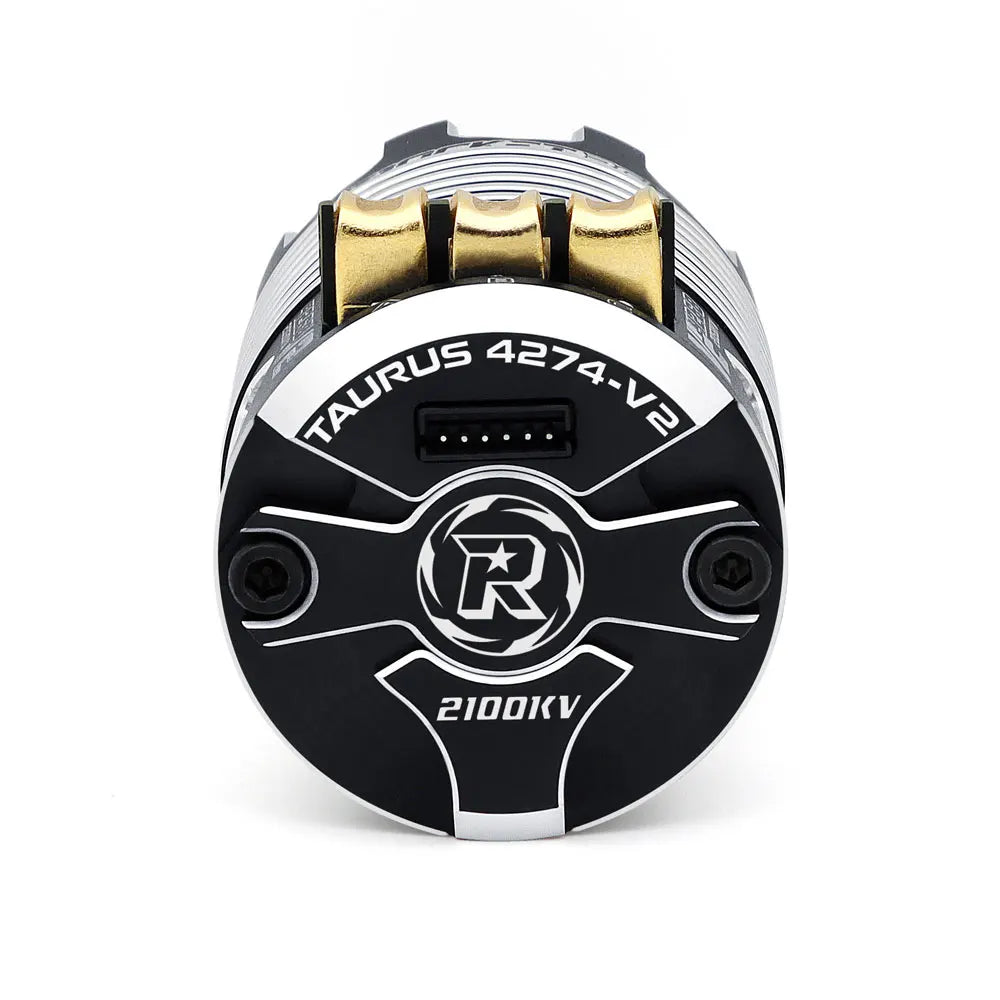

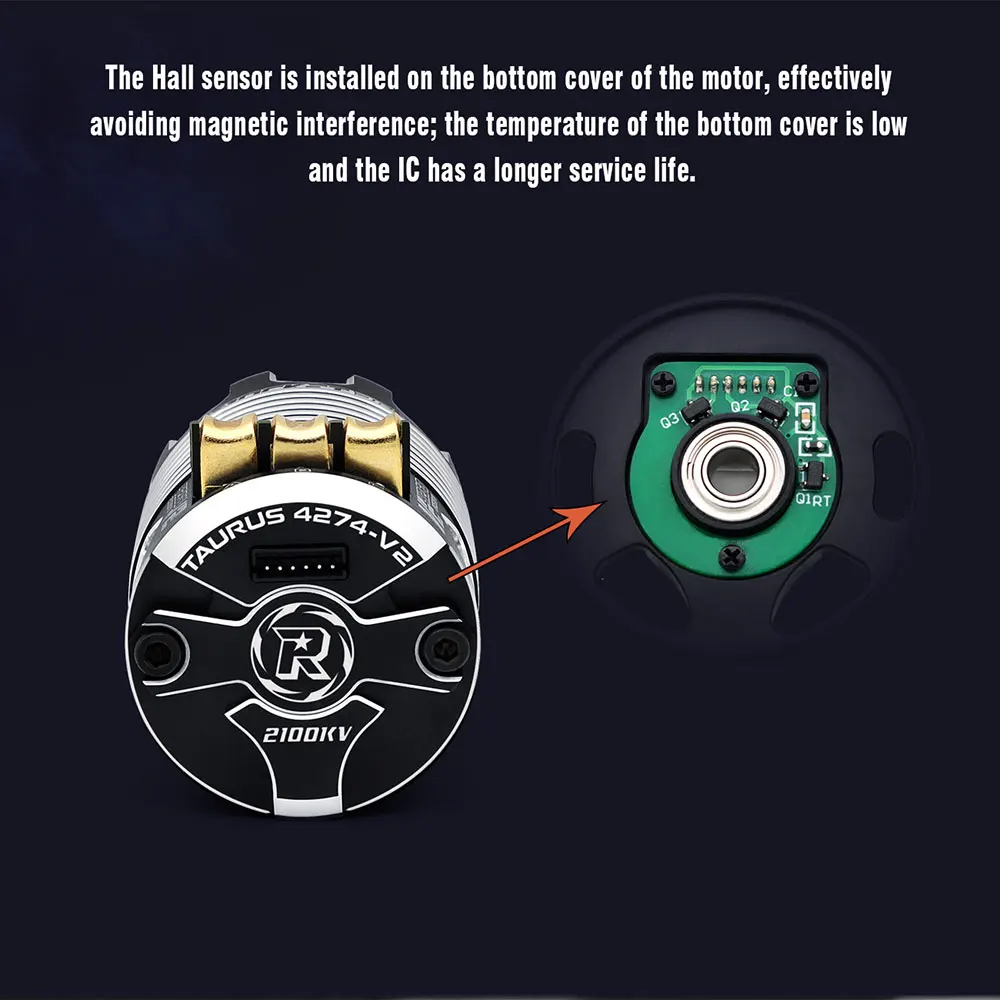

9. The Hall sensor is installed on the bottom cover of the motor, effectively avoiding magnetic interference; thetemperature of the bottom cover is low and thelC has a longer service life.

10. Precision Engineering for Maximum Energy Conversion.

11. Excellent waterproof and dustproof performance, easily cope with various rain or dusty off-road environments(Note:except On road version).

12. Suitable for 1/8th scale electric on-road RVs, off-road & trucks.

13. Comply with ROAR & IFMAR & BRCA & EFRA specifications.

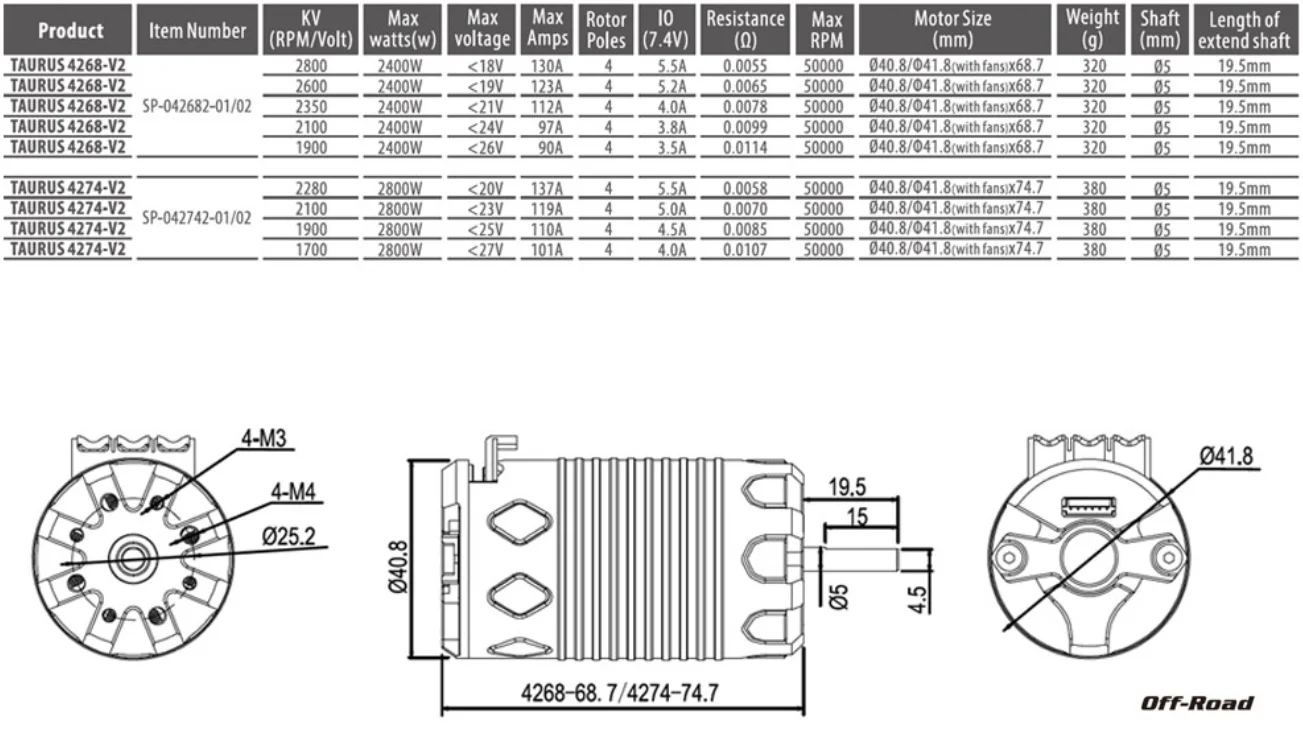

Specifications:

Brand: ROCKET-RC

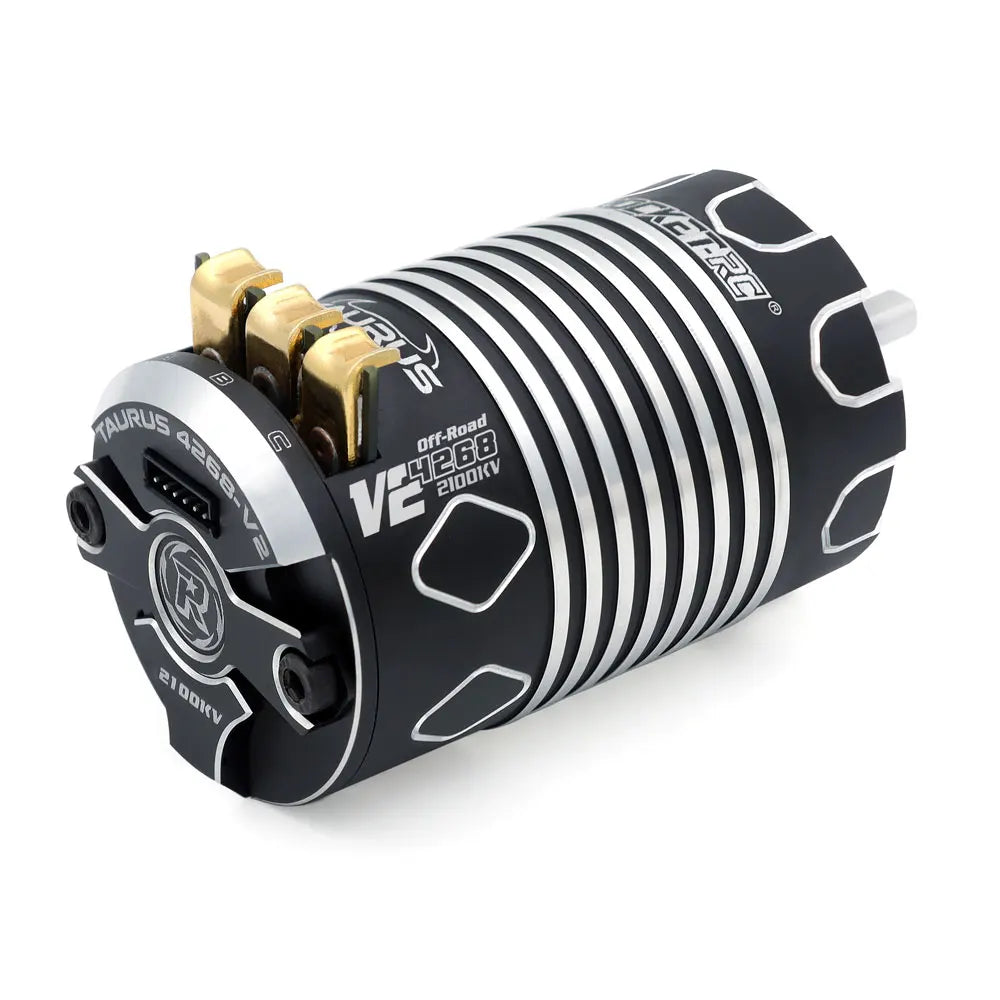

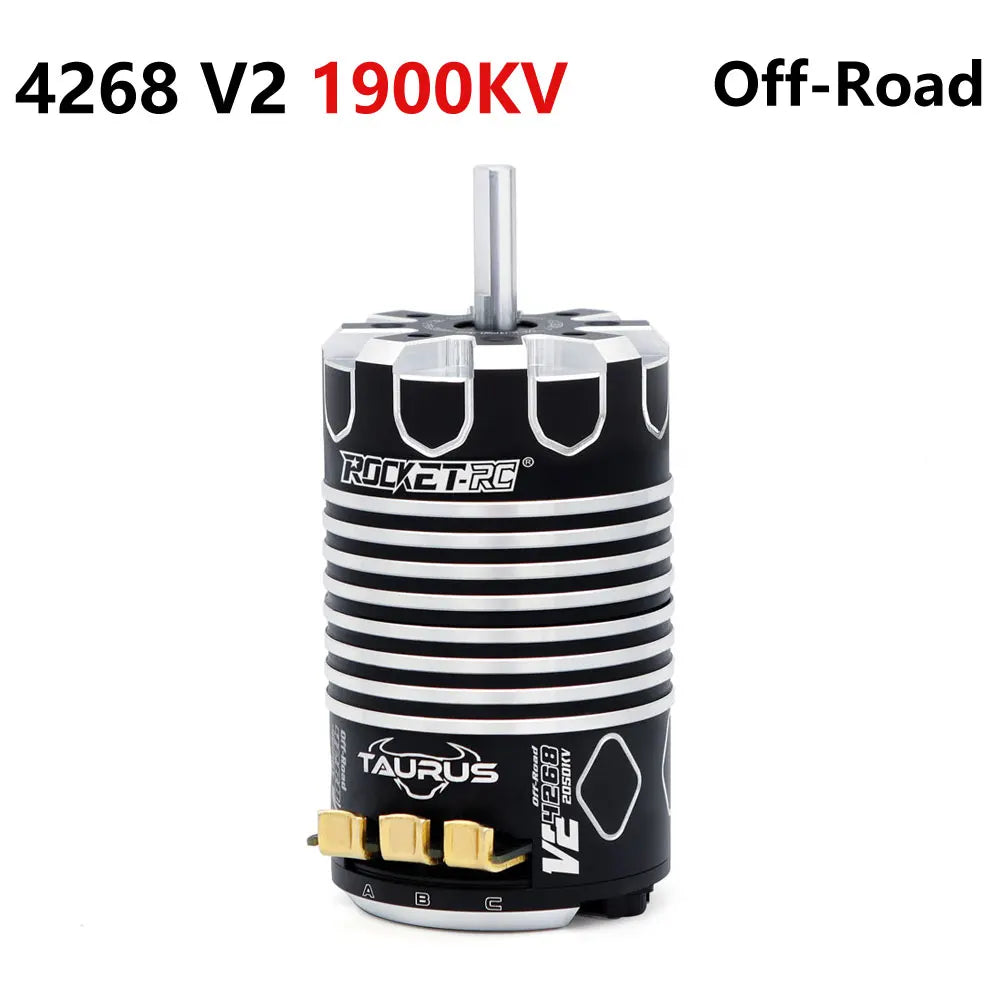

Name: TAURUS 4268-V2

KV(RPM/Volt): 2800KV/2600KV/2350KV/2100KV/1900KV

Watt: 2400W

Max RPM: 50000

Max voltage: <26V

Max amps: 130A

Rotor poles: 4

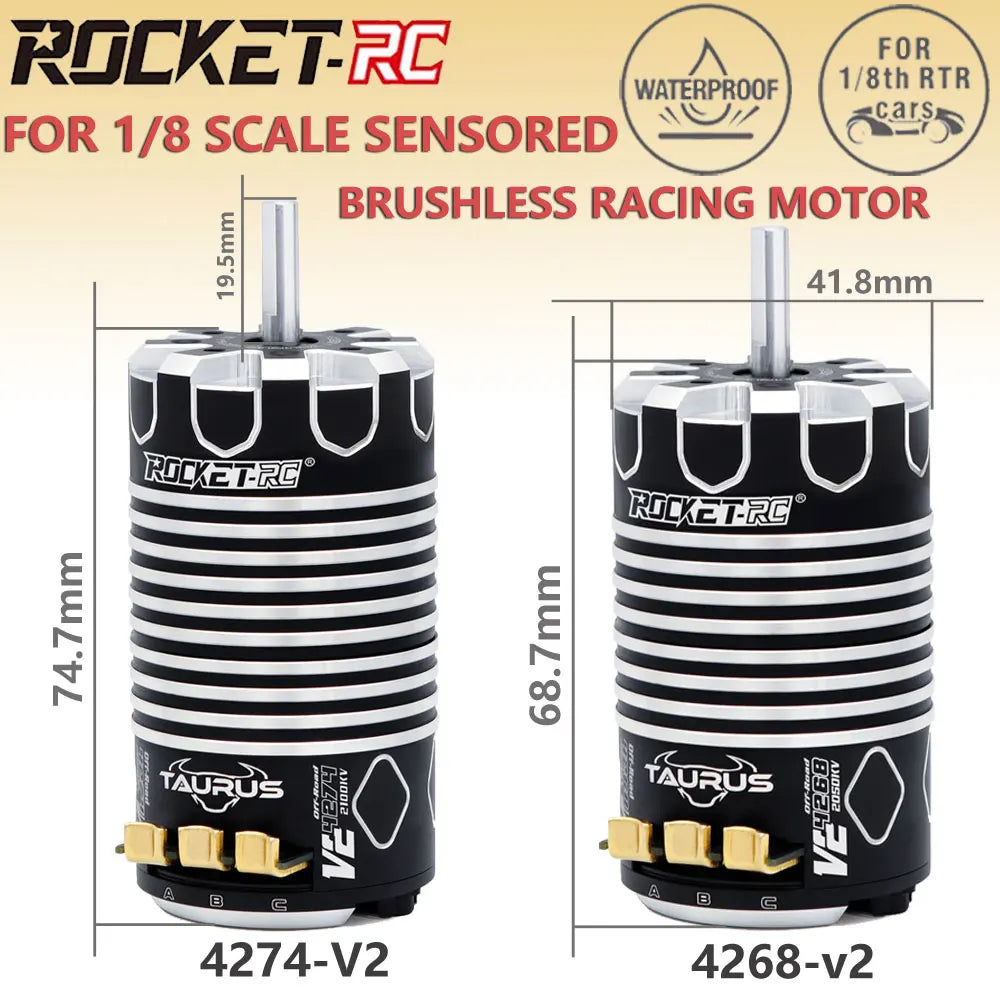

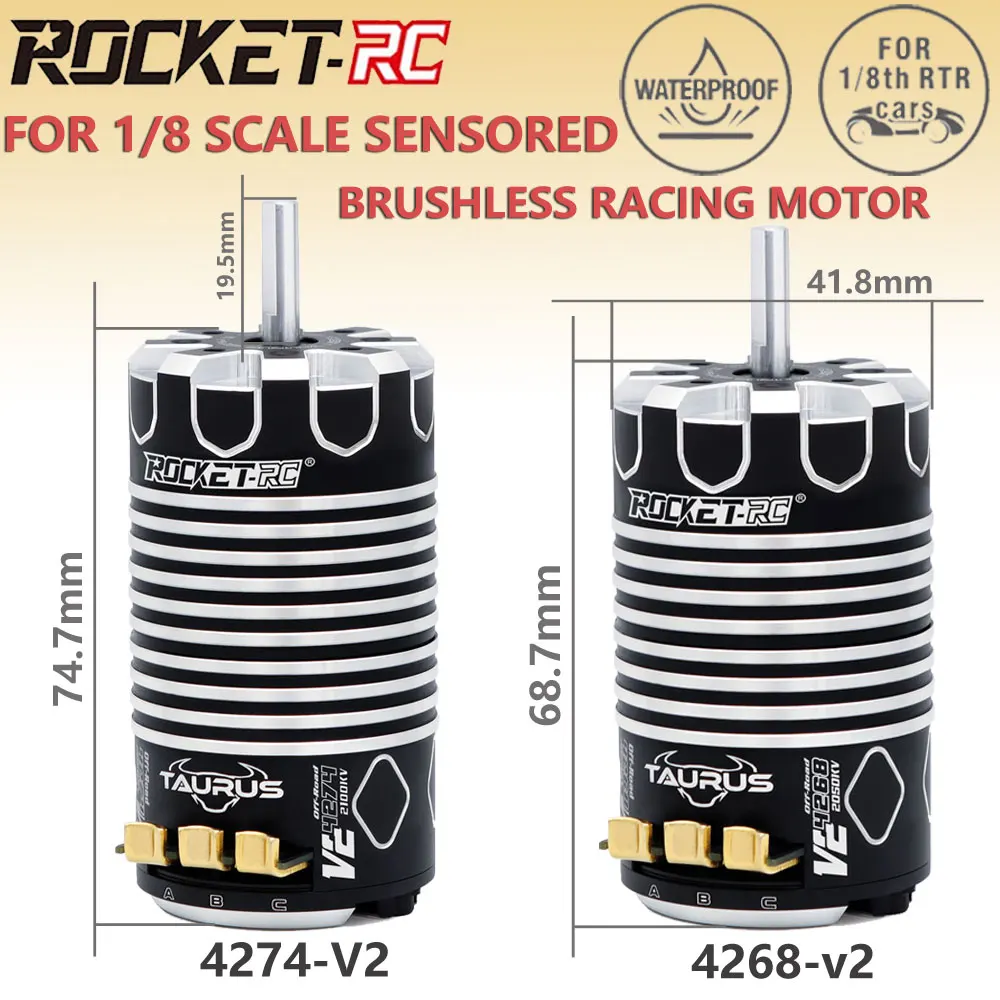

Diameter: 41.8mm

Length: 68.7mm

Shaft: 5.0mm

Shaft length: 19.5mm

Weight: 320g

Specifications:

Brand: ROCKET-RC

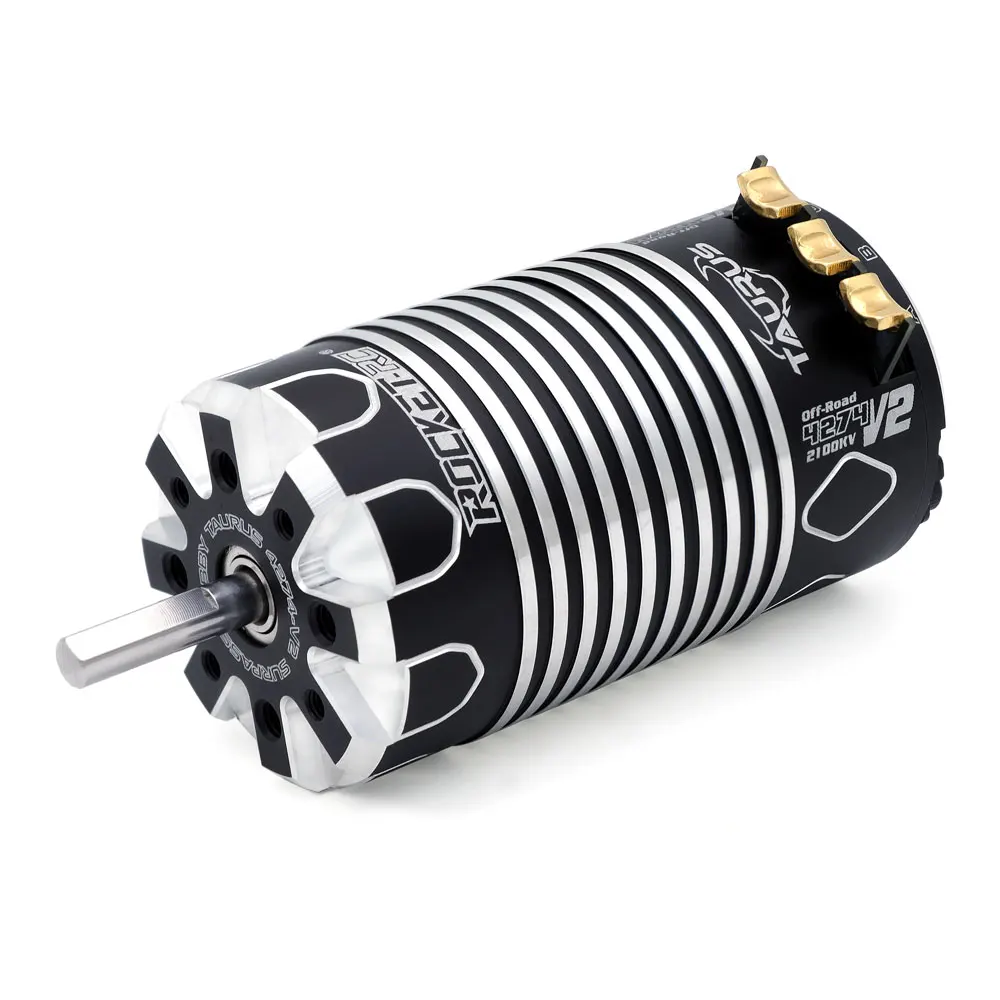

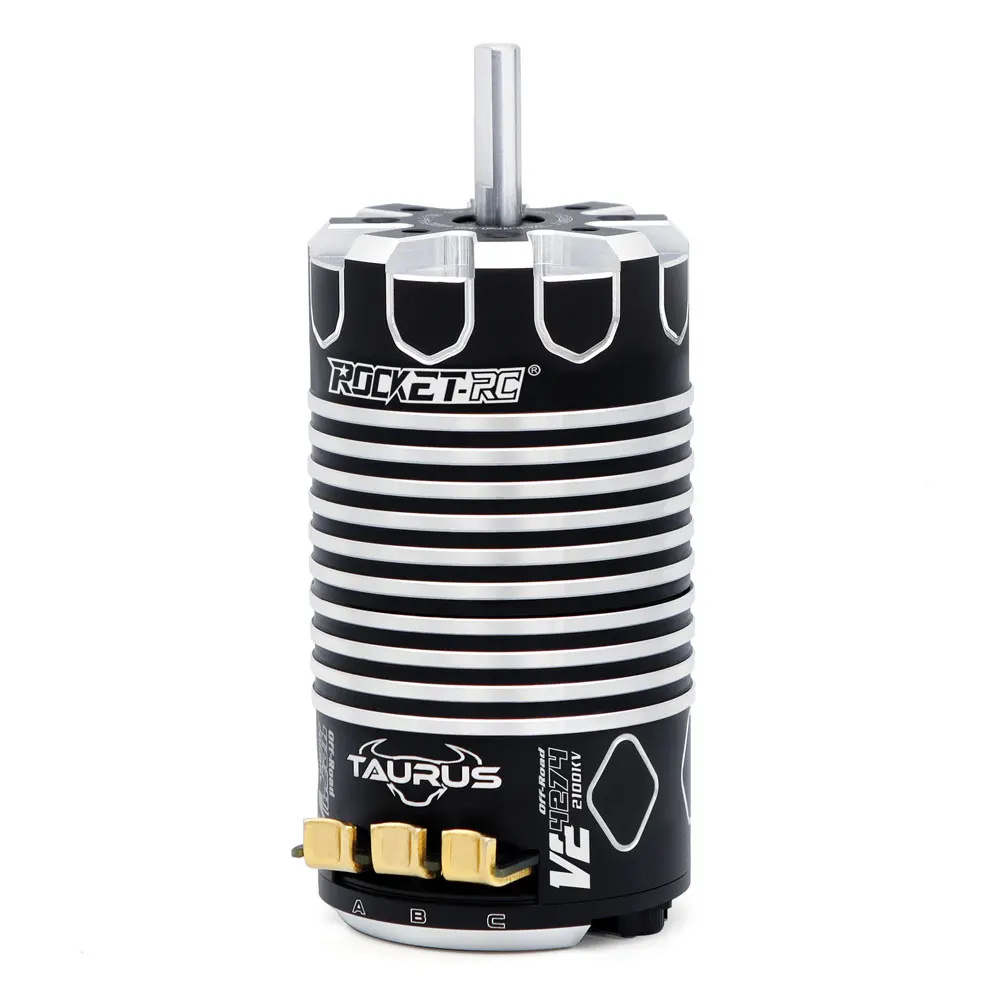

Name: TAURUS 4274-V2

KV(RPM/Volt): 2280KV/2100KV/1900KV/1700KV

Watt: 2800W

Max RPM: 50000

Max voltage: <27V

Max amps: 137A

Rotor poles: 4

Diameter: 41.8mm

Length: 74.7mm

Shaft: 5.0mm

Shaft length: 19.5mm

Weight: 380g

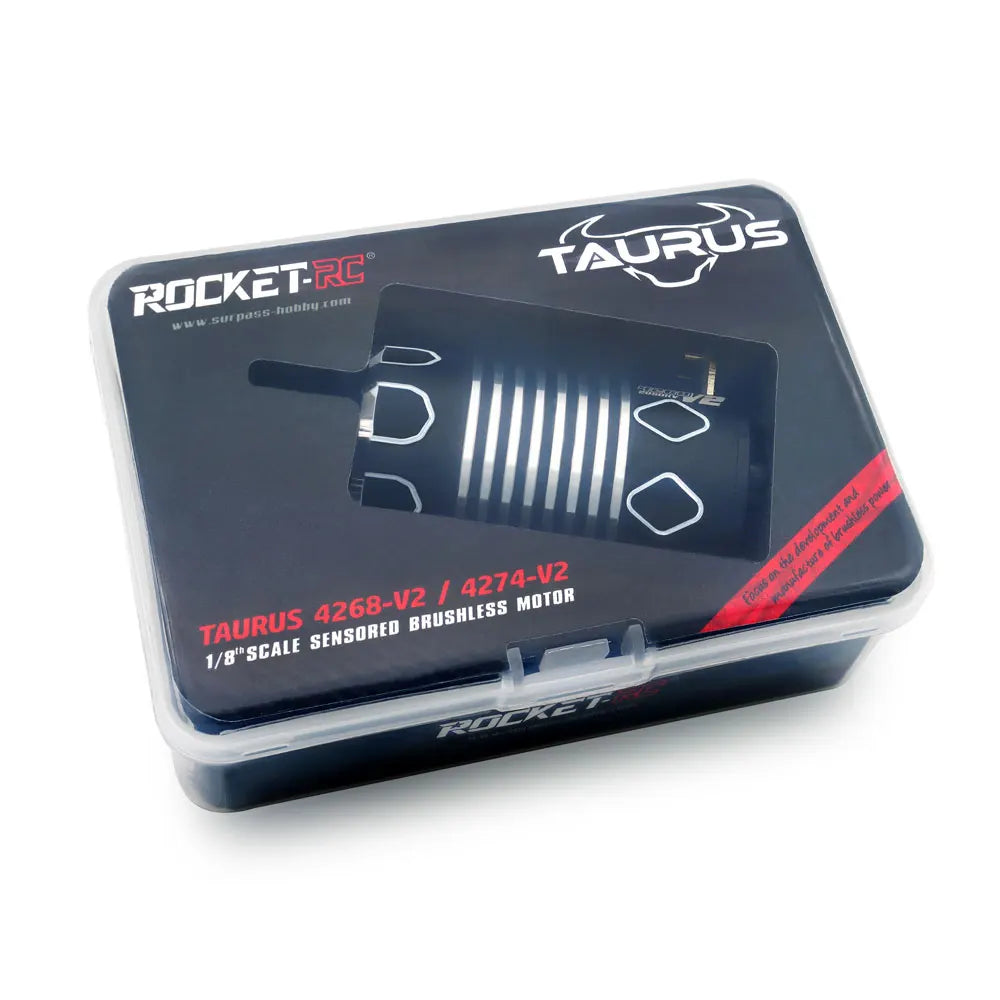

Package Included:

1 x ROCKET-RC 4268/4274-V2（Off-Road） Sensored Brushless Motor

1 x English Manual

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
