SPECIFICATIONS

Brand Name: YSIDO

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Motors

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 3650

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

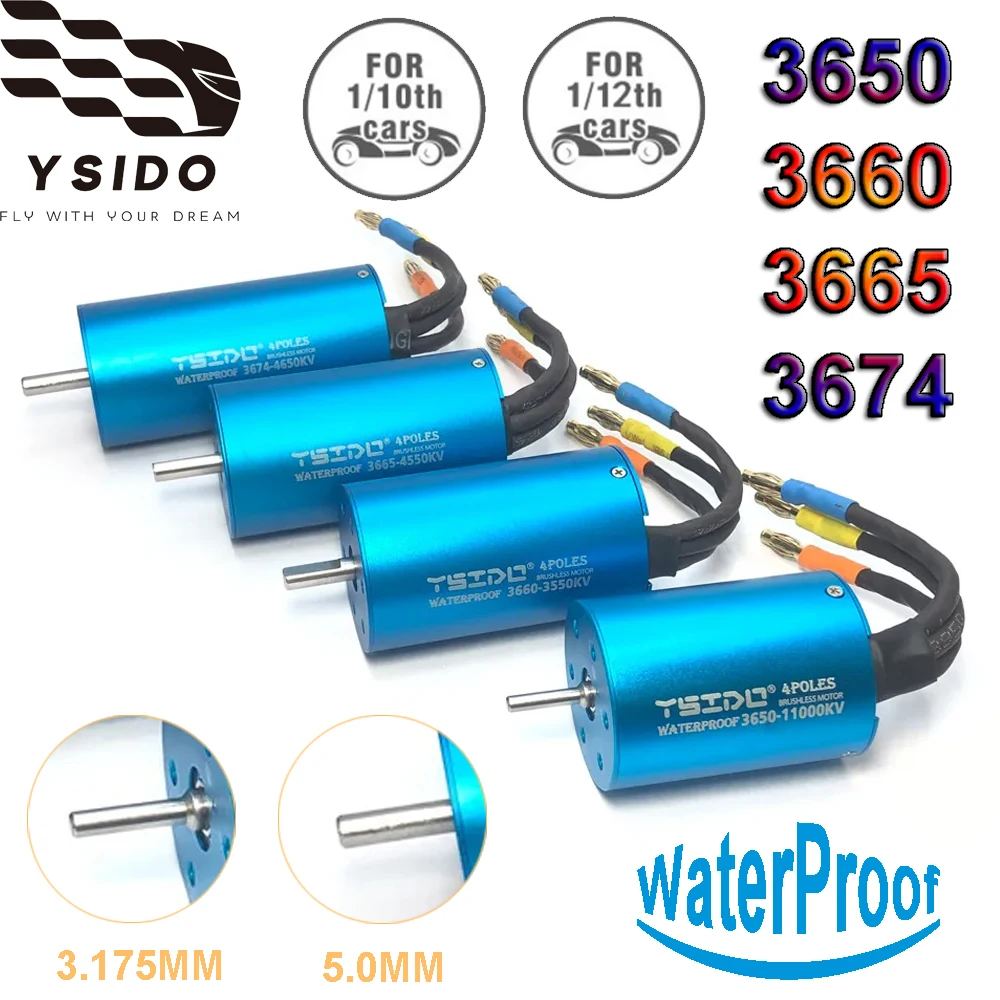

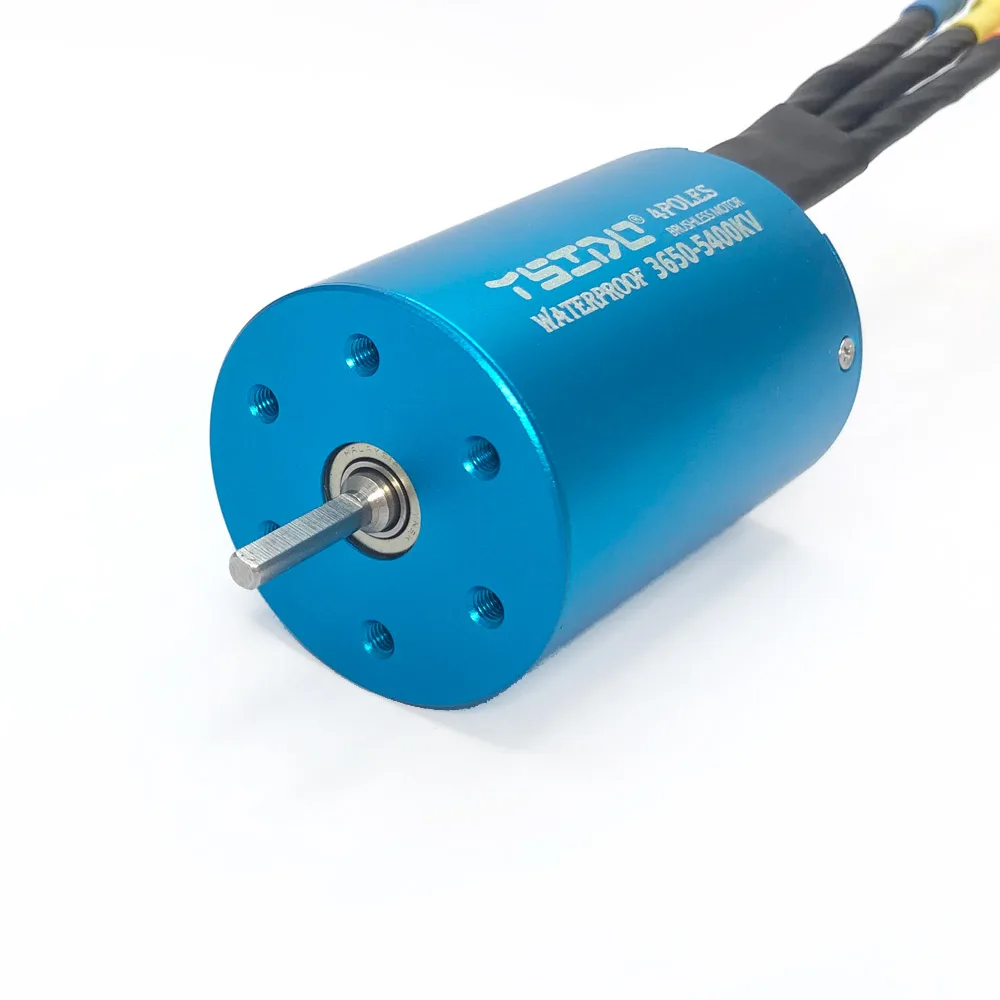

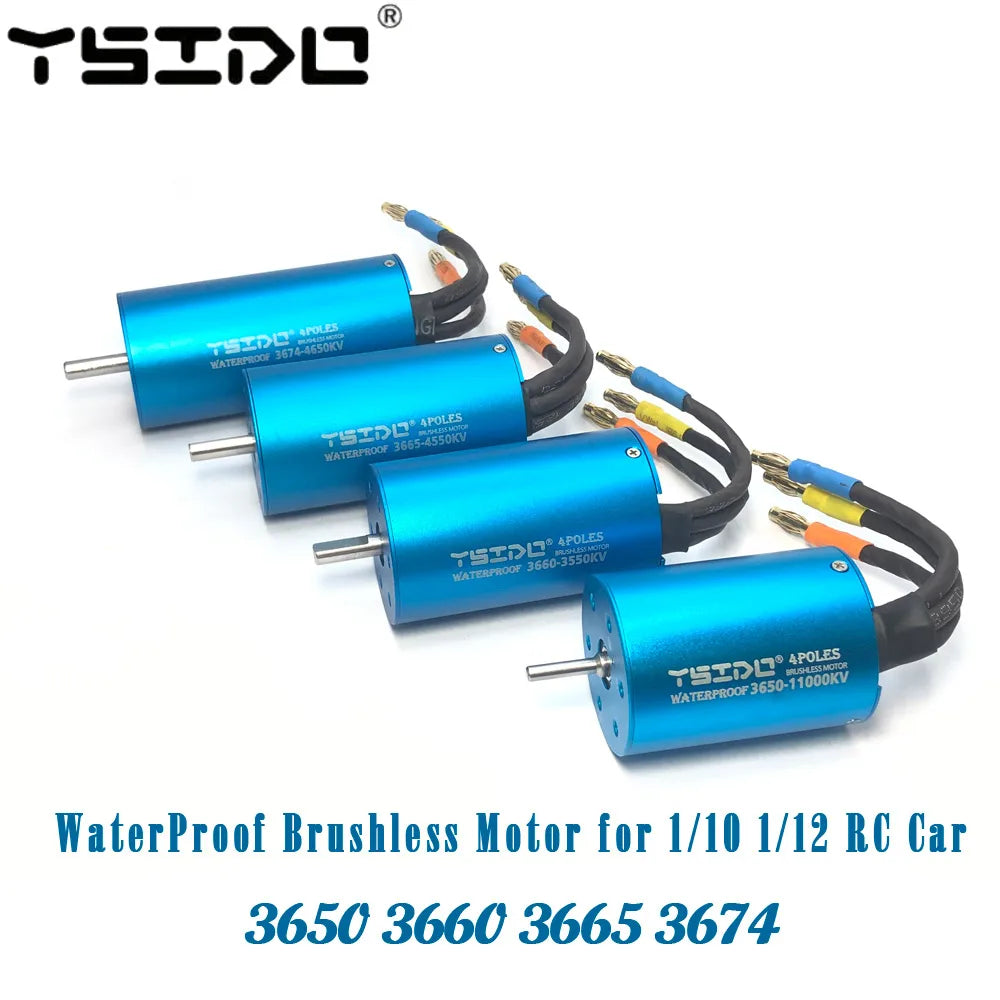

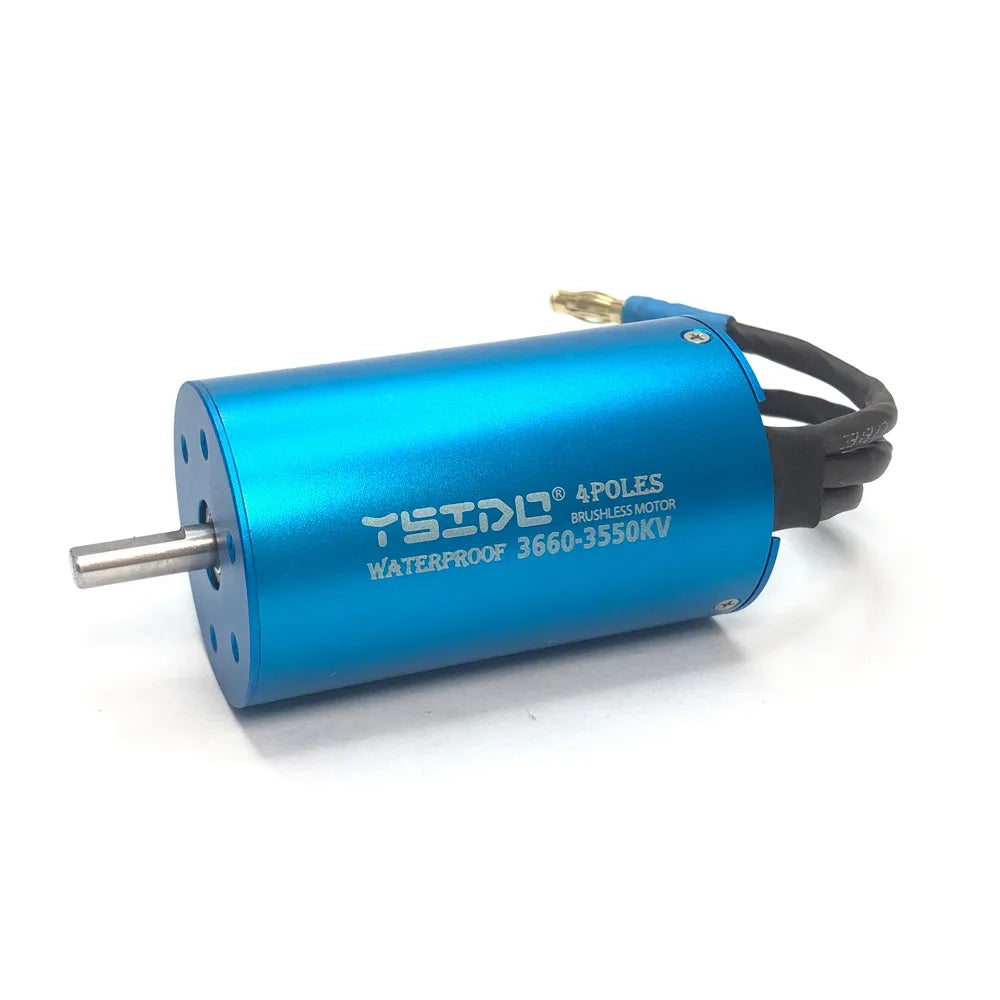

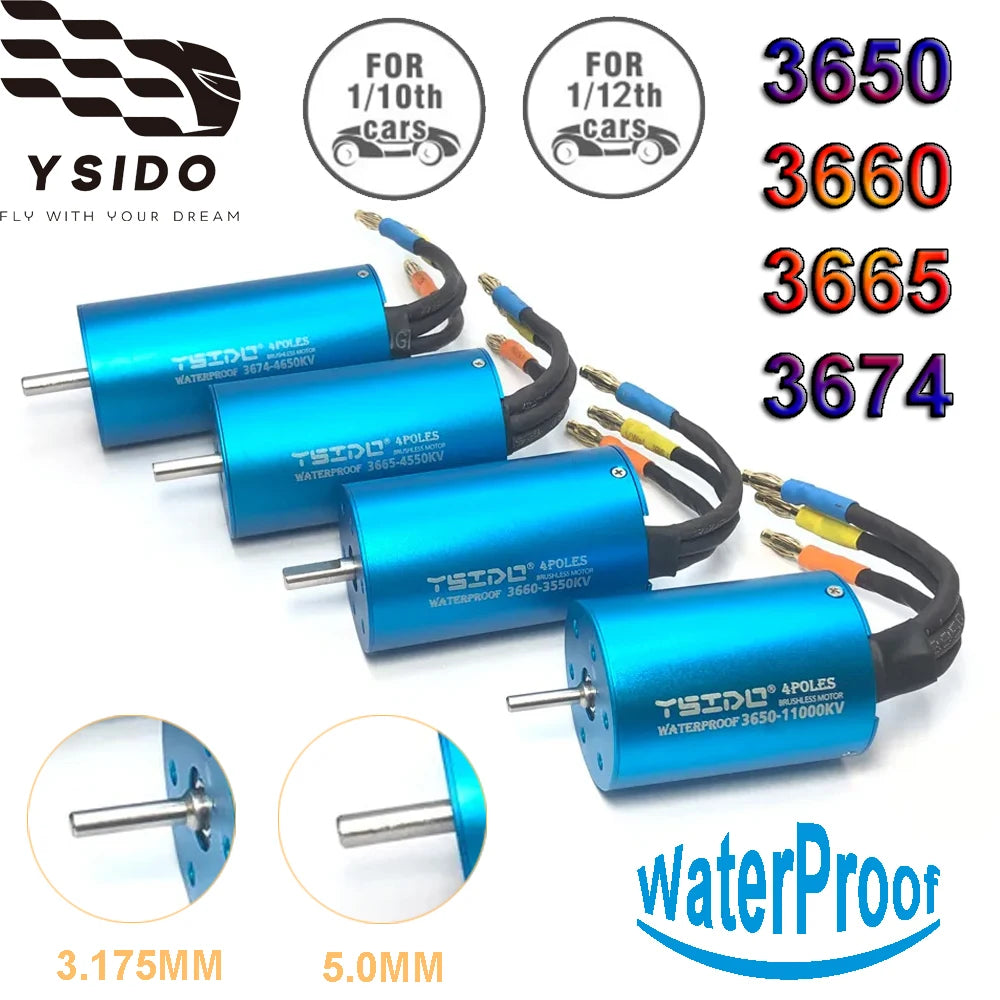

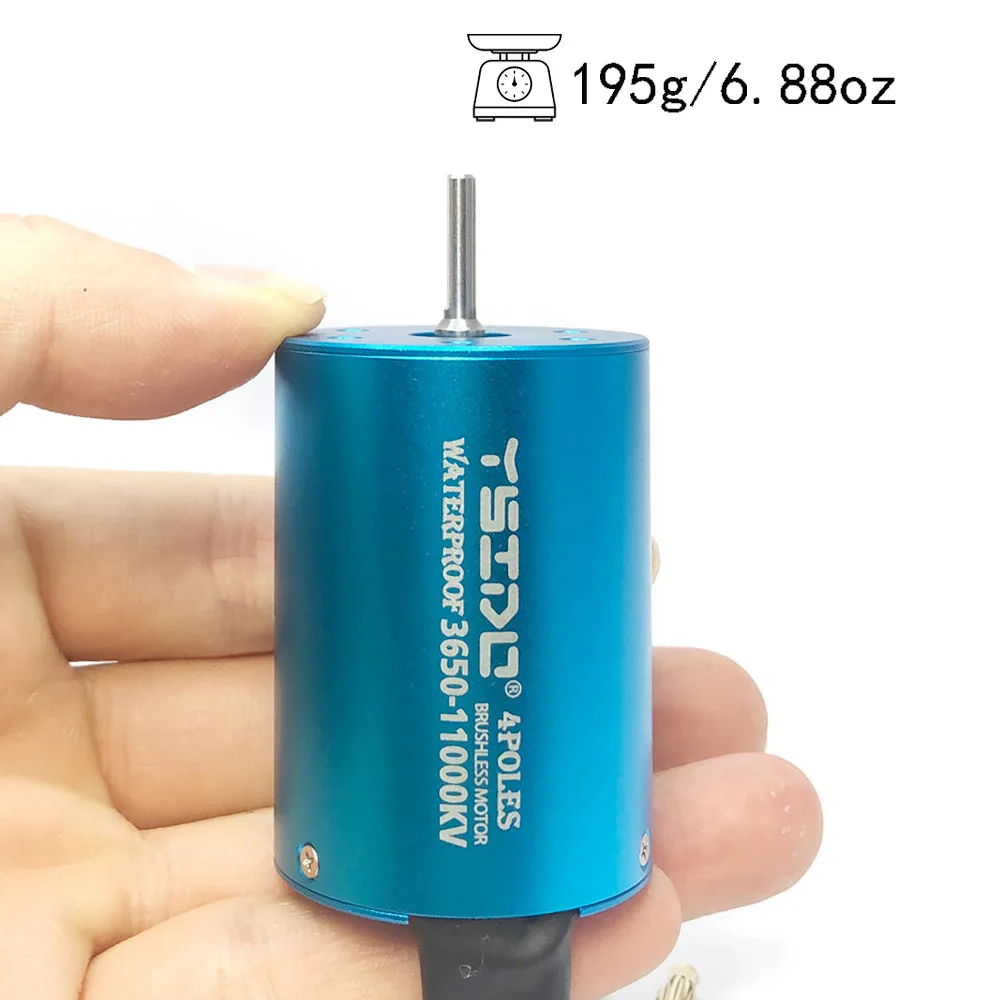

YSIDO 3650 3660 3665 3674 4500KV 5400KV Brushless Motor WaterProof for 1/10 1/12 Traxxas HSP RedCat Tamiya SCX10 RC Crawler Cars

Features:

4 Pole 12 Slot Hi-torque Motor Design

High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings

Universal fit, for 1:10 2S RC car , 3S RC racing car

Precision balanced rotor,smoothness for best reliability and maximum RPM

Stator - Super Thin (0.35mm) Laminations

Specifications:

Brand: YSIDO

Name: 3650 RC Motor

Rotor poles: 4

Watt: 1200W

Max RPM: 50000

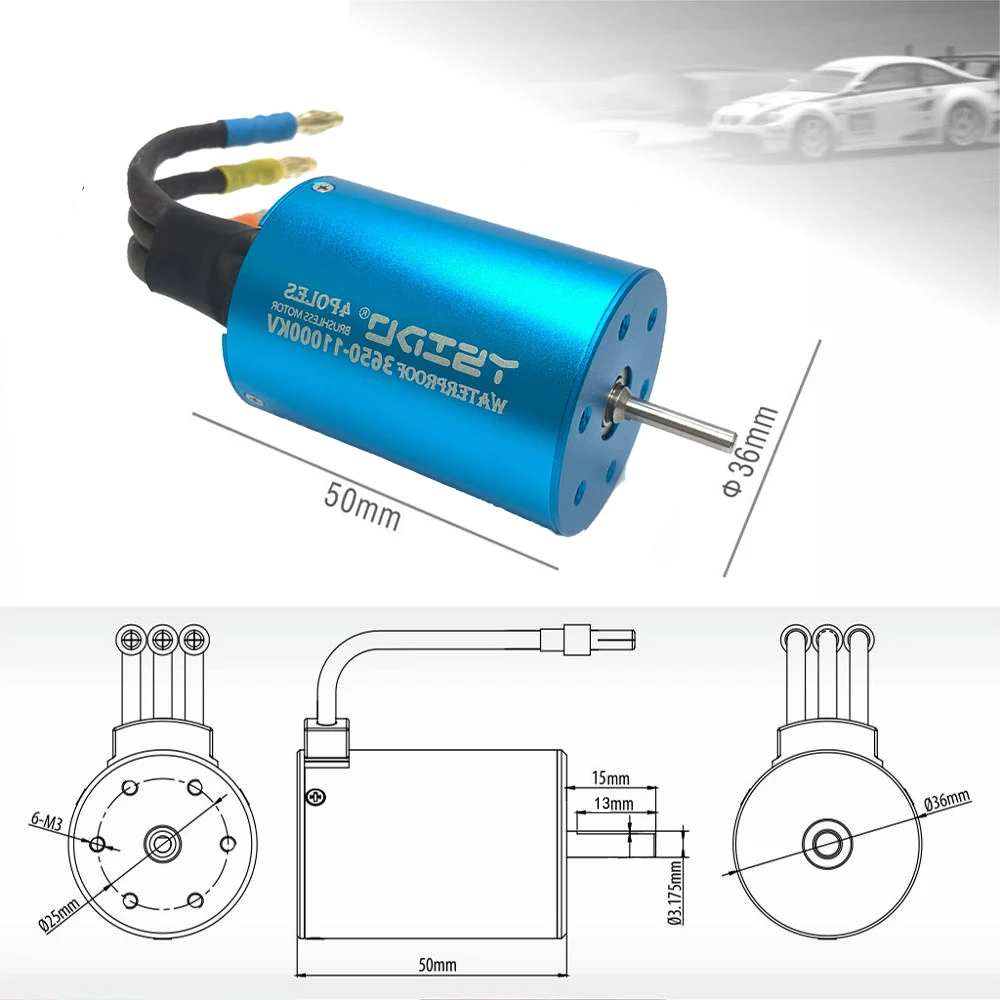

Diameter: 36mm

Length: 50mm

Shaft length: 15mm

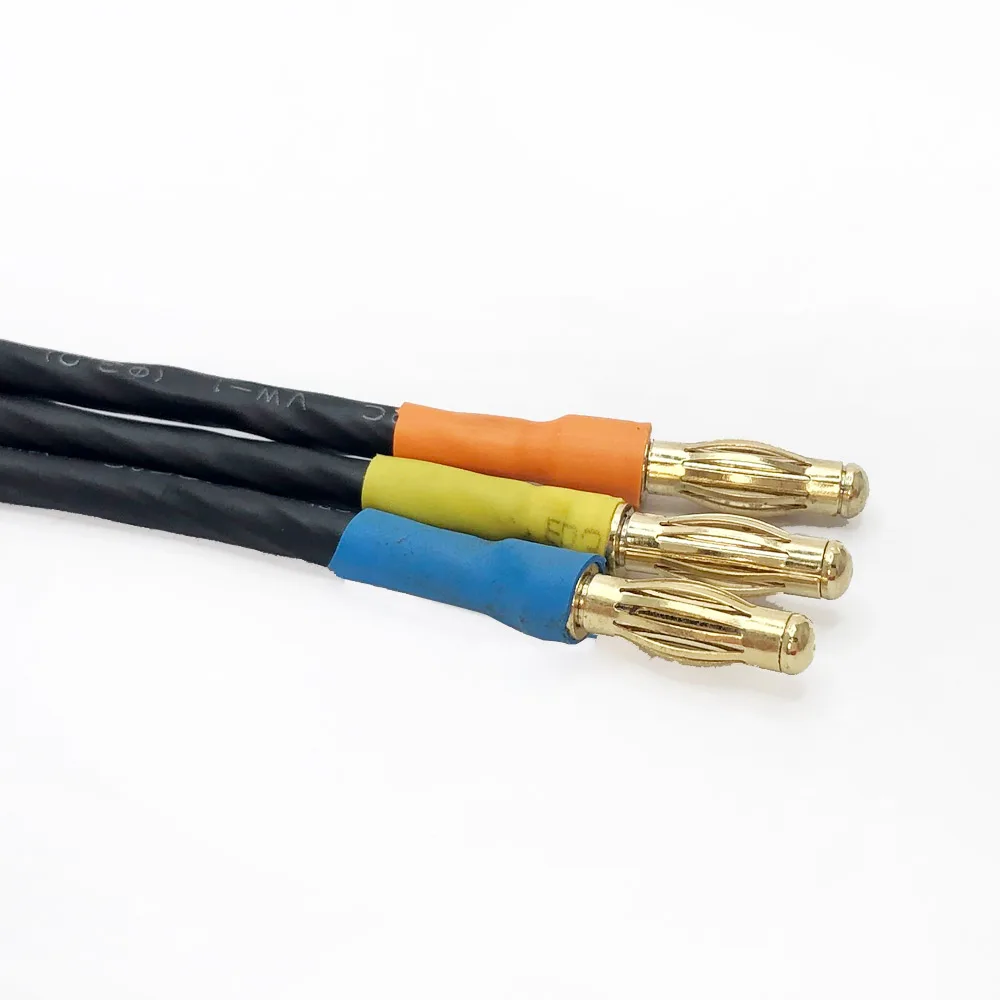

Connector: 4.0mm gold

Weight: 180g

Motor Shaft: 3.175mm

KV(RPM/Volt): 1850KV

Max voltage: <27V

Max amps: 44A

KV(RPM/Volt): 3600KV

Max voltage: <14V

Max amps: 69A

KV(RPM/Volt): 4500KV

Max voltage: <11V

Max amps: 80A

KV(RPM/Volt): 5400KV

Max voltage: <9V

Max amps: 110A

KV(RPM/Volt): 7500KV

Max voltage: <8.4V

Max amps: 100A

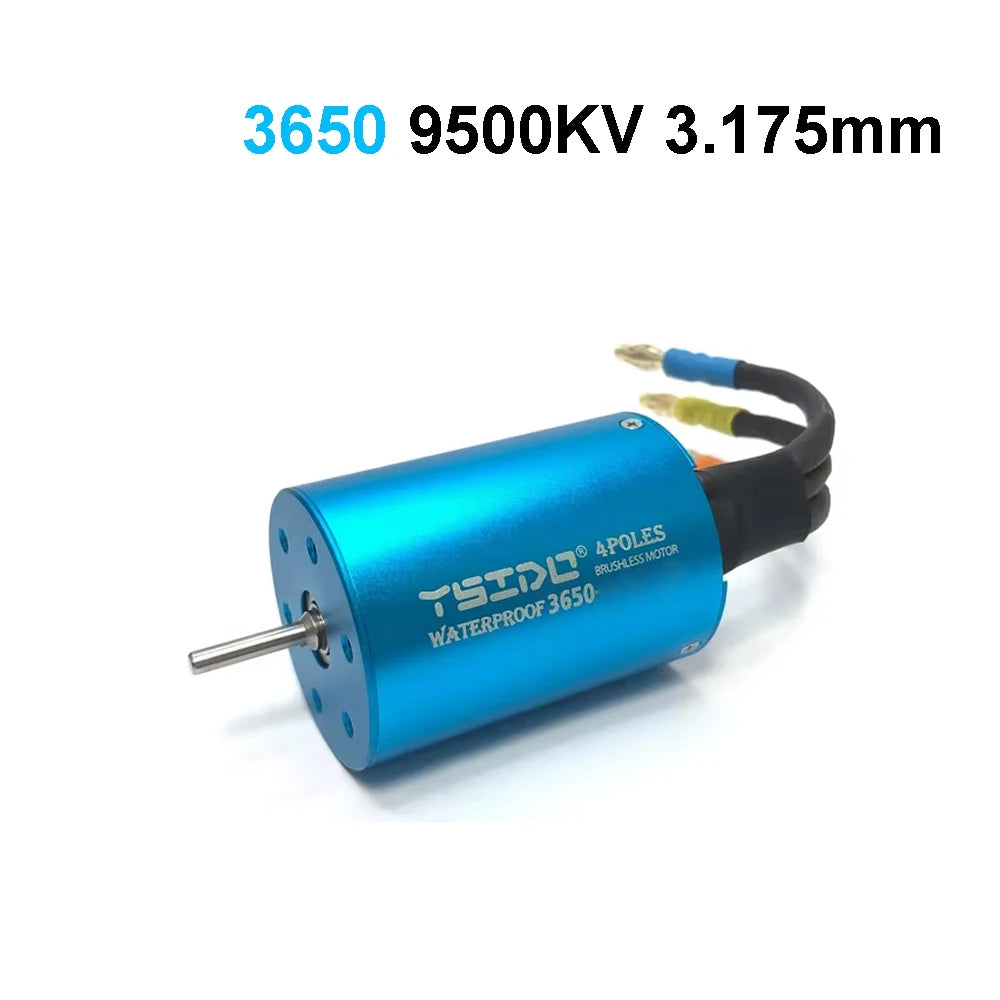

KV(RPM/Volt): 9500KV

Max voltage: <8.4V

Max amps: 100A

KV(RPM/Volt): 11000KV

Max voltage: <8.4V

Max amps: 90A

Package Information:

Package size: 110 x 70 x 42mm/4.33 x 2.76 x 1.65in

Package weight: 202g/7.12oz

General Box Package
